Vehicle Exploded View - APRILIA SR 150 SR MT 150 HE Carburatore 2019 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

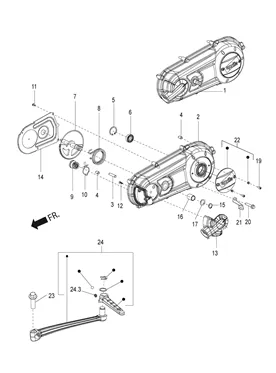

Moteur : 01.03 COUVERCLE TRANSMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/930/SR_MT_150_HE_Carburatore_2019_(EMEA)_01.03.png)
1 |
SP1A005841-COVER TRANSMISSION More informationQuantity required : 1 |
||||||
|
2 |
1A017434-TRANSMISSION COVER WITH PROTECTOR More informationQuantity required : 1 |
||||||
|
2 |
1A017434-TRANSMISSION COVER WITH PROTECTOR More informationQuantity required : 1 |
||||||
|
3 |
B017481-PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/3/8/img/110038.JPG)
4 |
PION DE CENTRAGE OEM PIAGGIO COMMON A LA RANGE-B015592 More informationQuantity required : 2 |
||||||
|
5 |
1A006307-CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/7/5/img/164075.jpg)
6 |
BEARING (15X32X9) COVER DE TRANSMISSION OEM PIAGGIO 50 SXR APRILIA 2021 >-B018304 More informationQuantity required : 1 |
||||||
|
7 |
B018038-SHAFT OF MISE EN MOUVEMENT More informationQuantity required : 1 |
||||||
|
8 |
B014188-SPRING More informationQuantity required : 1 |
||||||
|
9 |
B017597 - PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/1/img/68901.jpg)
10 |
SPRING OF KICK OEM PIAGGIO 50-125 LIBERTY, VESPA LX, VESPA-S, 50 TYPHOON, 50 FLY, 50 NRG/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, MOJITO-288673 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/9/1/9/3/img/159193.JPG)
11 |
SCREW HEAD BOMBEE TORX OEM PIAGGIO COMMON A LA RANGE-1A000612 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/7/9/img/164079.JPG)
12 |
SCREW TARAUD 3. 8X16 OEM PIAGGIO COMMON A LA RANGE-B018421 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/8/0/img/164080.jpg)
13 |
PROTECTOR COOLING CASING TRANSMISSION OEM APRILIA 50 SXR 2021 >-B013524 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/6/0/5/8/img/166058.jpg)
14 |
DEVIATEUR AIR CASING TRANSMISSION OEM APRILIA 50 SXR 2021 >-B013685 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/4/img/63814.jpg)
15 |
CLIPS/CIRCLIPS (14. 6) OEM PIAGGIO COMMON A TOUTE LA RANGE-006416 More informationQuantity required : 1 |
||||||
|
16 |
B017445-GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/4/3/img/66443.jpg)
17 |
WASHER SHAFT OF KICK (16, 3X23, 8) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-433987 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/8/2/img/164082.jpg)
19 |
SCREW TORX (5X13) OEM PIAGGIO COMMON A LA RANGE-1A008521 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/8/3/img/164083.jpg)
20 |
SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-1A003060 More informationQuantity required : 6 |
||||||
|
21 |
667842-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/8/5/img/164085.jpg)
22 |
COVER DU COVER DE TRANSMISSION OEM APRILIA 50 SXR 2021 >-1A005843 More informationQuantity required : 1 |
||||||
|
23 |
1A007571-SCREW More informationQuantity required : 1 |
||||||
|
24 |
1A008057-LEVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/8/8/img/164088.jpg)
24 |
SPRING VERROUILLAGE DE KICK OEM PIAGGIO APRILIA SR 125 RST 2023-B016419 More informationQuantity required : 1 |
