Vehicle Exploded View - APRILIA SR 150 SR MT 150 HE Carburatore 2019 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

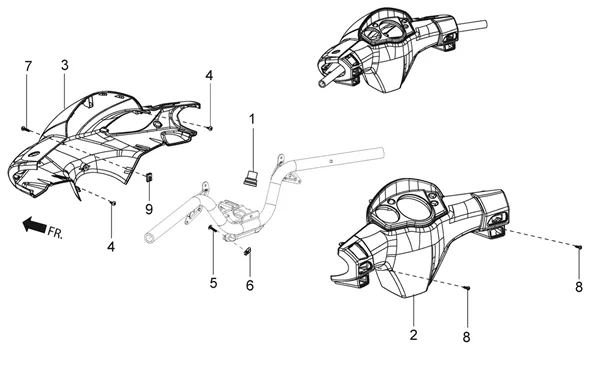

Cadre : 02.13 PROTECTION GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/930/SR_MT_150_HE_Carburatore_2019_(EMEA)_02.13.png)
1 |
1B003841-COVER More informationQuantity required : 1 |
||||||
|
2 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/5/1/4/2/img/155142.jpg)
2 |
HANDLEBAR COVER REAR OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > (BUTTON HORN RECTANGULAIRE)-1B006204 More informationQuantity required : 1 |
||||||
|
3 |
|
||||||
|
3 |
|
||||||
|
3 |
|
||||||
|
3 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/2/8/7/img/164287.jpg)
3 |
HANDLEBAR COVER FRONT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > UNPAINTED READY TO PAINT-1B006986 More informationQuantity required : 1 |
||||||
|
3 |
|
||||||
|
3 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
4 |
SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
5 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
6 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 2 |
||||||
|
7 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/8/img/66058.jpg)
8 |
SCREW AUTOTARAUDEUSE (4X16) OEM PIAGGIO COMMON A LA RANGE-267115 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
9 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017409 More informationQuantity required : 1 |
