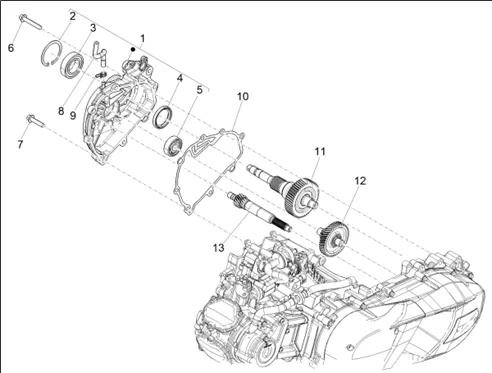

Vehicle Exploded View - APRILIA SR 200 SR COMPACT GT 200 E5 2021 (EMEA) APRILIA

Moteur : 03.255 ENSEMBLE RÉDUCTEUR
Ensemble réducteur
Search
1A0029425 - COUVERCLE

1
P2R reference P2R reference 139521
Maker reference Maker reference 1A0029425

1A0029425-COVER

More information

Quantity required : 1

B015963 - SEGMENT CN

2
P2R reference P2R reference 195811
Maker reference Maker reference B015963

B015963 - SEGMENT CN

More information

Quantity required : 1

BEARING (30X55X13) DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1A005376R

3
P2R reference P2R reference 139393
Maker reference Maker reference 1A005376R

BEARING (30X55X13) DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1A005376R

More information

Quantity required : 1

B015440 - BAGUE D'ETANCHEITE 38X50X7

4
P2R reference P2R reference 72675
Maker reference Maker reference B015440

B015440-BUSH D'ETANCHEITE 38X50X7

More information

Quantity required : 1

BEARING (15X42X13) RADIAL ENSEMBLE REDUCTEUR OEM COMMON A LA RANGE PIAGGIO-83026R

5
P2R reference P2R reference 92847
Maker reference Maker reference 83026R

BEARING (15X42X13) RADIAL ENSEMBLE REDUCTEUR OEM COMMON A LA RANGE PIAGGIO-83026R

More information

Quantity required : 1

SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1A001623

6
P2R reference P2R reference 109872
Maker reference Maker reference B016773
Replaced by référence Replaced by référence 72719

SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1A001623

More information

Quantity required : 3

SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1A001623

6
P2R reference P2R reference 109872
Maker reference Maker reference 1A001623
Replaced by référence Replaced by référence 72719

SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1A001623

More information

Quantity required : 3

7
P2R reference P2R reference
Maker reference Maker reference B0165545

1A006897 - TUYAU RENIFLARD

8
P2R reference P2R reference 146247
Maker reference Maker reference 1A006897

1A006897-HOSE RENIFLARD

More information

Quantity required : 1

HOSE CLAMP HOSE (8X11) OEM PIAGGIO COMMON A LA RANGE-CM002904

9
P2R reference P2R reference 72891
Maker reference Maker reference CM002904

HOSE CLAMP HOSE (8X11) OEM PIAGGIO COMMON A LA RANGE-CM002904

More information

Quantity required : 1

GASKET COVER DE REDUCTEUR OEM PIAGGIO 125 2012 > COMMON A LA RANGE-B016456

10
P2R reference P2R reference 94697
Maker reference Maker reference B016456

GASKET COVER DE REDUCTEUR OEM PIAGGIO 125 2012 > COMMON A LA RANGE-B016456

More information

Quantity required : 1

1A020702 - AXE ROUE AR.

11
P2R reference P2R reference 196137
Maker reference Maker reference 1A020702

1A020702-SPINDLE WHEEL AR.

More information

Quantity required : 1

1A020695 - COMPLETE INTERMEDIATE SHAFT

12
P2R reference P2R reference 196138
Maker reference Maker reference 1A020695

1A020695-COMPLETE INTERMEDIATE SHAFT

More information

Quantity required : 1

SHAFT DE TRANSMISSION PRIMAIRE (Z: 14) OEM PIAGGIO 125 MEDLEY, GTS 2016 >-1A021236

13
P2R reference P2R reference 206171
Maker reference Maker reference 1A005115

SHAFT DE TRANSMISSION PRIMAIRE (Z: 14) OEM PIAGGIO 125 MEDLEY, GTS 2016 >-1A021236

More information

Quantity required : 1

SHAFT DE TRANSMISSION PRIMAIRE (Z: 14) OEM PIAGGIO 125 MEDLEY, GTS 2016 >-1A021236

13
P2R reference P2R reference 206171
Maker reference Maker reference 1A021236

SHAFT DE TRANSMISSION PRIMAIRE (Z: 14) OEM PIAGGIO 125 MEDLEY, GTS 2016 >-1A021236

More information

Quantity required : 1
