Vehicle Exploded View - APRILIA SR 200 SR COMPACT GT 200 E5 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

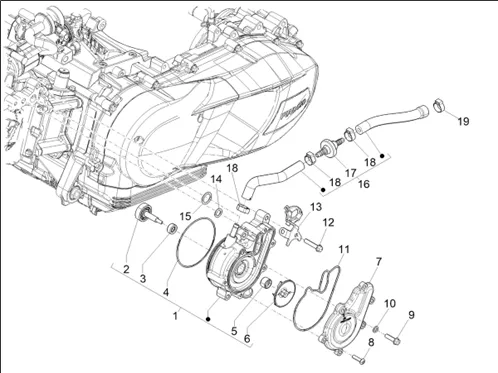

Moteur : 03.21 POMPE À EAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1165/SR_COMPACT_GT_200_E5_2021_(EMEA)_03.21.png)
1 |
1A0205055-COMPLETE WATER PUMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/5/2/2/img/139522.jpg)
2 |
SHAFT OF PUMP A WATER OEM PIAGGIO 125 MEDLEY, GTS VESPA, MYMOOVER/SR GT COMPACT APRILIA 2016 >-1A0030735 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/0/img/68550.jpg)
3 |
OIL SEAL 8X16X7 RECEPTEUR CLUTCH OEM PIAGGIO APRILIA 750 DORSODURO, SHIVER-825577 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/7/5/img/139475.jpg)
4 |
O-RING WATER PUMP OEM PIAGGIO 125 MEDLEY, GTS VESPA, MYMOOVER/SR GT COMPACT APRILIA 2016 >-1A001054 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/6/7/9/img/92679.jpg)
5 |
BUSH ETANCHEITE WATER PUMP OEM PIAGGIO 125 GTS, MEDLEY 2016 >/APRILIA SR GT 2021 >-82510R More informationQuantity required : 1 |
||||||
|
6 |
1A019833-WATER PUMP FAN More informationQuantity required : 1 |
||||||
|
7 |
1A019831-COVER PUMP WATER More informationQuantity required : 1 |
||||||
|
8 |
1A004456-SCREW More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/0/2/img/75302.jpg)
9 |
SCREW FLANGE TH (6X25) OEM COMMON A LA RANGE PIAGGIO-1A000350 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/5/5/6/img/139556.jpg)
10 |
WASHER (6. 3X10. 3X1) PLATE OEM PIAGGIO COMMON A LA RANGE-1A004280 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/8/0/img/139480.jpg)
11 |
GASKET OF COVER OF PUMP A WATER OEM PIAGGIO 125 MEDLEY, GTS VESPA, MYMOOVER/SR GT COMPACT APRILIA 2016 >-1A001276 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/0/0/img/75300.JPG)
12 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-1A000348 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/5/9/3/img/139593.jpg)
13 |
BRACKET BRACKET HOSE BLOW BY OEM PIAGGIO 125-150 MEDLEY, GTS 2016 >/125-200 SR COMPACT GT APRILIA 2021 >-1A0055625 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/7/6/img/139476.jpg)
14 |
O RING OF WATER PUMP/CASING OEM PIAGGIO 125 MEDLEY, GTS 2016/125 SR GT COMPACT APRILIA 2021 >-1A001055 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/7/7/img/139477.jpg)
15 |
O RING OF WATER PUMP OEM APRILIA 125 SR GT COMPACT 2021 >/125 MEDLEY, GTS VESPA 2016 >-1A001056 More informationQuantity required : 1 |
||||||
|
16 |
1A0210075-OIL BREATHER MANIFOLD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/5/4/1/img/139541.jpg)
17 |
VALVE/CLAPET DE NON RETOUR OEM PIAGGIO COMMU A LA RANGE-1A004008 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/5/img/72865.jpg)
18 |
CLAMP (16. 2MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001903 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
19 |
CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904 More informationQuantity required : 1 |
