Vehicle Exploded View - APRILIA SR 125 SR COMPACT GT 125 E5 2021 (EMEA) APRILIA

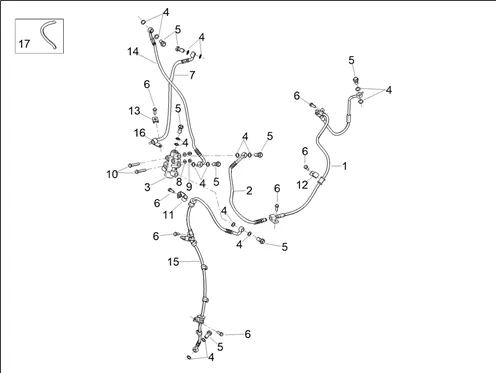

Système de freinage : 06.07 SYSTÈME DE FREINAGE
Système de freinage
Search
1C005438 - TUYAU FREIN ARRIERE

1
P2R reference P2R reference 195845
Maker reference Maker reference 1C005438

1C005438-HOSE BRAKE REAR

More information

Quantity required : 1

1C005928 - BRAKE HOSE CBS VALVE-CONNECTION

2
P2R reference P2R reference 195846
Maker reference Maker reference 1C005928

1C005928-BRAKE HOSE CBS VALVE-CONNECTION

More information

Quantity required : 1

CM082808 - SOUPAPE REGLAGE PRESSION

3
P2R reference P2R reference 195847
Maker reference Maker reference CM082808

CM082808-VALVE REGLAGE PRESSION

More information

Quantity required : 1

GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927

4
P2R reference P2R reference 65723
Maker reference Maker reference 127927

GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927

More information

Quantity required : 16

1C002059R - VIS

5
P2R reference P2R reference 127555
Maker reference Maker reference 1C002059R
Replaced by référence Replaced by référence 229078

1C002059R - VIS

More information

Quantity required : 8

1C001475 - VIS BRIDE

6
P2R reference P2R reference 151577
Maker reference Maker reference 1C001475

1C001475-SCREW FLANGE

More information

Quantity required : 7

1C006050 - PIPE FITTING (REAR PUMP-VALVE)

7
P2R reference P2R reference 195848
Maker reference Maker reference 1C006050

1C006050-MANIFOLD FITTING (REAR PUMP-VALVE)

More information

Quantity required : 1

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

8
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

More information

Quantity required : 2

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-012138

9
P2R reference P2R reference 111436
Maker reference Maker reference 0121385

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-012138

More information

Quantity required : 2

SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-1A011120

10
P2R reference P2R reference 151716
Maker reference Maker reference 1A011120

SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-1A011120

More information

Quantity required : 2

CLAMP FITTING KIT HOSE OF BRAKE OEM PIAGGIO 125-250-300-350-400-500-530 MP3-649502

11
P2R reference P2R reference 86964
Maker reference Maker reference 649502

CLAMP FITTING KIT HOSE OF BRAKE OEM PIAGGIO 125-250-300-350-400-500-530 MP3-649502

More information

Quantity required : 1

598795 - COLLIER

12
P2R reference P2R reference 146211
Maker reference Maker reference 598795

598795-CLAMP

More information

Quantity required : 1

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

13
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 1

1C006049 - PIPE FITTING ( FRONT PUMP-VALVE)

14
P2R reference P2R reference 195849
Maker reference Maker reference 1C006049

1C006049-MANIFOLD FITTING (FRONT PUMP-VALVE)

More information

Quantity required : 1

1C006048 - BRAKE HIDR. HOSE(CBS VALVE-CALIPER)

15
P2R reference P2R reference 195850
Maker reference Maker reference 1C006048

1C006048 - BRAKE HIDR. HOSE(CBS VALVE-CALIPER)

More information

Quantity required : 1

CLAMP MOUNTING WIRING OU HOSE OEM PIAGGIO COMMON A LA RANGE-573918

16
P2R reference P2R reference 67101
Maker reference Maker reference 573918

CLAMP MOUNTING WIRING OU HOSE OEM PIAGGIO COMMON A LA RANGE-573918

More information

Quantity required : 1

raw material

17
P2R reference P2R reference
Maker reference Maker reference CM017712

raw material
