Vehicle Exploded View - APRILIA SR 125 SR COMPACT GT 125 E5 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

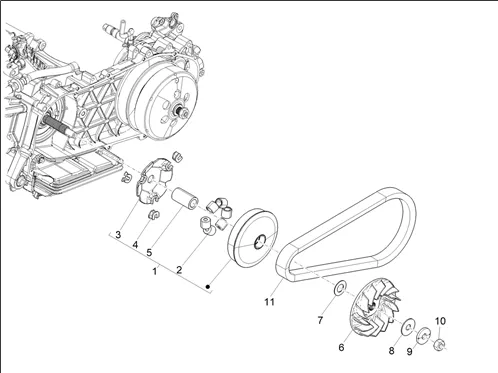

Moteur : 03.24 DEMI-POULIE MOTRICE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1158/SR_COMPACT_GT_125_E5_2021_(EMEA)_03.24.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/0/7/img/195807.jpg)
1 |
PULLEY MOTRICE/VARIATOR OEM PIAGGIO 125 SR GT COMPACT APRILIA 2021 >-CM284808 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/0/8/img/195808.jpg)
2 |
GALET/ROLLER OEM PIAGGIO 125 SR GT COMPACT APRILIA/VESPA GTS/LX/946 (SOLD INDIVIDUALLY)-CM308502 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/9/0/img/66690.jpg)
3 |
FLASQUE A ROULEAUX PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-485710 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/8/7/1/img/203871.jpg)
4 |
GUIDE/PATIN DE VARIATOR OEM PIAGGIO 125 MEDLEY 2016 > 2020/SR GT COMPACT APRILIA 2021 >, VESPA GTS 2016 >-1A015664 More informationQuantity required : 3 |
||||||
|
4 |
GUIDE/PATIN DE VARIATOR OEM PIAGGIO 125 MEDLEY 2016 > 2020/SR GT COMPACT APRILIA 2021 >, VESPA GTS 2016 >-1A015664 More informationQuantity required : 3 |
||||||
5 |
1A008145 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/3/8/img/70638.jpg)
6 |
FLASQUE/JOUE FIXE DE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC INJECTION-876921 More informationQuantity required : 1 |
||||||
|
7 |
1A007071-WASHER PLATE More informationQuantity required : 1 |
||||||
|
8 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/4/3/img/70743.jpg)
9 |
WASHER ELASTIC DE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-880950 More informationQuantity required : 1 |
||||||
|
10 |
B016001 - ECROU HEXAGONAL M12X1.25-6H More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/7/6/5/img/162765.jpg)
11 |
DRIVE BELT MAXI SCOOTER OEM PIAGGIO 125 MEDLEY 2016 >, 125 VESPA GTS 2016 > APRILIA 125 SR GT COMPACT 2021 >-1A011455 More informationQuantity required : 1 |
