Vehicle Exploded View - APRILIA SR 50 R H2O 2T E4 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

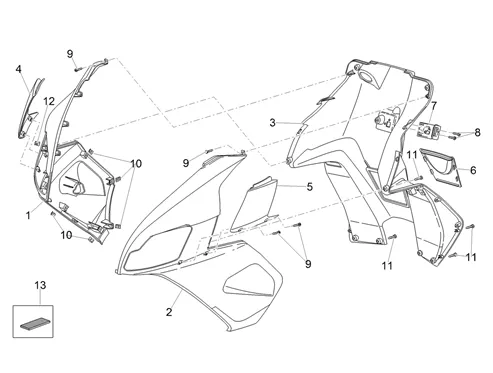

Carrosserie : 02.080 CARÈNE LATERAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/826/SR_50_R_H2O_2T_E4_2018_(EMEA)_02.080.png)
1 |
AP82683456-LEG SHIELD FRONT RIGHT, RED More informationQuantity required : 1 |
||||||
|
1 |
AP82683136-TAIL CAR. D WHITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/0/1/2/0/img/60120.jpg)
1 |
FRONT PANEL FRONT RIGHT OEM PIAGGIO APRILIA 50 SR H2O 2014 > BLACK DIABLO-AP82685806 More informationQuantity required : 1 |
||||||
|
2 |
AP8268314 - ½-QUEUE CAR. G BLANC More informationQuantity required : 1 |
||||||
|
2 |
AP8268346 - TABLIER AVANT G., ROUGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/0/1/2/1/img/60121.jpg)
2 |
FRONT PANEL FRONT LEFT OEM PIAGGIO APRILIA 50 SR H2O 2014 > BLACK DIABLO-80532 More informationQuantity required : 1 |
||||||
|
3 |
AP8268330-CONTRE-LEG SHIELD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/9/8/1/8/img/59818.jpg)
4 |
DEFLECTOR AIR FRONT RIGHT BLACK OEM PIAGGIO APRILIA 50 SR H2O 2004 >-AP8268048 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/9/8/2/3/img/59823.jpg)
5 |
DEFLECTOR AIR FRONT LEFT BLACK OEM PIAGGIO APRILIA 50 SR H2O 2004 > 2018-AP8268053 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/9/8/4/5/img/59845.jpg)
6 |
HATCH DE VISITE N- DE SERIE OEM PIAGGIO-AP8268082 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/5/img/72135.jpg)
7 |
ACROCHE CASQUE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA-AP8201534 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/0/img/71880.JPG)
8 |
SCREW (4, 2X25) OEM PIAGGIO COMMON A LA RANGE-AP8150423 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
9 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/7/img/72157.jpg)
10 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449 More informationQuantity required : 20 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/5/img/71975.jpg)
11 |
SCREW PARKER (4, 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152351 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
12 |
NUT SHEET METAL (M4) OEM PIAGGIO COMMON A LA RANGE-AP8102381 More informationQuantity required : 4 |
||||||
|
13 |
AP8117073-ADHESIVE SPONGE More informationQuantity required : 1 |
