Vehicle Exploded View - APRILIA SR 50 R H2O 2T E4 2018 (EMEA) APRILIA

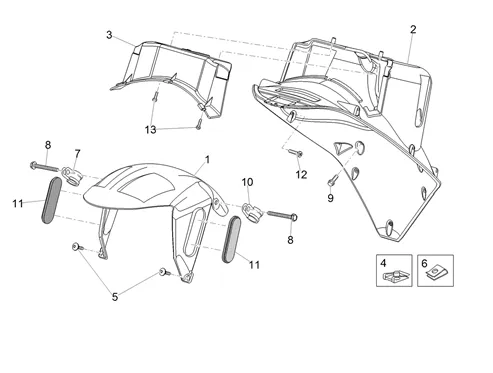

Carrosserie : 02.030 GARDE-BOUE AV.-EMBASEMENT
Garde-boue Av.-Embasement
Search
FRONT MUDGUARD OEM PIAGGIO 50 SR H2O APRILIA 2018 > BLACK-1B005753

1
P2R reference P2R reference 155550
Maker reference Maker reference 1B005753

FRONT MUDGUARD OEM PIAGGIO 50 SR H2O APRILIA 2018 > BLACK-1B005753

More information

Quantity required : 1

AP8268083 - PASSARUOTA

2
P2R reference P2R reference 59846
Maker reference Maker reference AP8268083

AP8268083-PASSARUOTA

More information

Quantity required : 1

AP8268253 - SPORTELLO PASSARUOTA

3
P2R reference P2R reference 59961
Maker reference Maker reference AP8268253

AP8268253-SPORTELLO PASSARUOTA

More information

Quantity required : 1

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

4
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 2

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

5
P2R reference P2R reference 71957
Maker reference Maker reference AP8152298

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

More information

Quantity required : 2

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449

6
P2R reference P2R reference 72157
Maker reference Maker reference AP8202449

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449

More information

Quantity required : 1

AP8104451 - GUIDE-CABLE

7
P2R reference P2R reference 71225
Maker reference Maker reference AP8104451

AP8104451-GUIDE-CABLE

More information

Quantity required : 2

SCREW FLANGE TH (5X30) OEM PIAGGIO COMMON A LA RANGE-433477

8
P2R reference P2R reference 66438
Maker reference Maker reference 433477

SCREW FLANGE TH (5X30) OEM PIAGGIO COMMON A LA RANGE-433477

More information

Quantity required : 2

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-598839

9
P2R reference P2R reference 67365
Maker reference Maker reference 598839

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-598839

More information

Quantity required : 2

AP8134167 - PLAQUETTE TUYAU FREIN;

10
P2R reference P2R reference 71695
Maker reference Maker reference AP8134167

AP8134167-PLATE HOSE BRAKE

More information

Quantity required : 1

CATADIOPTRE OEM PIAGGIO COMMON A LA RANGE-AP8224623

11
P2R reference P2R reference 57502
Maker reference Maker reference AP8224623

CATADIOPTRE OEM PIAGGIO COMMON A LA RANGE-AP8224623

More information

Quantity required : 2

SCREW PARKER (4, 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152351

12
P2R reference P2R reference 71975
Maker reference Maker reference AP8152351

SCREW PARKER (4, 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152351

More information

Quantity required : 10

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

13
P2R reference P2R reference 71876
Maker reference Maker reference AP8150413

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

More information

Quantity required : 2
