Vehicle Exploded View - APRILIA SR 50 H20 1994-1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

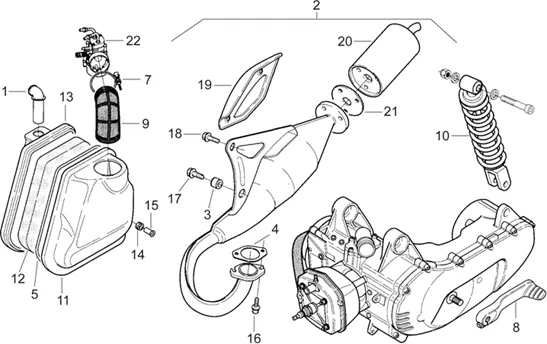

Chassis : 28.07 POT D'ÉCHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/576/SR_50_H20_1994-1996_28.07.PNG)
1 |
Coude boitier |
||||||
|
2 |
|
||||||
|
2 |
AP8219190 - ECHAPPEMENT SR H20-I- More informationQuantity required : 1 |
||||||
|
2 |
POT ECHA.-J- |
||||||
|
2 |
POT ECHAP-EXP- |
||||||
|
2 |
POT ECHAPPEMENT CAT -NL- |
||||||
|
2 |
POT ECHAPPEMENT CAT -D- |
||||||
|
3 |
AP8220357-RUBBER MOUNT SILENCER VERT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/7/2/7/img/56727.jpg)
4 |
AP8219212-GASKET SILENCER D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
5 |
JOINT |
||||||
|
6 |
|
||||||
|
6 |
|
||||||
|
6 |
|
||||||
|
6 |
|
||||||
|
6 |
Moteur complet |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/9/1/img/55391.jpg)
7 |
CLAMP SLEEVE AIR (42/50) OEM PIAGGIO COMMON A LA RANGE-AP8201799 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/8/0/3/2/img/58032.jpg)
8 |
KICK DE DEMARRAGE OEM PIAGGIO APRILIA 50 SR, SONIC, RALLY, GULLIVER, SCARABEO-AP8232820 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/6/4/img/56864.jpg)
9 |
AP8220364 - MANCHON D'ASPIRATION More informationQuantity required : 1 |
||||||
|
10 |
AP8203631 - AMORTISSEUR, NOIR More informationQuantity required : 1 |
||||||
|
11 |
AP8231549-COVER BODY FILTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/8/7/5/2/img/168752.JPG)
12 |
FILTER AIR OEM APRILIA SR 50 1994-2001-AP82016830P More informationQuantity required : 1 |
||||||
|
13 |
AP8231548-BODY FILTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/6/9/img/56869.jpg)
14 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8220370 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/8/img/46928.jpg)
15 |
BUSH EN T OEM PIAGGIO COMMON A LA RANGE-AP8121725 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/8/img/71898.jpg)
16 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150521 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
17 |
SCREW FLANGE TH (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8152289 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
18 |
SCREW FLANGE TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152288 More informationQuantity required : 1 |
||||||
|
19 |
PROTECTION ECHAP. SR |
||||||
|
19 |
PROTECTION POT ECHAPP |
||||||
|
20 |
AP8219236 - SILENCIEUX More informationQuantity required : 1 |
||||||
|
21 |
AP8201574-GASKET SILENCER D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
22 |
Carburateur |
