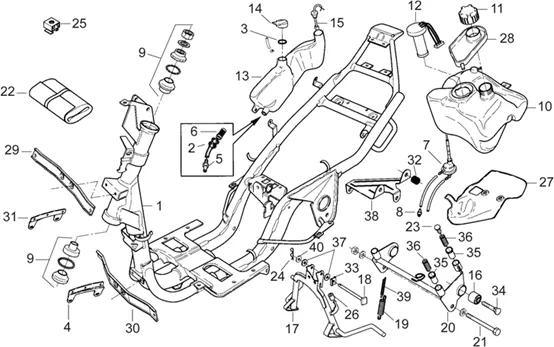

Vehicle Exploded View - APRILIA SR 50 H20 1994-1996

	P2R reference
	Maker reference	AP8232824

Cadre sr 95

	P2R reference	45142
	Maker reference	AP8102223

RUBBER/FITTING CANALISATION OIL OEM PIAGGIO COMMON A LA RANGE APRILIA 50-125-AP8102223

	P2R reference	56840
	Maker reference	AP8220195

GASKET CAP DE TANK D'HUILE OEM PIAGGIO APRILIA SR 50 1993 > 2004-AP8220195

	P2R reference
	Maker reference	AP8232764

SUPPORT GAUCHE

	P2R reference	71166
	Maker reference	AP8101944

FITTING FUEL A DEUX VOIES OEM PIAGGIO COMMON A LA RANGE-AP8101944

	P2R reference	71170
	Maker reference	AP8102224

OIL TANK FILTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA 50-125 CC -AP8102224

	P2R reference	55395
	Maker reference	AP8201824

AP8201824-ROBINET FUEL A DEPRESS.

	P2R reference
	Maker reference	AP8101999

FILTRE ESSENCE (=8101999

	P2R reference	55540
	Maker reference	AP8203666

AP8203666 - SERIE DIRECTION COMPLETE

	P2R reference
	Maker reference	AP8231772

Réservoir bague noir;

	P2R reference
	Maker reference	AP8258808

Réservoir essence

	P2R reference	55386
	Maker reference	AP8201757

AP8201757 - BOUCHON ESSENCE

	P2R reference	56355
	Maker reference	AP8212958

AP8212958-SONDE NIVEAU FUEL

	P2R reference	57972
	Maker reference	AP8230913

AP8230913-TANK OIL

	P2R reference	56882
	Maker reference	AP8220421

CAP TANK OIL OEM PIAGGIO APRILIA COMMON A LA RANGE SCOOTER 50 CC-AP8220421

	P2R reference	56269
	Maker reference	AP8212481

AP8212481-INDICATEUR RESERVE OIL

	P2R reference	56870
	Maker reference	AP8220376

AP8220376 - SILENTBLOC BIELLE

	P2R reference
	Maker reference	AP8232933

Béquille;

	P2R reference	57049
	Maker reference	AP8221296

AP8221296-PIVOT STAND WITH RONDELLES

	P2R reference	72303
	Maker reference	AP8221204

SPRING DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 APRILIA/MOTO-GUZZI NORGE, BREVA, STELVIO-AP8221204

	P2R reference
	Maker reference	AP8232818

Biellette fixation moteur;

	P2R reference	72300
	Maker reference	AP8221160

AP8221160-PIVOT BRACKET ENGINE

	P2R reference	55380
	Maker reference	AP8201685

AP8201685 - TROUSSE A OUTILS

	P2R reference	72282
	Maker reference	AP8220396

AP8220396 - TIGE

	P2R reference	72133
	Maker reference	AP8201431

GOUPILLE (20X1. 2) OEM PIAGGIO COMMON A LA RANGE-AP8201431

	P2R reference	57021
	Maker reference	AP8221213

NUT EN CAGE M6 OEM PIAGGIO COMMON A LA RANGE-AP8221213

	P2R reference	56849
	Maker reference	AP8220239

AP8220239-RUBBER

	P2R reference
	Maker reference	AP8231222

PROTECTION ROBINET ESSEN

	P2R reference	56862
	Maker reference	AP8220344

AP8220344 - CUVE COLLECTE ESSENCE

	P2R reference
	Maker reference	AP8232822

SUPPORT BOUCIER H20

	P2R reference
	Maker reference	AP8234093

Support durite eau

	P2R reference
	Maker reference	AP8232763

SUPPORT DROIT

	P2R reference	72305
	Maker reference	AP8221218

AP8221218-BUSH GUARD-MUD

	P2R reference
	Maker reference	AP8221208

RONDELLE

	P2R reference	57015
	Maker reference	AP8221184

AP8221184-PIVOT MOUNTING BIELLETTE

	P2R reference	72284
	Maker reference	AP8220460

BUSH OEM PIAGGIO COMMON A LA RANGE-AP8220460

	P2R reference	57022
	Maker reference	AP8221215

AP8221215 - RESSORT BIELLE

	P2R reference	56865
	Maker reference	AP8220366

WASHER RUBBER (10. 5X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8220366

	P2R reference	58051
	Maker reference	AP8234079

AP8234079-BRACKET G-MUD AR

	P2R reference	72304
	Maker reference	AP8221211

SPRING INTERNE RAPPEL STAND (PETIT SPRING) OEM PIAGGIO COMMON A LA RANGE-AP8221211

	P2R reference	71482
	Maker reference	AP8121697

WASHER SPRING (D10. 5) OEM PIAGGIO COMMON A LA RANGE-AP81216976
