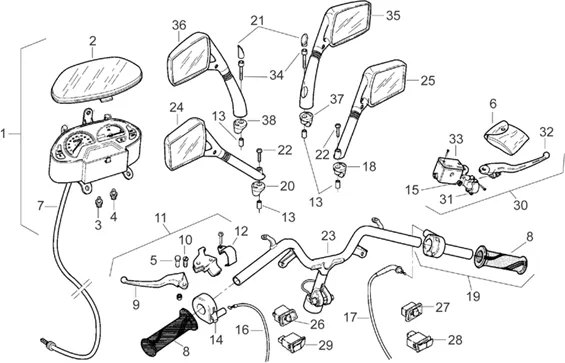

Chassis : 28.05 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/572/SR_50_Air_1994-1996_Horizontal_Cylinder_28.05.PNG)
1 |
AP8212719 - TABLEAU DE BORD SR More informationQuantity required : 1 |
||||||
|
1 |
BLOC COMPTEUR |
||||||
|
1 |
T.D.BORD EN MILES |
||||||
|
2 |
AP8212594 - VITRE TABLEAU DE BORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/6/0/img/56260.JPG)
3 |
DOOR-AMPOULE COMPLETE-AP8212408 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/5/9/img/56259.JPG)
4 |
DOOR AMPOULE 12V 1. 2 W OEM APRILIA-AP8212407 More informationQuantity required : 4 |
||||||
|
5 |
Encliquetage; |
||||||
|
6 |
KIT REPARATION |
||||||
|
7 |
Câble compteur km; |
||||||
|
8 |
GRIPS(PAIR) "PIAGGIO GENUINE PART" APRILIA 50 RALLYE, AMICO, GULLIVER, SR 1996> -AP8218275- More informationQuantity required : 1 |
||||||
|
8 |
Couple manettes; |
||||||
|
9 |
AP8218153 - LEVIER FREIN ARRIERE NU; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/4/8/img/56648.jpg)
9 |
BRAKE LEVER SCOOT OEM PIAGGIO APRILIA 50 SR 1996 > 1999 AR-AP8218274 More informationQuantity required : 1 |
||||||
|
10 |
Pivot levier frein; |
||||||
|
11 |
AP8218136 - COMMANDE FREIN ARRIERE GCHE; More informationQuantity required : 1 |
||||||
|
11 |
AP8218236 - LEVIER FREIN ARRIERE; More informationQuantity required : 1 |
||||||
|
12 |
AP8218154 - CAVALIER LEVIER FREIN; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/1/2/img/57012.JPG)
13 |
AP8221171-SPACER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/8/img/72188.jpg)
14 |
CONTROL STARTER OEM PIAGGIO APRILIA 50 RALLY, RX, SX, GULLIVER, AMICO, SR/DERBI 50 SENDA 2008 > 2010-AP8212529 More informationQuantity required : 1 |
||||||
|
15 |
AP8113414 - HUBLOT POMPE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/3/9/img/56539.jpg)
16 |
AP8214108 - CABLE STARTER; More informationQuantity required : 1 |
||||||
|
17 |
AP8214109 - CABLE GAZ; More informationQuantity required : 1 |
||||||
|
18 |
AP8220341-C/C MIRROR G. More informationQuantity required : 1 |
||||||
|
19 |
Commande gaz+poignée; |
||||||
|
19 |
AP8218252 - COMMANDE GAZ+POIGNEE GRISE; More informationQuantity required : 1 |
||||||
|
20 |
Entretoise retro dr |
||||||
|
21 |
|
||||||
|
21 |
AP8202071-CAP RETRO DTE + GCHE More informationQuantity required : 1 |
||||||
|
22 |
VIS FIXATION RETROV. |
||||||
|
23 |
Guidon sr 95 |
||||||
|
24 |
AP8201725-MIRROR G More informationQuantity required : 1 |
||||||
|
25 |
RETROVISEUR DR. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/1/6/img/56316.jpg)
26 |
BUTTON/CONTACTEUR INDICATOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 APRILIA 1995 > 2009-AP8215767 More informationQuantity required : 1 |
||||||
|
27 |
Pous. feux 3 voies |
||||||
|
27 |
Pous. feux 2 voies |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/3/6/img/56336.jpg)
27 |
LIGHTS SWITCH "PIAGGIO GENUINE PART" APRILIA 50 RALLY, AMICO, GULLIVER, SR, SONIC -AP8212837 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/4/8/img/47448.jpg)
28 |
BUTTON/CONTACTEUR DE STARTER MOTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 APRILIA 1995 > 2009-AP8124208 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/4/9/img/47449.jpg)
29 |
BUTTON/CONTACTEUR AVERTISSEUR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 APRILIA 1995 > 2009-AP8124209 More informationQuantity required : 1 |
||||||
|
30 |
MAITRE CYLINDRE AV |
||||||
|
30 |
MAITRE CYLINDRE AV |
||||||
|
31 |
AP8218155-CAVALIER LEVER BRAKE More informationQuantity required : 1 |
||||||
|
32 |
AP8218156-LEVER BRAKE FRONT + REGL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/4/7/img/56647.jpg)
32 |
FRONT BRAKE LEVER- GRIMECA "PIAGGIO GENUINE PART" APRILIA 50 SCARABEO, RALLY, SR, AMICO, 125 LEONARDO -AP8218273 More informationQuantity required : 1 |
||||||
|
33 |
AP8213475-COVER PUMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/7/img/71827.jpg)
34 |
SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-AP8150164 More informationQuantity required : 2 |
||||||
|
35 |
MIRROR- RIGHT "PIAGGIO GENUINE PART" APRILIA 50 SR, AMICO, GULLIVER -AP8201726- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/4/1/1/img/55411.jpg)
35 |
RIGHT MIRROR OEM PIAGGIO APRILIA 50 SR 1993 > 2012, AMICO 1994 > 1998, GULLIVER 1995 > 1998-AP8201975 More informationQuantity required : 1 |
||||||
|
36 |
AP8201725-MIRROR G More informationQuantity required : 1 |
||||||
|
36 |
MIRROR- LEFT "PIAGGIO GENUINE PART" APRILIA 50 SR, AMICO, GULLIVER -AP8201976 More informationQuantity required : 1 |
||||||
|
37 |
Support retro dr sr |
||||||
|
38 |
Support retro g sr |
