Vehicle Exploded View - APRILIA SR 50 Air 1994-1996 Horizontal Cylinder APRILIA

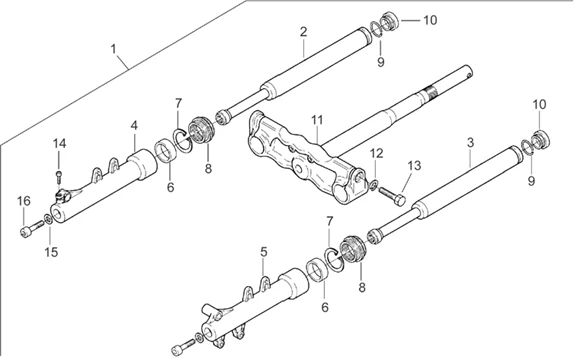

Chassis : 28.02 FOURCHE MARZOCCHI
Fourche Marzocchi
Search
FORCELLA ---VEDI=8203646

1
P2R reference P2R reference
Maker reference Maker reference AP8203646

FORCELLA ---VEDI=8203646

AP8203651 - TUBE DE FOURCHE DR SR

2
P2R reference P2R reference 164007
Maker reference Maker reference AP8203651

AP8203651 - TUBE DE FOURCHE DR SR

More information

Quantity required : 1

AP8203650 - TUBE DE FOURCHE G SR

3
P2R reference P2R reference 164008
Maker reference Maker reference AP8203650

AP8203650 - TUBE DE FOURCHE G SR

More information

Quantity required : 1

FOURREAU INF DR SR

4
P2R reference P2R reference
Maker reference Maker reference AP8203567

FOURREAU INF DR SR

TUBE INF G SR

5
P2R reference P2R reference
Maker reference Maker reference AP8203568

TUBE INF G SR

OIL SEAL DE FORK MARZOCCHI OEM APRILIA 50 RS 1993-1998/50 SR-665683

6
P2R reference P2R reference 55524
Maker reference Maker reference AP8203565

OIL SEAL DE FORK MARZOCCHI OEM APRILIA 50 RS 1993-1998/50 SR-665683

More information

Quantity required : 2

Bague de butée

7
P2R reference P2R reference
Maker reference Maker reference AP8203566

Bague de butée

AP8203564 - PARE-POUSSIERE

8
P2R reference P2R reference 55523
Maker reference Maker reference AP8203564

AP8203564 - PARE-POUSSIERE

More information

Quantity required : 2

AP8203652 - JOINT TORIQUE

9
P2R reference P2R reference 55536
Maker reference Maker reference AP8203652

AP8203652 - JOINT TORIQUE

More information

Quantity required : 2

AP8203561 - BOUCHON

10
P2R reference P2R reference 55522
Maker reference Maker reference AP8203561

AP8203561-CAP

More information

Quantity required : 2

TE DE FORK KAIFA OEM APRILIA 50 SR H2O 1994 >-AP8223004

11
P2R reference P2R reference 57128
Maker reference Maker reference AP8223004

TE DE FORK KAIFA OEM APRILIA 50 SR H2O 1994 >-AP8223004

More information

Quantity required : 1

Joint;

12
P2R reference P2R reference
Maker reference Maker reference AP8123436

Joint;

VIS

13
P2R reference P2R reference
Maker reference Maker reference AP8203559

VIS

AP8203571 - VIS

14
P2R reference P2R reference 55525
Maker reference Maker reference AP8203571

AP8203571 - VIS

More information

Quantity required : 1

AP8203572 - RONDELLE ETANCHEITE

15
P2R reference P2R reference 55526
Maker reference Maker reference AP8203572

AP8203572-WASHER ETANCHEITE

More information

Quantity required : 2

SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-600123

16
P2R reference P2R reference 67410
Maker reference Maker reference 600123

SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-600123

More information

Quantity required : 2
