Vehicle Exploded View - APRILIA SR 50 1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

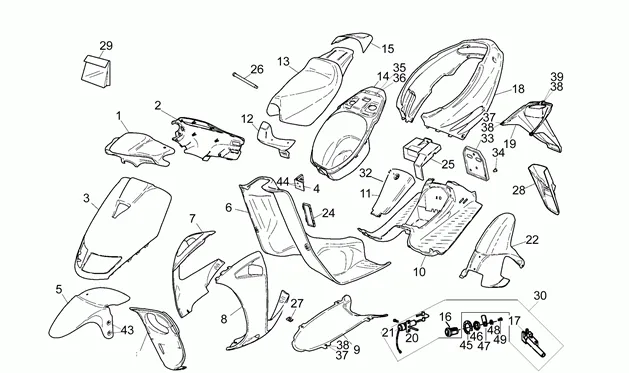

Chassis : 9 CARROSSERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/569/SR_50_1993_9.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/5/4/img/57054.jpg)
0 |
WASHER EVENTAIL (D 19) DE LOCK OEM PIAGGIO COMMON A LA RANGE-AP8221312 More informationQuantity required : 1 |
||||||
0 |
Support plaque; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.jpg)
0 |
WASHER PLATE (6, 4X12, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150014 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/6/img/71816.jpg)
0 |
SCREW BTR (6X55) OEM PIAGGIO COMMON A LA RANGE-AP8150045 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
0 |
WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/0/img/71880.JPG)
0 |
SCREW (4, 2X25) OEM PIAGGIO COMMON A LA RANGE-AP8150423 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/1/img/71881.jpg)
0 |
SCREW PARKER (5, 5X22) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150425 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/7/4/img/50874.jpg)
0 |
SCREW PARKER (5, 5X15, 9) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150426 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/8/img/50968.jpg)
0 |
NUT BAS (M19X1) OEM PIAGGIO COMMON A LA RANGE-AP8152194 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
0 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/7/5/img/55375.jpg)
0 |
LEVER OUVERTURE HATCH FUEL OEM PIAGGIO APRILIA ATLANTIC, CAPONORD, 50 RALLY, 50-125 RS, RX, SX-AP8201620 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/8/5/img/55385.jpg)
0 |
WASHER EVENTAIL MOUNTING CROCHET DE LOCK OEM PIAGGIO APRILIA ATLANTIC 125-250-500 2003 > 2012, RS 125 2011 > 2017, RS 50 2006 > 2016, SR 50 1993 > 2014-AP8201748 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/1/img/72141.jpg)
0 |
SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-AP8201749 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
0 |
BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023 More informationQuantity required : 1 |
||||||
|
1 |
CUVELAGE ROUGE SR 94' |
||||||
|
1 |
Cache compteur noir |
||||||
|
1 |
COUVERCLE VIOLET |
||||||
|
1 |
TDF BLEU |
||||||
|
2 |
Support peint noire; |
||||||
|
3 |
SCUDO ANTER.VERN=8231451 |
||||||
|
3 |
Tablier av.noir |
||||||
|
3 |
BOUCLIER |
||||||
|
3 |
TABLIER AVANT BLEU |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/5/img/72135.jpg)
4 |
ACROCHE CASQUE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA-AP8201534 More informationQuantity required : 1 |
||||||
|
5 |
AP8231205 - GARDE BOUE AV.GRIS/NOIR More informationQuantity required : 1 |
||||||
|
6 |
Tablier int. gris |
||||||
|
7 |
CARENA CENTR.DX =8231452 |
||||||
|
7 |
CARENA CENTRALE =8231461 |
||||||
|
7 |
CARENAGE CENTRAL DR. |
||||||
|
7 |
FLANC CENTRALE DROIT |
||||||
|
8 |
AP8231453 - CARENAGE CENTRAL G. More informationQuantity required : 1 |
||||||
|
8 |
CARENAGE CENTRAL G. |
||||||
|
8 |
CARENAGE CENTRAL G. |
||||||
|
8 |
FLANC CENTRAL GAUCHE |
||||||
|
9 |
AP8231169 - CARENAGE INFERIEUR More informationQuantity required : 1 |
||||||
|
10 |
PLANCHER VIOLET |
||||||
|
10 |
PLANCHER NOIR |
||||||
|
10 |
BOUCHON *8231475 |
||||||
|
10 |
TAPIS TUNNEL BLEU |
||||||
|
11 |
COUVERCLE VIOLET |
||||||
|
11 |
Cache batterie noir |
||||||
|
11 |
COPERCHIO TUNNEL=8231476 |
||||||
|
11 |
COUVERCLE TUNNEL BLEU |
||||||
|
12 |
DESSOUS SELLE |
||||||
|
12 |
CHARNIERE S/SELLE8231465 |
||||||
|
12 |
CHARNIERE =8231474 |
||||||
|
12 |
Charniere s/selle |
||||||
|
13 |
SELLE NOIRE SR 94 |
||||||
|
14 |
AP8230923 - COMPART.P-CASQUE; More informationQuantity required : 1 |
||||||
|
15 |
COPERCHIO SELLIN=8231455 |
||||||
|
15 |
DOSSERET |
||||||
|
15 |
COUVERCLE =8231473 |
||||||
|
15 |
COUVERCLE |
||||||
|
16 |
KIT LOCK HATCH FUEL OEM PIAGGIO APRILIA 125 ATLANTIC, CLASSIC, EUROPA, LEONARDO, 50 RS-AP8104609 More informationQuantity required : 1 |
||||||
|
17 |
AP8201564-LOCK SEAT More informationQuantity required : 1 |
||||||
|
18 |
Carenage ar.sr mauve |
||||||
|
18 |
CARENAGE AR |
||||||
|
18 |
COQUE ARRIERE =8231472 |
||||||
|
18 |
COQUE ARRIERE BLEUE |
||||||
|
19 |
Bavette ar sr |
||||||
|
20 |
ELECTRIC STARTER "PIAGGIO GENUINE PART" APRILIA 50 SR, RALLY, GULLIVER -AP8201600- More informationQuantity required : 1 |
||||||
|
21 |
AP8212400 - COMMUTATEUR (PARTIE ELEC More informationQuantity required : 1 |
||||||
|
22 |
Garde boue ar. noir |
||||||
|
23 |
DESSOUS TABLIER SR |
||||||
|
24 |
AP8230931 - COUV. DONNEES HOM., NOIR; More informationQuantity required : 1 |
||||||
|
25 |
COUVERCLE FUSIBLE |
||||||
|
26 |
AP8221173 - PIVOT CHARNIERE SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
27 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 1 |
||||||
|
28 |
AP8231480 - BAVOLET AR, NOIR; More informationQuantity required : 1 |
||||||
|
29 |
|
||||||
|
29 |
AP8215374 - KIT DECO VIPER*8215499 More informationQuantity required : 1 |
||||||
|
29 |
KIT DECO*8215653 |
||||||
|
29 |
KIT DECO |
||||||
|
30 |
AP8201845 - KIT SERRURE More informationQuantity required : 1 |
||||||
|
32 |
EMBLEMES PROTECTION |
||||||
|
32 |
EMBLEMES PROTECTION |
||||||
|
32 |
EMBLEMES PROTECTION |
||||||
|
32 |
DECO PROTECTION =8215622 |
