Vehicle Exploded View - APRILIA SR 50 1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

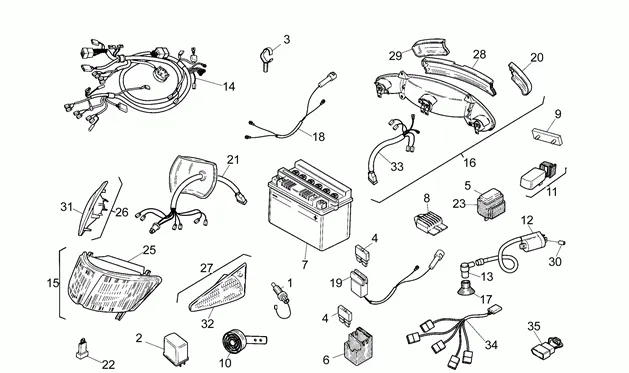

Chassis : 12 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/569/SR_50_1993_12.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/9/img/72189.jpg)
0 |
DIODE DE SECURITE OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA/APRILIA 50-125 RS, TUONO, RX, SX, 1000 RSV-2, FALCO, 650 PEGASO, 400-500 ATLANTIC-AP8212588 More informationQuantity required : 1 |
||||||
0 |
Câblage commandes guidon; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
1 |
INTERRUPTEUR LAMP STOP OEM PIAGGIO 50 NRG, ZIP, TYPHOON, LIBERTY, 125 X9, VESPA LXV, 250-300 VESPA GTV/APRILIA 50 SR H2O, 125 ATLANTIC, RS, SPORT-CITY/GILERA 50 STALKER-580953 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/3/img/71563.jpg)
2 |
CENTRE CLIGNOTANTE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA ET MOTO 125 CC-AP8124235 More informationQuantity required : 1 |
||||||
|
3 |
AP8220269-GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
4 |
CM225607-FUSIBLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
5 |
RELAIS 12V/30A OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8224462 More informationQuantity required : 1 |
||||||
|
6 |
AP8220342 - CAOUTCHOUC P-FUSIBLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/0/img/65970.jpg)
7 |
BATTERY 12V 4AH YB4L-B OEM PIAGGIO COMMON A LA RANGE-234390 More informationQuantity required : 1 |
||||||
|
8 |
AP8212799 - REGULATEUR DE TENSION; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/9/6/img/45896.jpg)
9 |
AP8112916-CATADIOPTRE LAMP REAR More informationQuantity required : 1 |
||||||
|
10 |
AVERTISSEUR OEM APRILIA SR 50 1993 >-58237R More informationQuantity required : 1 |
||||||
|
11 |
AP8206470 - CENTRALE POUR VOLANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/6/7/9/img/55679.jpg)
12 |
IGNITION COIL - HIGH TENSION "PIAGGIO GENUINE PART" APRILIA 50 RALLY, GULLIVER, SONIC, AMICO -AP8206125 More informationQuantity required : 1 |
||||||
|
13 |
AP8206108-MANIFOLD SPARK PLUG More informationQuantity required : 1 |
||||||
|
14 |
AP8212612 - FAISCEAU SR H20/AIR 95 More informationQuantity required : 1 |
||||||
|
15 |
AP8212497 - FEU AVANT SR 94/96 More informationQuantity required : 1 |
||||||
|
16 |
AP8212596 - FEU AR SR COMPLET More informationQuantity required : 1 |
||||||
|
17 |
AP8206128 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
18 |
AP8212670 - CABLAGE DEMARREUR More informationQuantity required : 1 |
||||||
|
19 |
AP8120754-RUBBER P-FUSIBLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/7/6/img/56276.jpg)
20 |
AP8212582 - CABOCHON CLIGNOTANT More informationQuantity required : 1 |
||||||
|
21 |
FAISCEAU PHARE AVANT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/5/4/img/56254.jpg)
22 |
DIODE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 APRILIA 1998 > 2005, 650 PEGASO, 1000 CAPONORD, FUTURA-AP8212382 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.jpg)
23 |
SANGLE RUBBER DE BLOC OEM PIAGGIO COMMON A LA RANGE-AP8220283 More informationQuantity required : 1 |
||||||
|
25 |
Porte-ampoule |
||||||
|
26 |
Clignotant av.dr. |
||||||
|
27 |
Clignotant av.g. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/7/4/img/56274.jpg)
28 |
CABOCHON LAMP REAR OEM PIAGGIO 50 SR 1993 > 1996-AP8212580 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/7/5/img/56275.jpg)
29 |
AP8212581 - CABOCHON AR DR. More informationQuantity required : 1 |
||||||
|
30 |
AP8121020-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/7/8/img/56278.jpg)
31 |
AP8212592 - CABOCHON AV.DR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/7/9/img/56279.jpg)
32 |
AP8212593 - CABOCHON AV.G. More informationQuantity required : 1 |
||||||
|
33 |
FAISCEAU FEU ARRIERE |
