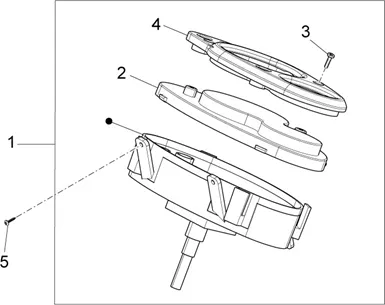

Chassis : 28.14 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/739/Sport_City_One_125_4T_E3_2008-2010_28.14.PNG)
1 |
890320 - TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
1 |
642119 - GROUPE INSTRUMENT More informationQuantity required : 1 |
||||||
|
1 |
642166-GROUP INSTRUMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/6/5/img/67965.jpg)
2 |
VITRE DE PANEL DE EDGE OEM PIAGGIO 50 TYPHOON 2010 > 2016/APRILIA 50 SCARABEO 2010 > 2018-642155 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/1/5/img/69715.jpg)
2 |
VITRE DE INSTRUMENT CLUSTER OEM PIAGGIO 50 TYPHOON 2011 >/APRILIA 50 SR SUPERMOTARD 2011 >-856440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/9/8/img/69798.jpg)
3 |
SCREW BTR INSTRUMENT CLUSTER OEM PIAGGIO 50 TYPHOON 2010 > 2016-860535 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/1/img/67951.jpg)
4 |
ENTOURAGE PANEL DE EDGE OEM PIAGGIO 50 TYPHOON 2011 > 2016/APRILIA 50 SR MOTARD 2012 > 2014-6420190090 More informationQuantity required : 1 |
||||||
|
4 |
853142 - ENCADREMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/4/img/66074.jpg)
5 |
SCREW AUTOTARAUDEUSE (4X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-268596 More informationQuantity required : 4 |
