Vehicle Exploded View - APRILIA SPORT CITY ONE 125 4T E3 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

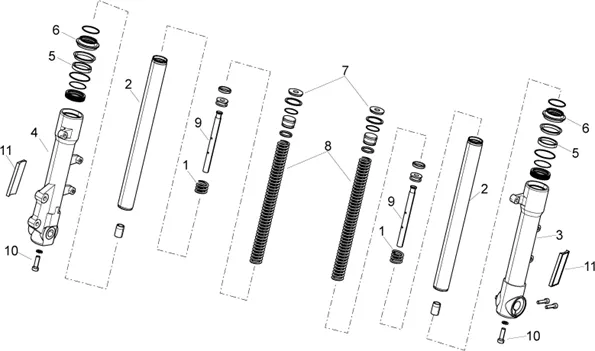

Chassis : 28.04 FOURCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/739/Sport_City_One_125_4T_E3_2008-2010_28.04.PNG)
1 |
858322-SPRING More informationQuantity required : 2 |
||||||
|
2 |
858319-FOURREAU FORK More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/9/9/img/68399.jpg)
3 |
FOURREAU DE FORK RIGHT OEM PIAGGIO 50-125 TYPHOON 2011/APRILIA 50-125 SR MOTARD 2011 >, SPORT-CITY 2008 >-666261 More informationQuantity required : 1 |
||||||
|
3 |
858317-FOURREAU D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/0/0/img/68400.jpg)
4 |
FOURREAU DE FORK LEFT OEM PIAGGIO 50-125 TYPHOON 2011/APRILIA 50-125 SR MOTARD 2011 >, SPORT-CITY 2008 >-666262 More informationQuantity required : 1 |
||||||
|
4 |
858316 - FOURREAU G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/8/img/149098.jpg)
5 |
OIL SEAL (30X42X11) DE FORK OEM PIAGGIO-600485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/1/1/img/68111.jpg)
5 |
OIL SEAL (32X44X10. 5) DE FORK OEM PIAGGIO 50-125 TYPHOON, 50-125 FLY, 125 LIBERTY/APRILIA 125 SR 2011, 50-125 SPORT-CITY ONE-649952 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/4/3/img/67443.jpg)
6 |
PROTECTOR POUSSIERE DE FORK OEM PIAGGIO 50-125 FLY 2006 > 2007, 50 TYPHOON 2011 > 2016/APRILIA 50 SR MOTAR 2011 > 2014, SPORT-CITY-600490 More informationQuantity required : 2 |
||||||
|
6 |
649951-PROTECTOR POUSSIERE * More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/4/4/img/67444.jpg)
7 |
600495-CAP * More informationQuantity required : 2 |
||||||
|
8 |
858320-SPRING A FORK More informationQuantity required : 1 |
||||||
|
9 |
858321-PISTON More informationQuantity required : 2 |
||||||
|
10 |
601401-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/6/7/img/68367.jpg)
11 |
CATADIOPTRE DE FORK FRONT OEM PIAGGIO 50 TYPHOON, FLY 2012 >/GILERA 50 SMT, RCR 2018 >/DERBI SENDA 2018 >/APRILIA 50 SX, RX 2018 >-664045 More informationQuantity required : 2 |
