Vehicle Exploded View - APRILIA SPORT CITY CUBE 250 IE E3 2008-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

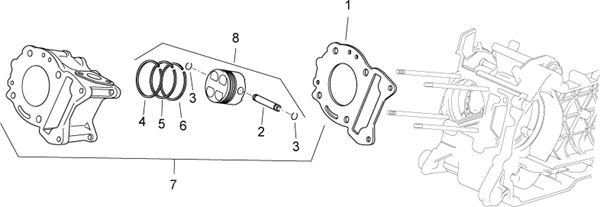

Moteur : 29.40 CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/731/Sport_City_Cube_250_IE_E3_2008-2012_29.40.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/4/img/70574.jpg)
1 |
CYLINDER BASE GASKET (0,04MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875112 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/5/img/70575.jpg)
1 |
CYLINDER BASE GASKET (0,06MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875113 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/6/img/70576.jpg)
1 |
CYLINDER BASE GASKET(0,08MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875114 More informationQuantity required : 1 |
||||||
2 |
829529 - AXE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/6/9/img/70569.jpg)
2 |
875005 - AXE DE PISTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/1/img/70571.jpg)
3 |
875096 - CIRCLIPS More informationQuantity required : 2 |
||||||
|
4 |
843228 - SET SEGMENT More informationQuantity required : 1 |
||||||
|
4 |
874958 - SEGMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/6/1/img/70561.jpg)
5 |
874960 - SEGMENT More informationQuantity required : 1 |
||||||
|
5 |
843228 - SET SEGMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/6/1/8/img/94618.jpg)
6 |
OIL SCRAPER PISTON RING- "PIAGGIO GENUINE PART" 300 MP3, BEVERLY, VESPA GTS -B015161 More informationQuantity required : 1 |
||||||
|
6 |
843228 - SET SEGMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/8/5/img/69285.jpg)
7 |
CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" 250 MP3, BEVERLY, X7, X8, X9, X-EVO, GTS/APRILIA 250 ATLANTIC, SPORT-CITY/GILERA 250 NEXUS -843517 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/1/0/img/70610.jpg)
7 |
CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" 300 MP3, BEVERLY, X7, VESPA GTS/GILERA 300 NEXUS/APRILIA 300 ATLANTIS, SPORT-CITY, SR-MAX, SCARABEO -876457 More informationQuantity required : 1 |
||||||
|
8 |
8435190001 - GROUPE PISTON More informationQuantity required : 1 |
||||||
|
8 |
8435190002 - GROUPE PISTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/8/8/img/69288.jpg)
8 |
8435190003 - GROUPE PISTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/8/9/img/69289.jpg)
8 |
PISTON CAT D "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 250 CC -8435190004 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/1/1/img/70611.jpg)
8 |
PISTON "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 300 CC -8764580001 More informationQuantity required : 1 |
||||||
|
8 |
PISTON "PIAGGIO GENUINE PART" COMMON FOR THE RANGE 300 CC -8764580002 More informationQuantity required : 1 |
||||||
|
8 |
PISTON "PIAGGIO GENUINE PART" COMMON FOR THE RANGE 300 CC -8764580003 More informationQuantity required : 1 |
||||||
|
8 |
PISTON "PIAGGIO GENUINE PART" COMMON FOR THE RANGE 300 CC -8764580004 More informationQuantity required : 1 |
