Vehicle Exploded View - APRILIA SPORT CITY 200 E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

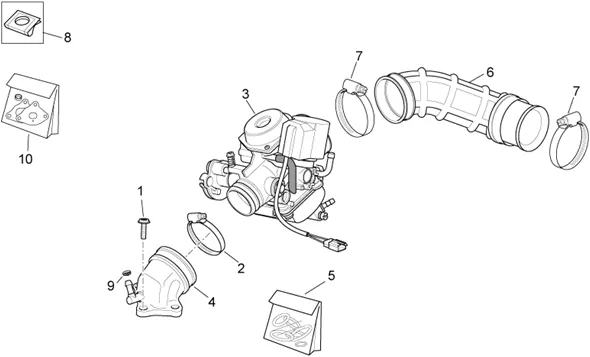

Moteur : 29.27 CARBURATEUR I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/279/Sport_City_200_E3_2006-2008_29.27.PNG)
1 |
Vis bride |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/3/2/img/75332.jpg)
2 |
CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/4/4/img/73144.jpg)
3 |
CARBURETTOR OEM PIAGGIO 125 BEVERLY 2007 > 2010, X7, CARNABY/GILERA 125 NEXUS 2007 > 2008/APRILIA 125 ATLANTIC 2006 > 2012, SPORT-CITY-CM128216 More informationQuantity required : 1 |
||||||
|
3 |
CM128211-CARBURETTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/1/1/img/72711.jpg)
4 |
FITTING D'ADMISSION OEM PIAGGIO 125 MP3 2007 >, X-EVO 2007 >, VESPA GTS 2007 >/APRILIA 125-250 ATLANTIC 2006 >, SPORT-CITY 2006 >, SCARABEO 2006 >-B016578 More informationQuantity required : 1 |
||||||
|
5 |
494921 - JEU DE JOINTS More informationQuantity required : 1 |
||||||
|
6 |
849658 - MANCHON More informationQuantity required : 1 |
||||||
|
6 |
845995-SLEEVE More informationQuantity required : 1 |
||||||
|
7 |
AP8102701 - FASCETTA D.40-60 X 9 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
9 |
AP8101770-CLAMP CLIC More informationQuantity required : 1 |
||||||
|
10 |
872479 - POWER KIT 80 KM/H More informationQuantity required : 1 |
