Vehicle Exploded View - APRILIA SPORT CITY 200 E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

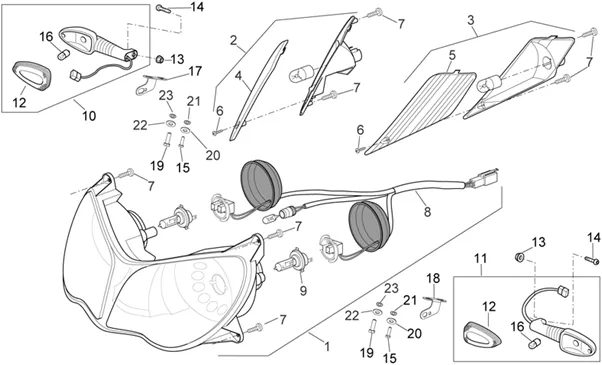

Chassis : 28.39 FEU AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/279/Sport_City_200_E3_2006-2008_28.39.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/4/1/img/69641.jpg)
1 |
852367 - PHARE AVANT More informationQuantity required : 1 |
||||||
1 |
AP8127696 - FANALE ANTERIORE More informationQuantity required : 1 |
||||||
|
2 |
AP8127562-INDICATORE DIREZ. ANT. DX More informationQuantity required : 1 |
||||||
|
2 |
AP8127925-TRANSPARENT More informationQuantity required : 1 |
||||||
|
2 |
AP8187077 - TRANSPARENT More informationQuantity required : 1 |
||||||
|
2 |
AP8187082 - VITRE CLIGNOTANT; More informationQuantity required : 1 |
||||||
|
2 |
AP8187084 - VITRE CLIGNOTANT; More informationQuantity required : 1 |
||||||
|
2 |
AP8187086 - VITRE CLIGNOTANT; More informationQuantity required : 1 |
||||||
|
3 |
AP8127561-INDICATORE DIREZ. ANT. SX More informationQuantity required : 1 |
||||||
|
3 |
AP8127926 - TRANSPARENT More informationQuantity required : 1 |
||||||
|
3 |
AP8187078 - TRANSPARENT More informationQuantity required : 1 |
||||||
|
3 |
AP8187083 - VITRE CLIGNOTANT; More informationQuantity required : 1 |
||||||
|
3 |
AP8187085 - VITRE CLIGNOTANT; More informationQuantity required : 1 |
||||||
|
3 |
AP8187087 - VITRE CLIGNOTANT; More informationQuantity required : 1 |
||||||
|
4 |
AP8590040-VETRO INDICATORE DIR. DX More informationQuantity required : 1 |
||||||
|
5 |
AP8590047-VETRO INDICATORE DIR. SX More informationQuantity required : 1 |
||||||
|
6 |
AP8590041-SCREW 2, 9X9, 5 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
7 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 8 |
||||||
|
8 |
AP8127698-CABLAGGIO FANALE ANT. C/CUFFIA More informationQuantity required : 1 |
||||||
|
9 |
AMPOULE H7 55W 12V |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/0/4/img/71604.jpg)
10 |
FLASHER-FRONT-RIGHT "PIAGGIO GENUINE PART" APRILIA 125-250 SPORT-CITY, 1000 CAPONORD/MOTO-GUZZI 850-1200 BREVA, NORGE -AP817514 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/0/5/img/71605.jpg)
11 |
FLASHER-FRONT-LEFT "PIAGGIO GENUINE PART" APRILIA 125-250 SPORT-CITY, 1000 CAPONORD/MOTO-GUZZI 850-1200 BREVA, NORGE -AP817515 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/0/6/img/71606.jpg)
12 |
CABOCHON DE INDICATOR OEM PIAGGIO APRILIA 125-250 SPORT-CITY, 1000 CAPONORD/MOTO-GUZZI 850-1200 BREVA, NORGE-AP8127552 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
13 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
14 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
15 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150137 More informationQuantity required : 2 |
||||||
|
16 |
AMPOULE/LAMPE 12V 10W RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-AP8127489 More informationQuantity required : 2 |
||||||
|
17 |
852364 - SUPPORT More informationQuantity required : 1 |
||||||
|
18 |
853007 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/5/img/66335.jpg)
19 |
SCREW BTR (8X16) OEM PIAGGIO COMMON A LA RANGE-319165 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.jpg)
20 |
WASHER PLATE (6, 4X12, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150014 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
21 |
WASHER ELASTIC COURBE (6X12) OEM PIAGGIO COMMON A LA RANGE-658830 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
22 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
23 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 2 |
