Vehicle Exploded View - MOTO-GUZZI SP 1000 SP II 1000 1983-1988
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

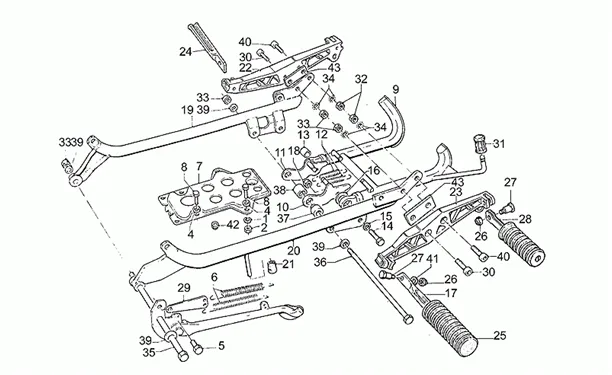

Chassis : 33.17 REPOSE-PIEDS BEQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/514/SP_II_1000_1983-1988_33.17.PNG)
1 |
GU95021108-WASHER ELASTIC More informationQuantity required : 2 |
||||||
|
2 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 4 |
||||||
|
4 |
GU95004208 - RONDELLE More informationQuantity required : 7 |
||||||
|
5 |
GU99105129 - PIVOT More informationQuantity required : 1 |
||||||
|
6 |
GU17434060 - RESSORT More informationQuantity required : 2 |
||||||
|
7 |
Plaque |
||||||
|
8 |
GU98054416-SCREW M8X16 More informationQuantity required : 5 |
||||||
|
9 |
GU03430311 - CAVALLETTO CENTRALE More informationQuantity required : 1 |
||||||
|
10 |
GU03433270-PLATE SX More informationQuantity required : 1 |
||||||
|
11 |
GU03432970-PLATE DX More informationQuantity required : 1 |
||||||
|
12 |
GU12434001 - RESSORT RAPPEL BEQ. More informationQuantity required : 2 |
||||||
|
13 |
GU14433500-BUSH G. More informationQuantity required : 2 |
||||||
|
14 |
GU98052545-SCREW More informationQuantity required : 2 |
||||||
|
15 |
GU95004210 - RONDELLE 10,2X18X2 More informationQuantity required : 2 |
||||||
|
16 |
GU14433400-WASHER ELASTIC More informationQuantity required : 2 |
||||||
|
17 |
GU28441810-TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/4/7/img/73547.jpg)
18 |
GU92630110-NUT M10X1, 5 More informationQuantity required : 2 |
||||||
|
19 |
GU17420350 - BRAS More informationQuantity required : 1 |
||||||
|
20 |
BRAS |
||||||
|
21 |
GU14423800-RUBBER More informationQuantity required : 1 |
||||||
|
22 |
Support repose-pieds dte |
||||||
|
23 |
Support r-p.G |
||||||
|
24 |
GU28440710 - TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/1/5/5/img/130155.jpg)
25 |
FOOTREST "PIAGGIO GENUINE PART" MOTO-GUZZI STRADA, TARGA, V50, V75, SP, LE-MANS -GU28443201 More informationQuantity required : 2 |
||||||
|
26 |
GU92630206-NUT M6X1 More informationQuantity required : 4 |
||||||
|
27 |
VIS |
||||||
|
28 |
REPOSE-PIEDS |
||||||
|
29 |
Plaquette |
||||||
|
30 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/6/7/img/129167.jpg)
31 |
RUBBER DE PEDALE STAND OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU13432640 More informationQuantity required : 1 |
||||||
|
32 |
GU92602512 - ECROU BAS M12X1,25 More informationQuantity required : 2 |
||||||
|
33 |
GU92602312-NUT More informationQuantity required : 6 |
||||||
|
34 |
GU95022112-WASHER EVENT. More informationQuantity required : 4 |
||||||
|
35 |
GU03429500 - PERNO More informationQuantity required : 1 |
||||||
|
36 |
GU03429600-PERNO More informationQuantity required : 1 |
||||||
|
37 |
GU14429900 - ENTRETOISE EXTERNE G. More informationQuantity required : 2 |
||||||
|
38 |
GU14429800 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
39 |
GU95000213-WASHER More informationQuantity required : 4 |
||||||
|
40 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/0/img/132750.jpg)
41 |
WASHER SPRING D6 OEM PIAGGIO COMMON A LA RANGE-GU95129115 More informationQuantity required : 2 |
||||||
|
42 |
GU92630108-NUT More informationQuantity required : 1 |
||||||
|
43 |
GU17444250-PLATE More informationQuantity required : 2 |
