Vehicle Exploded View - MOTO-GUZZI SP 1000 SP II 1000 1983-1988
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

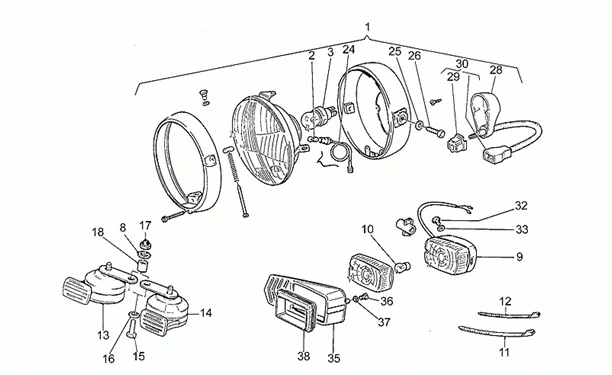

Chassis : 33.07 FEU AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/514/SP_II_1000_1983-1988_33.07.PNG)
1 |
GU28740533 - FEU AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/9/img/65759.jpg)
2 |
AMPOULE/LAMPE 12V 4W BA9S OEM PIAGGIO COMMON A LA RANGE-163015 More informationQuantity required : 1 |
||||||
|
3 |
GU93450231 - LAMPE (OU AMPOULE) 12V 45/40W More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
8 |
WASHER SPRING (6. 7X11. 8X0. 4) OEM PIAGGIO COMMON A LA RANGE-GU61013800 More informationQuantity required : 2 |
||||||
|
9 |
Clignotant AV |
||||||
|
10 |
|
||||||
|
11 |
GU14609650-CLAMP 3, 6X20, 6 More informationQuantity required : 20 |
||||||
|
12 |
GU49609601-CLAMP 2, 4X92 More informationQuantity required : 4 |
||||||
|
13 |
GU28743761 - AVERTISSEUR TON GRAVE More informationQuantity required : 1 |
||||||
|
14 |
GU28743760 - AVERTISSEUR TON AIGU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
15 |
SCREW M6X16 OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU98084316 More informationQuantity required : 2 |
||||||
|
16 |
GU95000206-WASHER More informationQuantity required : 4 |
||||||
|
17 |
GU92781062-NUT More informationQuantity required : 2 |
||||||
|
18 |
GU95100125-WASHER More informationQuantity required : 2 |
||||||
|
24 |
GU17740405 - PORTE AMPOULE More informationQuantity required : 1 |
||||||
|
25 |
GU95120105-WASHER ELASTIC More informationQuantity required : 1 |
||||||
|
26 |
GU98054520-SCREW M10X20 More informationQuantity required : 1 |
||||||
|
28 |
GU19740404 - COUVERCLE More informationQuantity required : 1 |
||||||
|
29 |
Bloc démarreur |
||||||
|
30 |
Bloc démarreur |
||||||
|
32 |
GU98054312-SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
33 |
WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206 More informationQuantity required : 4 |
||||||
|
35 |
Cache clignotants AV |
||||||
|
36 |
Vis |
||||||
|
37 |
GU95004204 - RONDELLE More informationQuantity required : 4 |
||||||
|
38 |
GU17750765 - GAINE DE CABLE More informationQuantity required : 2 |
