Vehicle Exploded View - DERBI SONAR 150 Sonar 150 4T 2009 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

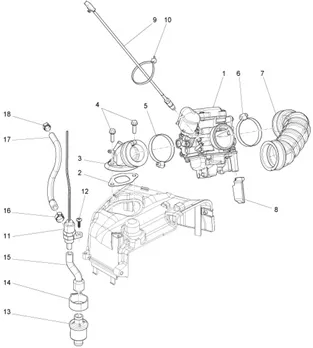

Moteur : 01.39 CARBURATEUR COMPLET - RACCORD D'ADMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1059/Sonar_150_4T_2009_(EMEA)_01.39.png)
1 |
CM156011-CARBURETTOR CVEK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/4/6/img/70346.jpg)
2 |
GASKET MANIFOLD/FITTING INTAKE OEM PIAGGIO 125 FLY, LIBERTY, VESPA LX/APRILIA 125 SPORT-CITY 2015 <-871167 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/0/3/img/69603.jpg)
3 |
FITTING/MANIFOLD INTAKE MAXI SCOOTER OEM PIAGGIO 125 FLY, LIBERTY, X8-STREET, VESPA LX, VESPA S/APRILIA 125 SPORT-CITY, SR-MOTARD, MOJITO (FITTING)-849465 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
4 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/3/2/img/75332.jpg)
5 |
CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833 More informationQuantity required : 1 |
||||||
|
6 |
CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/0/8/img/68808.jpg)
7 |
SLEEVE ENTRE CARBURETTOR ET HOUSING AIR FILTER OEM PIAGGIO 125 LIBERTY, FLY, VESPA LX, VESPA-S-829001 More informationQuantity required : 1 |
||||||
|
8 |
843962-SILENBLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/6/0/img/68860.jpg)
9 |
RESISTOR OF CARBURETTOR OEM PIAGGIO 50-125 FLY 2005 > 2011, VESPA LX 2005 >, VESPA-S 2007 >, LIBERTY 2006 > 2016-82961R6 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
10 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/8/6/img/69586.jpg)
11 |
SONDE DE AIR FILTER OEM PIAGGIO 150 VESPA-S, LIBERTY, FLY, VESPA LX 2006 > 2013-848962 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
12 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 1 |
||||||
|
13 |
871825-AIR FILTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/8/img/66118.jpg)
14 |
BRACKET ELASTIC OEM PIAGGIO COMMON A LA RANGE-272842 More informationQuantity required : 1 |
||||||
|
15 |
871741-BOX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/4/img/72874.jpg)
16 |
CLAMP (12-22MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001913 More informationQuantity required : 1 |
||||||
|
17 |
871740-TUBE AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/3/img/72863.jpg)
18 |
CLAMP SERRE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001901 More informationQuantity required : 1 |
