Vehicle Exploded View - DERBI SONAR 150 Sonar 150 4T 2009 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

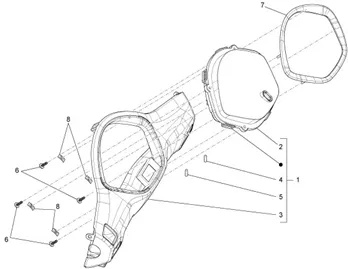

Guidon/direction : 03.02 GROUPE INSTRUMENTS - CRUSCOTTO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1059/Sonar_150_4T_2009_(EMEA)_03.02.png)
1 |
58220R - GROUPE INSTRUMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/3/1/img/67831.jpg)
2 |
VITRE DE INSTRUMENT CLUSTER ECIE 4 TROUS OEM PIAGGIO 50-125 LIBERTY 2005 >, VESPA LX 2005 >, 125 VESPA GTS 2007 >-639414 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/8/2/img/67882.jpg)
2 |
VITRE DE INSTRUMENT CLUSTER PRICOL 10 TROUS OEM PIAGGIO 50-125 LIBERTY 2005 >, VESPA LX 2005 >, 125 VESPA GTS 2007 >-640504 More informationQuantity required : 1 |
||||||
|
3 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/0/img/65760.jpg)
4 |
AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634 More informationQuantity required : 3 |
||||||
|
5 |
AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
6 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 4 |
||||||
|
7 |
657094-SURROUND More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/6/img/63846.jpg)
8 |
PLATE/CLIPS ELASTIC OEM PIAGGIO COMMON A LA RANGE-008108 More informationQuantity required : 4 |
