Vehicle Exploded View - GILERA SMT 50 e4 2018-2019 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

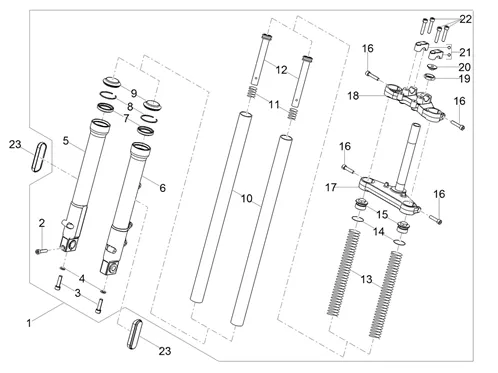

Suspensions : 04.100 FOURCHE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/855/SMT_50_e4_2018-2019_(EMEA)_04.100.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/3/9/2/img/149392.jpg)
1 |
FORK OEM PIAGGIO GILERA 50 SMT, RCR 2018 >/DERBI 50 SENDA 2018 >/APRILIA 50 SX 2018 >-2B005154 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/5/2/img/63652.jpg)
2 |
SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-00004184500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/2/0/1/img/70201.jpg)
3 |
SCREW BTR (D10) INFERIEURE DE FOURREAU DE FORK OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT, RCR 2011 >/APRILIA 50 SX, RX 2018 >-866586 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/2/0/2/img/70202.jpg)
4 |
WASHER FORK INFERIEURE OEM PIAGGIO GILERA 50 SMT 2011 >/DERBI 2010 >-866587 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/9/3/img/151793.jpg)
5 |
FOURREAU RIGHT DE FORK OEM PIAGGIO 50 SMT GILERA 2018 >/DERBI 50 SENDA 2018 >/SX APRILIA 2018 >-2B004861 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/9/4/img/151794.jpg)
6 |
FOURREAU LEFT DE FORK OEM PIAGGIO 50 SMT GILERA 2018 >/DERBI 50 SENDA 2018 >/SX APRILIA 2018 >-2B004862 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/2/0/6/img/70206.jpg)
7 |
OIL SEAL (37X49X8/10) DE FORK OEM DERBI SENDA 2007 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-866592 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/2/0/5/img/70205.jpg)
8 |
ANNEAU/CLIPS DE FORK OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT 2011 >/APRILIA 50 SX 2018 >-866591 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/2/0/4/img/70204.jpg)
9 |
PROTECTOR POUSSIERE DE FORK OEM PIAGGIO 50 GILERA SMT, RCR 2011 >/DERBI SENDA 2010 >/APRILIA SX 2018 >-866590 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/2/0/7/img/70207.jpg)
10 |
TUBE DE FORK (D37) OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT, RCR 2011 >-866593 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/2/0/3/img/70203.jpg)
11 |
866588-ACELERADOR More informationQuantity required : 2 |
||||||
12 |
866597-CTO HIDRAULICO SDA-SM More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/2/0/8/img/70208.jpg)
13 |
FORK SPRING OEM DERBI 50 X TREM 2010 >/GILERA 50 SMT, RCR 2011 >/APRILIA 50 SX, RX 2011 >-866596 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/2/0/0/img/70200.jpg)
14 |
GASKET OF CAP DE TUBE DE FORK (CONVIENT FOR TUBE 158767) OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/APRILIA 50 SX 2018 >-866584 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/9/9/img/70199.jpg)
15 |
CAP DE TUBE DE FORK (CONVIENT FOR TUBE 158767) OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT, RCR 2011 >/APRILIA 50 SX 2018 >-866583 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/9/8/img/70198.jpg)
16 |
SCREW BTR (8X35) OEM PIAGGIO COMMON A LA RANGE-866582 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/9/5/img/151795.jpg)
17 |
TE DE FORK LOWER OEM PIAGGIO GILERA 50 SMT, RCR 2018 >/DERBI 50 SENDA 2018 >/APRILIA 50 SX, RX 2018 >-2B004860 More informationQuantity required : 1 |
||||||
|
18 |
PLATE SUPERIEURE DE FORK OEM PIAGGIO 50 SMT 2018 >-2B004859 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/9/4/img/70194.jpg)
19 |
NUT PLATINE SUPERIEURE DE FORK OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2010 >/APRILIA 50 SX, RX 2011 >-866578 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/9/3/img/70193.jpg)
20 |
CAP/PROTECTOR POUSSIERE NUT DE FORK OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT, RCR 2011 >/APRILIA 50 SX, RX 2011 >-866577 More informationQuantity required : 1 |
||||||
|
21 |
2B004858-PONTET More informationQuantity required : 1 |
||||||
|
22 |
SCREW BTR (8X35) OEM PIAGGIO COMMON A LA RANGE-866582 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/6/7/img/68367.jpg)
23 |
CATADIOPTRE DE FORK FRONT OEM PIAGGIO 50 TYPHOON, FLY 2012 >/GILERA 50 SMT, RCR 2018 >/DERBI SENDA 2018 >/APRILIA 50 SX, RX 2018 >-664045 More informationQuantity required : 2 |
