Vehicle Exploded View - GILERA SMT 50 e4 2018-2019 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

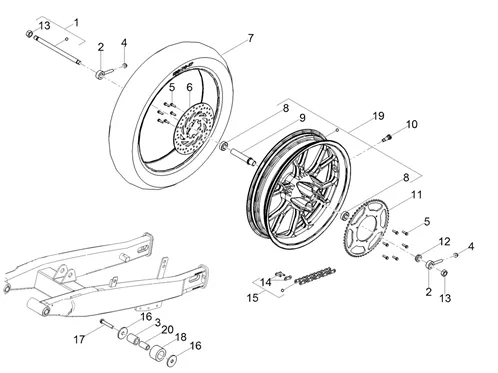

Roues : 05.020 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/855/SMT_50_e4_2018-2019_(EMEA)_05.020.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/9/8/img/151798.jpg)
1 |
WHEEL SPINDLE REAR (L 240) (D15) OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT, RCR 2018 >/APRILIA 50 SX, RX 2018 >-2B004545 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/3/6/1/img/149361.jpg)
2 |
TENDEUR DE CHAIN OEM PIAGGIO 50 GILERA SMT, RCR 2018 >/DERBI SENDA 2018 >/APRILIA SX 2018 >-2B0034645 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/1/6/img/46616.jpg)
3 |
SPACER PLASTIQUE (14X19X25) OEM PIAGGIO COMMON A LA RANGE-AP8120568 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
4 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/5/9/img/151759.jpg)
5 |
SCREW FLANGE TH (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B004560 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/5/4/img/70154_20260526172827.jpg)
6 |
BRAKE DISC (D218/INT57/6TROUS) REAR OEM PIAGGIO 50 GILERA SMT, RCR 2011 >/DERBI SENDA SM 2010 >/APRILIA SX, RX 2011 >, 50-125 RS4 2011 >-866115 More informationQuantity required : 1 |
||||||
7 |
899860-TYRE AR SAVATECH 130/70X17 " More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/8/1/img/67481.jpg)
8 |
BEARING (15X35X11) REAR WHEEL OEM PIAGGIO 50 GILERA SMT 2011 >/DERBI SENDA 2003 >-601345 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/1/1/img/64511.jpg)
9 |
SPACER DE REAR WHEEL INTERNE OEM PIAGGIO 50 GILERA SMT 2011 > 2019, LAVERDA L SM 2019/DERBI SENDA SM, XTREME 2010 > 2020/APRILIA SX, RX 2006 > 2020-00H01311091 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/6/img/72136.jpg)
10 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-AP8201546 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/3/9/3/img/149393.jpg)
11 |
COURONNE 59 TEETH OEM PIAGGIO 50 GILERA SMT 2018 >/DERBI SENDA SM 2018 >-2B004446 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/2/2/img/70322.jpg)
12 |
WASHER WHEEL SPINDLE REAR OEM PIAGGIO 50 GILERA 50 SMT, RCR 2011 >/DERBI SENDA SM 2003 >/APRILIA SX, RX 2011 >-867301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/1/4/img/64214.jpg)
13 |
NUT FRONT WHEEL OU REAR 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2003 >/APRILIA RS4 2011 >, 50 SX, RX 2011 >-00H00300672 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/4/0/5/img/149405.jpg)
14 |
CLIP QUICK (REGINA) OEM DERBI 50 2014 >/APRILIA RS, RX, SX 2014 >-2B004620 More informationQuantity required : 1 |
||||||
|
14 |
2B005115-CONNECTING LINK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/1/0/img/151110.jpg)
15 |
CHAIN 420/134M OEM PIAGGIO 50 GILERA SMT 2018 >/DERBI SENDA 2018 >-2B005116R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/2/4/img/50824.jpg)
16 |
WASHER PLATE (8, 4X32X2, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150019 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/3/img/71953.jpg)
17 |
SCREW FLANGE TH (8X45) OEM PIAGGIO COMMON A LA RANGE-AP8152291 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/1/7/img/46617.jpg)
18 |
ROULETTE TENDEUR DE CHAIN OEM PIAGGIO 50 GILERASMT, RCR 2018 >/DERBI SENDA 2018 >/APRILIA SX, RX 2018 >-AP8120569 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/1/5/img/64515.jpg)
19 |
RIM/REAR WHEEL 17 POUCES OEM DERBI 50 SENDA SM > 2005/GILERA 50 SMT 2011 >/APRILIA 50 SX 2011 >-00H01312381 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/1/6/img/46916.jpg)
20 |
SPACER REAR WHEEL OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX 2018 >-AP8121672 More informationQuantity required : 1 |
All the exploded views of this vehicle
-
