Vehicle Exploded View - GILERA SMT 50 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

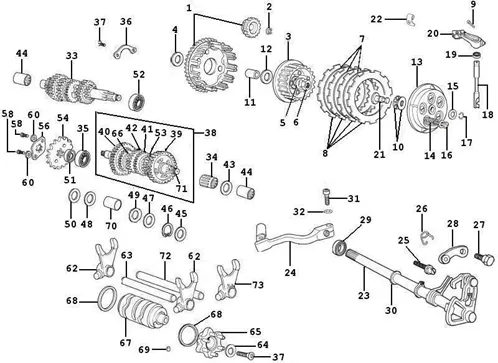

Moteur : 01.31 COMPOSANTS DE LA BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.31.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/6/5/img/66965.jpg)
1 |
TAMBOUR CLUTCH (D23) 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2006 > 2017/APRILIA 50 SX, RX 2006 > 2013, RS 2006 > 2010, RS4 2011 >/DERBI 50 SENDA 2006 > (PREVOIR SPROCKET FOR MODEL EURO 2)-497643 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/0/img/69490.jpg)
2 |
NUT EPAULE SERRAGE SPROCKET ENGINE (10X100) OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2005 >/APRILIA SX, RX, RS 2006 >, RS-4 2011 >-847217 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/8/img/69428.jpg)
3 |
NOIX D'CLUTCH OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50-125 RS4 2011 >, 50 SX, RX 2006 >, 125 RX, SX 2018 >-847045 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/1/img/69491.jpg)
4 |
WASHER CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 >/APRILIA 50-125 SX, RX, RS-847218 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/0/8/img/70608.jpg)
5 |
WASHER BRAKE D'EMBRAYAGE 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI 50 SENDA 2006 >/APRILIA 50 RS4 2011 >, 50 RX, SX 2006 >-876418 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/2/img/69492.jpg)
6 |
NUT NOIX CLUTCH OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI 50 SENDA 2000 >-847221 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/6/img/69426.jpg)
7 |
DISC CLUTCH MENE OEM DERBI 50 SENDA, GPR 2000 >/GILERA 50 SMT, RCR/APRILIA 50 RS, TUONO, SX, RX 2006 >-847043 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/7/img/69427.jpg)
8 |
DISC CLUTCH MENANT OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS-847044 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
9 |
SCREW BTR HEAD BOMBEE (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-667152 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/3/img/69493.jpg)
10 |
BEARING DE ROD OF CONTROL CLUTCH OEM 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >, RS4 2011 >-8472226 More informationQuantity required : 1 |
||||||
|
11 |
TAMBOUR CLUTCH (D23) 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2006 > 2017/APRILIA 50 SX, RX 2006 > 2013, RS 2006 > 2010, RS4 2011 >/DERBI 50 SENDA 2006 > (PREVOIR SPROCKET FOR MODEL EURO 2)-497643 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/2/1/6/img/187216.jpg)
12 |
WASHER CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA SX, RX, RS 2006 >-1A009075 More informationQuantity required : 1 |
||||||
|
12 |
WASHER CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA SX, RX, RS 2006 >-1A009075 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/9/img/69429.jpg)
13 |
PLATEAU D'EMBRAYAGE OEM 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA 50-125 RS4 2011 >, 50 SX, RX 2006 >, 125 SX, RX 2018 >-847046 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/3/0/img/69430.jpg)
14 |
SPRING DE PLATEAU CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 > APRILIA SX, RX, RS 2006 >-847047 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/5/img/69495.jpg)
15 |
WASHER DE SCREW PLATE D'APPUIS CLUTCH OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX, RS-847224 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/3/1/img/69431.jpg)
16 |
SCREW CRUCIFORME (5X35) PLATEAU CLUTCH OEM DERBI SENDA 2005 >/GILERA SMT, RCR 2006 >/APRILIA 50-125 RS4 2011 >, 50 SX, RX 2006 >, 125 SX, RX 2018 >-847048 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/2/img/63602.jpg)
17 |
CIRCLIP FOR CLUTCH CONTROL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00000047110 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/5/6/img/69456.jpg)
18 |
SPINDLE CLUTCH OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX, RS 2006 > 2010, RS4 2011 >-847083 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/4/9/img/69449.jpg)
19 |
OIL SEAL (12X20X5) SPINDLE CONTROL CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX, RS 2006 >-847075 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/7/0/img/73270.jpg)
20 |
CLUTCH RELEASE SHAFT "PIAGGIO GENUINE PART" 50 APRILIA RS4 2011> -CM151201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/4/img/69494.jpg)
21 |
PIVOT DE BUTEE D'EMBRAYAGE OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA RX, SX 2006 >, RS 2006 > 2010, RS4 2011 >-847223 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/6/0/img/69460.jpg)
22 |
BRACKET/GUIDE DE CABLE CLUTCH OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 RS 2006 > 2010, RS4 2011 >, SX, RX 2006 >-847090 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/5/4/5/img/176545.jpg)
23 |
SPINDLE GEAR LEVER (LLIVRE NU) OEM DERBI 50 SENDA 2010 >/APRILIA 50 RS 2006 > 2010, RS4 2011 >, SX-RX 2006 >/GILERA 50 SMT, RCR 2006 >-1A004355 More informationQuantity required : 1 |
||||||
|
23 |
SPINDLE GEAR LEVER (LLIVRE NU) OEM DERBI 50 SENDA 2010 >/APRILIA 50 RS 2006 > 2010, RS4 2011 >, SX-RX 2006 >/GILERA 50 SMT, RCR 2006 >-1A004355 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/2/7/img/64727.jpg)
24 |
SELECTEUR/LEVER DE SPEED OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA SX, RX 2006 >-00H027034215 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/2/6/8/img/142268.jpg)
25 |
SCREW RAPPEL SPRING SHAFT OF SELECTEUR OEM DERBI 50 SENDA 2000 > 2012/GILERA 50 SMT, RCR 2006/APRILIA 50 SX, RX 2006 > 2010-B017981 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/7/0/img/149170.jpg)
26 |
SPRING GEAR LEVER 50 A BOX OEM 50 GILERA SMT, RCR 2006 >/DERBI 50 SENDA 2006 >/APRILIA RS4 2011 >, 50 SX, RX 2006 >-1A010665 More informationQuantity required : 1 |
||||||
27 |
BOULON |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/7/1/img/149171.jpg)
28 |
LEVER INTERNE SELECTION VITESSES OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 >, SX, RX-1A010685 More informationQuantity required : 1 |
||||||
|
29 |
OIL SEAL (12X20X5) SPINDLE CONTROL CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX, RS 2006 >-847075 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/8/img/69498.jpg)
30 |
WASHER DE CALAGE SPINDLE SELECTION DE VITESSES OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX, RS 2006 >-8472286 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
31 |
SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8150165 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/0/img/63790.jpg)
32 |
WASHER GROWER D6 OEM PIAGGIO COMMON A LA RANGE-00442060002 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/7/img/69417.jpg)
33 |
SHAFT PRIMAIRE BOX OF SPEED OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2011 >/APRILIA 50 SX, RX, RS 2011 >-847027 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/6/img/69526.jpg)
34 |
CAGE A AIGUILLES (8X15X18) SHAFT SECONDAIRE BOX OF VITESSES OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX, RS 2006 >-847544 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/5/9/2/9/img/205929.jpg)
35 |
BEARING (17X40X12) SHAFT SECONDAIRE BOX OF VITESSES OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 > APRILIA SX, RX, RS 2006 >-8470866 More informationQuantity required : 1 |
||||||
|
35 |
BEARING (17X40X12) SHAFT SECONDAIRE BOX OF VITESSES OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 > APRILIA SX, RX, RS 2006 >-8470866 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/4/img/69414.jpg)
36 |
PLATE MAINTIEN BEARING BOX OF SPEED OEM PIAGGIO 50 GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2006 >-847021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/9/img/127169.jpg)
37 |
SCREW BTR HEAD FRAISEE (5X10) BOX OF SPEED OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2010 >/APRILIA 50 SX, RX, RS-1A003116 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/8/img/69418.jpg)
38 |
SHAFT DE BOX OF SPEED SECONDAIRE COMPLETE OEM DERBI 50 SENDA 2006 >/APRILIA 50 RS, RX, SX/GILERA 50 SMT, RCR 2006 >-847028 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/6/8/img/69468.jpg)
39 |
GEAR 1EME OEM DERBI 50 SENDA/GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS-847153 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/2/img/69472.jpg)
40 |
GEAR 2EME OEM DERBI 50 SENDA/GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS-847157 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/0/img/69470.jpg)
41 |
GEAR 3EME OEM DERBI 50 SENDA 2005 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX 2006 >, RX 2006 >, RS 2006 > 2010, RS-4 2011 >-847155 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/1/img/69471.jpg)
42 |
GEAR 4EME OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 >/APRILIA SX, RX, RS-847156 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/3/1/img/69531.jpg)
43 |
WASHER SHAFT SECONDAIRE BV OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA/APRILIA RS, SX, RX-847549 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/5/img/69485.jpg)
44 |
CAGE A AIGUILLES SHAFT SECONDAIRE BV OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX, RS 2006 >-847211 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/1/6/img/146216.jpg)
45 |
871708 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/5/img/69525.jpg)
46 |
CIRCLIPS BOX OF SPEED OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS-847542 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/3/0/img/69530.jpg)
47 |
WASHER (16X23. 5X1) BOX OF SPEED OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT 2006 > More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/4/img/69524.jpg)
48 |
WASHER (18X23X1) OEM PIAGGIO COMMON A LA RANGE-847541 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/8/img/69528.jpg)
49 |
WASHER PLATE (17, 1X25X0, 8) OEM PIAGGIO COMMON A LA RANGE-847546 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/7/img/69527.jpg)
50 |
WASHER SHAFT SECONDAIRE (1, 2X17X28) OEM DERBI 50 SENDA/GILERA 50 SMT, RCR/APRILIA 50-125 RX, SX, RS, TUONO-847545 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/2/img/69412.jpg)
51 |
GASKET SORTIE DE BOX (35X16X7) OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RX, SX, RS 2006 >-847019 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/3/img/69483.jpg)
52 |
BEARING (17X40X12) SHAFT PRIMAIRE BV OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA RS, RX, SX 2006 >-847209 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/6/9/img/69469.jpg)
53 |
GEAR 5EME OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 >/APRILIA SX, RX, RS-847154 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/2/2/img/69922.jpg)
54 |
SPROCKET 11 TEETH OEM PIAGGIO 50 GILERA SMT 2006 >, RCR 2006 >/DERBI SENDA 2006 >/APRILIA RS 2006 >, RS4 2011 >, RX 2006 >, SX 2006 >-86177R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/3/2/img/64732.jpg)
56 |
WASHER DE SECURITE/PLATE MAINTIEN DE SPROCKET 50 A BOX OEM PIAGGIO 50 A BOX GILERA RCR, SMT 2006 >/APRILIA 50 RS4 2011 >, RS, RX, SX 2006 >-00H02800421 More informationQuantity required : 1 |
||||||
|
56 |
863136 - AXE A CAMES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
58 |
SCREW BTR (4X10) OEM PIAGGIO COMMON A LA RANGE-AP8152043 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/8/img/63598.jpg)
60 |
WASHER PLATE DE MAINTIEN SPROCKET BV (4) OEM PIAGGIO GILERA 50 SMT, RCR 2006 > 2010/DERBI 50 SENDA 2006 > 2010APRILIA 50 SX, RX, RS 2006 > 2010-00000033040 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/3/5/img/68935.jpg)
62 |
FOURCHETTE BOX OF SPEED 2EME OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RX, SX 2006 >, RS 2006 > 2010, RS4 2011 >, 125 RX, SX 2018 >, RS4 2011 >, TUONO 2017 >-83073R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/0/img/69420.jpg)
63 |
SHAFT OF FOURCHETTE DE BOX OF SPEED OEM DERBI 50 SENDA 2005 >/GILERA SMT 2006 >/APRILIA RS, RX, SX 2006 >-847030 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/7/img/69487.jpg)
64 |
WASHER TAMBOUR DE SELECTION DE VITESSES OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2006 >/APRILIA SX, RX, RS-847214 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/3/img/69423.jpg)
65 |
WHEEL DE SELECTION CHANGEMENT DE SPEED OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA RX, SX 2006 >, RS 2006 >, RS4 2011 >-847038 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/3/img/69473.jpg)
66 |
GEAR 6EME OEM PIAGGIO GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS-847158 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/3/5/0/img/157350.jpg)
67 |
TAMBOUR CONTROL DE VITESSES/DESMODROMIQUE OEM DERBI 50 SENDA 2005 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX-1A011714 More informationQuantity required : 1 |
||||||
|
67 |
TAMBOUR CONTROL DE VITESSES/DESMODROMIQUE OEM DERBI 50 SENDA 2005 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX-1A011714 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/2/img/69422.jpg)
68 |
WASHER DE TAMBOUR DE SELECTION DE SPEED OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS 2006 >-847036 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/6/img/69486.jpg)
69 |
SPINDLE ROLLER DE CONTROL SPEED OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS-847213 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/9/img/69529.jpg)
70 |
BUSH/BUSH BOX OF SPEED OEM DERBI 50 SENDA 2005 >/GILERA 50 SMT-847547 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/4/img/69474.jpg)
71 |
SHAFT SECONDAIRE BOX OF SPEED OEM DERBI 50 SENDA 2003 >/GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX-847159 More informationQuantity required : 1 |
||||||
|
72 |
BEARING (17X40X12) SHAFT PRIMAIRE BV OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA RS, RX, SX 2006 >-847209 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/3/4/img/68934.jpg)
73 |
FOURCHETTE BOX OF SPEED 1EME OEM PIAGGIO 50 GILERA SMT 2006 >/DERBI SENDA 2006 >/APRILIA RX, SX 2006 >, RS 2006 > 2010, RS4 2011 >, 125 RX, SX 2018 >, RS4 2011 >, TUONO 2017 >-83072R More informationQuantity required : 1 |
All the exploded views of this vehicle
-
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006.PNG)
-
01.05 Carter
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.05.PNG)
-
01.06 Vilebrequin
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.06.PNG)
-
01.07 Groupe cylindre-piston-axe
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.07.PNG)
-
01.10 Ensemble culasse - Soupape
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.10.PNG)
-
01.18 Pompe à huile
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.18.PNG)
-
01.19 Pompe à eau
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.19.PNG)
-
01.20 Démarrage - Démarrage électrique
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.20.PNG)
-
01.21 Volant magnetique
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.21.PNG)
-
01.31 Composants de la boîte de vitesses
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.31.PNG)
-
01.40 Composants de carburateur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.40.PNG)
-
01.42 Silencieux
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.42.PNG)
-
01.45 Filtre à air
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_01.45.PNG)
-
02.01 Châssis/coque
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_02.01.PNG)
-
02.25 Béquille/s
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_02.25.PNG)
-
02.32 Couvertures laterales - Spoiler
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_02.32.PNG)
-
02.33 Logement roue - Garde boue
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_02.33.PNG)
-
02.39 Selle/sieges - Trousse à outils
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_02.39.PNG)
-
02.45 Rétroviseur/s
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_02.45.PNG)
-
02.47 Réservoir carburant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_02.47.PNG)
-
02.52 Réservoir huile
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_02.52.PNG)
-
02.55 Instalation de refoidissement
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_02.55.PNG)
-
03.02 Groupe instruments - Cruscotto
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_03.02.PNG)
-
03.06 Guidon - Maître cylindre
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_03.06.PNG)
-
04.02 Fourche/tube direction - Ensemble butée dir.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_04.02.PNG)
-
04.10 Suspension arrière - Amortisseur/s
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_04.10.PNG)
-
04.11 Roue avant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_04.11.PNG)
-
04.12 Roue arrière
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_04.12.PNG)
-
05.01 Tuyaus du freins - Etriers de frein
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_05.01.PNG)
-
05.03 Transmissions
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_05.03.PNG)
-
05.04 Système de freinage
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_05.04.PNG)
-
06.01 Inverseurs - Commutateurs - Boutons - Interrupteurs
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_06.01.PNG)
-
06.03 Eclairages avant - Clignotants
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_06.03.PNG)
-
06.04 Eclairages arrière - Clignotants
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_06.04.PNG)
-
06.05 Relais - Batterie - Avertisseur sonore
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_06.05.PNG)
-
06.06 Régulateurs de tension - Centrales electroniques - Bobine H.T.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_06.06.PNG)
-
06.08 Faisceau de câbles principal
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_06.08.PNG)
