Vehicle Exploded View - GILERA SMT 50 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

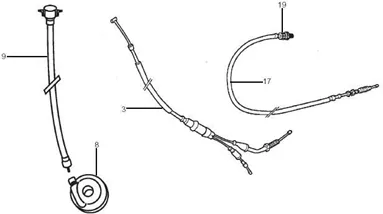

Instalation du freins - transmisisons : 05.03 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/144/SMT_50_2006_05.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/2/9/1/img/70291.jpg)
3 |
CABLE/CONTROL/TRANSMISSION DE THROTTLE OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-2B004384 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/0/7/img/64007.jpg)
8 |
ENTRAINEUR DE INSTRUMENT CLUSTER (D12) OEM PIAGGIO 50 GILERA SMT 2006 > 2010, RCR 1998 > 2005/DERBI SENDA R 2000 > 2010 00G01606051 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/8/4/img/64584.jpg)
9 |
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" 50 GILERA SMT,RCR 2006> -00H01617021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/6/7/img/151767.jpg)
17 |
CABLE/CONTROL/TRANSMISSION CLUTCH OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-2B005231 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/0/2/img/63902.jpg)
19 |
HOLLOW TENSIONER SCREW OF CABLE CLUTCH OEM 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2003 >/APRILIA RX, SX 2006-2013 (M6 L27MM)-00F00920551 More informationQuantity required : 1 |
