Vehicle Exploded View - APRILIA SHIVER 900 E4 ABS NAVI 2019 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

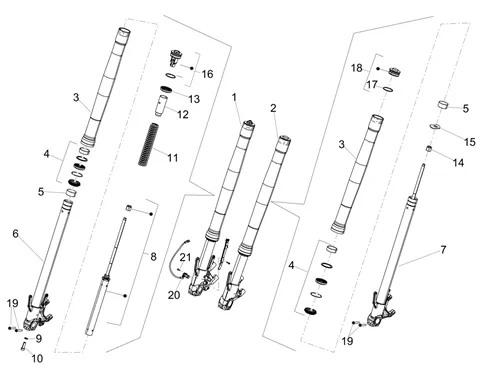

Suspensions : 04.04 FOURCHE AV. KAYABA
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/934/Shiver_900_E4_ABS_NAVI_2019_(EMEA)_04.04.png)
1 |
2B004098-ROD D. More informationQuantity required : 1 |
|||||||||
|
2 |
2B004099-ROD G. More informationQuantity required : 1 |
|||||||||
|
3 |
2B004399-FOURREAU TUBE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/7/9/9/img/145799.jpg)
4 |
SET OF JOINTS SPI FORK OEM PIAGGIO APRILIA 900 SHIVER 2017 >, 660 RS, TUONO 2020 >-2B004402 More informationQuantity required : 2 |
|||||||||
|
5 |
2B004403-BUSH DE COULISSEMENT More informationQuantity required : 2 |
|||||||||
|
6 |
2B004400 - TIGE DROITE CPL. More informationQuantity required : 1 |
|||||||||
|
6 |
2B004417-ROD RIGHT More informationQuantity required : 1 |
|||||||||
|
7 |
2B004401-ROD LEFT CPL. More informationQuantity required : 1 |
|||||||||
|
8 |
2B004405-ELEM. POMPAGE CPL More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/0/2/img/145802.jpg)
9 |
WASHER PLATE DE FORK KAYABA OEM PIAGGIO APRILIA 660 TUONO-2B004406 More informationQuantity required : 1 |
|||||||||
|
10 |
2B004407-SCREW FIX. More informationQuantity required : 1 |
|||||||||
|
11 |
2B004408-SPRING More informationQuantity required : 1 |
|||||||||
|
12 |
2B004409-HOSE PRECHARGE More informationQuantity required : 1 |
|||||||||
|
13 |
2B004422-WASHER More informationQuantity required : 1 |
|||||||||
|
14 |
2B004410-RUBBER MOUNT More informationQuantity required : 1 |
|||||||||
|
15 |
2B004411-NUT More informationQuantity required : 1 |
|||||||||
|
16 |
2B004412-CAP D. More informationQuantity required : 1 |
|||||||||
|
17 |
2B009631 O-RING More informationQuantity required : 1 |
|||||||||
|
17 |
2B009631 O-RING More informationQuantity required : 1 |
|||||||||
|
18 |
2B004413-CAP G. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/6/img/50976.jpg)
19 |
SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-AP8152283 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
20 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
|||||||||
|
20 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
21 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 1 |
|||||||||
