Vehicle Exploded View - APRILIA SHIVER 900 E4 ABS NAVI 2019 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

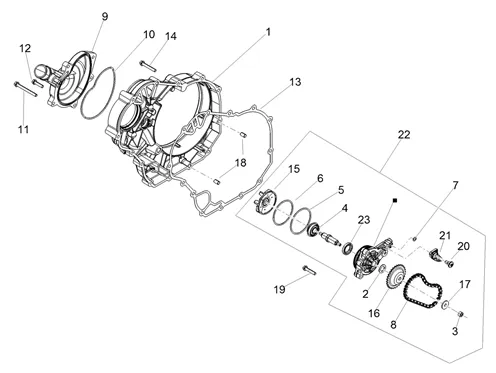

Moteur : 03.21 POMPE À EAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/934/Shiver_900_E4_ABS_NAVI_2019_(EMEA)_03.21.png)
1 |
1A0084975-COVER CASING More informationQuantity required : 1 |
||||||
|
2 |
878734-WASHER More informationQuantity required : 1 |
||||||
|
3 |
876529-NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/7/6/img/68876.jpg)
4 |
GASKET WATER PUMP OEM PIAGGIO 125-250-300-400-500 MP3, 125-250 X7, X8, X-EVO, BEVERLY, X10/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX-82991R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/4/9/6/img/41496.jpg)
5 |
878115-BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/4/6/1/img/41461.jpg)
6 |
876538-BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/2/9/img/111629.jpg)
7 |
O-RING BOX OF SPEED OU WATER PUMP OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV-4/PIAGGIO THREE-WHEELER APE-224035 More informationQuantity required : 1 |
||||||
|
8 |
846624-CHA? NE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/3/7/img/146137.jpg)
9 |
COVER PUMP WATER OEM APRILIA 900 DORSODURO, SHIVER 2017 >-1A0084955 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/9/7/2/img/61972.jpg)
10 |
GASKET BODY PUMP WATER OEM PIAGGIO CAPOONORD, DORSODURO, SHIVER MOTO-GUZZI-B013527 More informationQuantity required : 1 |
||||||
|
11 |
877850-SCREW FLANGE More informationQuantity required : 2 |
||||||
|
12 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-874549 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/4/7/5/img/41475.jpg)
13 |
GASKET OF CASING WATER PUMP OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1200 CAPONORD, DORSODURO-877069 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/3/img/72703.jpg)
14 |
SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-B016210 More informationQuantity required : 11 |
||||||
|
15 |
880646-WHEEL PUMP WATER More informationQuantity required : 1 |
||||||
|
16 |
875814-COURONNE PUMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/2/img/69132.jpg)
17 |
WASHER CRANTEE (6. 1X14X2. 1) OEM PIAGGIO COMMON A LA RANGE-834951 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
18 |
PION DE CENTRAGE (7, 5X12) OEM PIAGGIO COMMON A LA RANGE-277916 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
19 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792 More informationQuantity required : 3 |
||||||
|
20 |
1A003153-SCREW More informationQuantity required : 1 |
||||||
|
21 |
880798-PATIN More informationQuantity required : 1 |
||||||
|
22 |
B0142585-BRACKET * More informationQuantity required : 1 |
||||||
|
23 |
B016998-BUSH D'ETANCHEITE More informationQuantity required : 1 |
