Vehicle Exploded View - APRILIA SHIVER 750 E3 ABS-NOABS 2014-2016 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

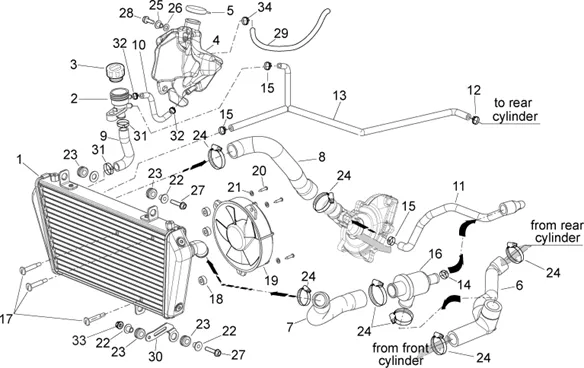

Chassis : 28.23 INSTALLATION REFROIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/862/Shiver_750_E3_ABS-NOABS_2014-2016_(APAC_EMEA)_28.23.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/0/6/img/42706.jpg)
1 |
RADIATOR MOTO OEM PIAGGIO APRILIA 750 DORSODURO 2008 >, 900 DORSODURO 2017 >, 750 SHIVER 2007 >, 900 SHIVER 2017 >-897162 More informationQuantity required : 1 |
||||||
2 |
AP8144644-BOCCHETTONE CARICO ACQUA More informationQuantity required : 1 |
||||||
|
3 |
AP8102615-CAP * More informationQuantity required : 1 |
||||||
|
4 |
851597 - VASE EXPANSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/7/5/5/img/203755.JPG)
5 |
CAP DU VASE EXPANSION OEM APRILIA MOTO-2B010567 More informationQuantity required : 1 |
||||||
|
5 |
CAP DU VASE EXPANSION OEM APRILIA MOTO-2B010567 More informationQuantity required : 1 |
||||||
|
6 |
851683-HOSE * More informationQuantity required : 1 |
||||||
|
7 |
851598-HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/5/3/img/39153.jpg)
8 |
RADIATOR COOLANT HOSE - UPPER "PIAGGIO GENUINE PART" APRILIA 750 SHIVER -851600- More informationQuantity required : 1 |
||||||
|
9 |
851599-HOSE More informationQuantity required : 1 |
||||||
|
10 |
851601-HOSE More informationQuantity required : 1 |
||||||
|
11 |
851602-HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/7/img/71397.jpg)
12 |
CLAMP CLIC VERT (6. 6X11X1) OEM PIAGGIO COMMON A LA RANGE-AP8120446 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/8/5/4/img/40854.jpg)
13 |
HOSE DE PURGE OEM APRILIA 750 SHIVER, DORSODURO-860328 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/2/img/71152.jpg)
14 |
CLAMP 16-24X8 OEM PIAGGIO COMMON A LA RANGE-AP8101573 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/1/img/71171.jpg)
15 |
AP8102239-CLAMP CLIC More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/9/img/69109.jpg)
16 |
THERMOSTAT/CALORSTAT OEM PIAGGIO 750-1200 DORSODURO 2010 >, 750 SHIVER 2007 >, 900 SHIVER 2017 >, 1200 CAPONORD 2014 >, 850 SRV 2012 >/GILERA 800 GP 2007 >-834232 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/6/6/img/71466.jpg)
17 |
ROD OEM PIAGGIO COMMON A LA RANGE-AP8121464 More informationQuantity required : 3 |
||||||
|
18 |
AP8161083-SPACER More informationQuantity required : 3 |
||||||
|
19 |
VENTILATEUR DE COOLING OEM APRILIA 750-900 DORSODURO, SHIVER-AP81249305 More informationQuantity required : 1 |
||||||
|
20 |
AP8150120-SCREW More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/5/img/71805.jpg)
21 |
WASHER PLATE (5. 3X10X1) OEM PIAGGIO COMMON A LA RANGE-AP8150012 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
22 |
BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
23 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/3/img/72883.jpg)
24 |
CLAMP HOSE COOLING OEM PIAGGIO COMMON A LA RANGE-CM001924 More informationQuantity required : 3 |
||||||
|
25 |
AP8221145-" BUSH EN " " T " " * " More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/6/5/img/56865.jpg)
26 |
WASHER RUBBER (10. 5X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8220366 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
27 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
28 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
29 |
HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544 More informationQuantity required : 1 |
||||||
|
30 |
853458-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/0/0/img/71200.jpg)
31 |
CLAMP CLIC (20X8) OEM PIAGGIO COMMON A LA RANGE-AP8102786 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/9/img/71169.jpg)
32 |
COLIIER HOSE (D15) OEM PIAGGIO COMMON A LA RANGE-AP8102159 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
33 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/2/img/71182.jpg)
34 |
CLAMP SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-AP8102520 More informationQuantity required : 1 |
