Vehicle Exploded View - APRILIA SHIVER 750 E3 ABS-NOABS 2014-2016 (APAC EMEA) APRILIA

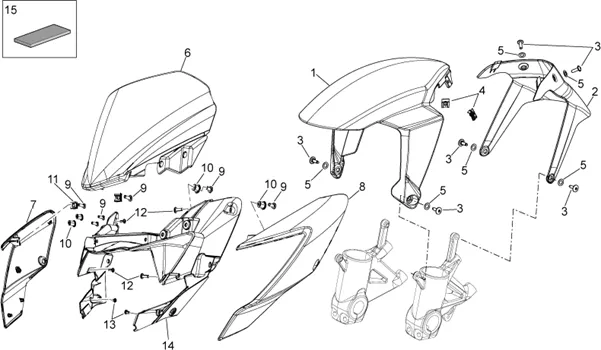

Chassis : 28.11 CARROSSERIE AV. - GARDE-BOUE AV
Carrosserie av. - Garde-boue AV
Search
FRONT MUDGUARD - "PIAGGIO GENUINE PART" APRILIA 750 SHIVER BLACK -86054000XN5-

1
P2R reference P2R reference 40966
Maker reference Maker reference 86054000XN5

FRONT MUDGUARD - "PIAGGIO GENUINE PART" APRILIA 750 SHIVER BLACK -86054000XN5

More information

Quantity required : 1

86054000000XRC - GARDE-BOUE AVANT PEINT ROUGE

1
P2R reference P2R reference 40958
Maker reference Maker reference 86054000000XRC

86054000000XRC-GUARD-MUD FRONT PEINT RED *

More information

Quantity required : 1

85166600XN3 - GARDE-B AV.NOIR

2
P2R reference P2R reference 39212
Maker reference Maker reference 85166600XN3

85166600XN3-GUARD-B AV. BLACK

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339

3
P2R reference P2R reference 71973
Maker reference Maker reference AP8152339

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339

More information

Quantity required : 6

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

4
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 2

WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376

5
P2R reference P2R reference 71870
Maker reference Maker reference AP8150376

WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376

More information

Quantity required : 6

895992 - COUPOLE

6
P2R reference P2R reference 42395
Maker reference Maker reference 895992

895992-COUPOLE *

More information

Quantity required : 1

89599300XN5 - AILE D

7
P2R reference P2R reference 42398
Maker reference Maker reference 89599300XN5

89599300XN5 - AILE D

More information

Quantity required : 1

89599400XN5 - AILE G

8
P2R reference P2R reference 42402
Maker reference Maker reference 89599400XN5

89599400XN5 - AILE G

More information

Quantity required : 1

AP8150359 - VIS

9
P2R reference P2R reference 50865
Maker reference Maker reference AP8150359

AP8150359-SCREW

More information

Quantity required : 6

RUBBER WITH INSERT (M4) OEM PIAGGIO COMMON A LA RANGE-AP8144564

10
P2R reference P2R reference 71770
Maker reference Maker reference AP8144564

RUBBER WITH INSERT (M4) OEM PIAGGIO COMMON A LA RANGE-AP8144564

More information

Quantity required : 4

NUT SHEET METAL (M4) OEM PIAGGIO COMMON A LA RANGE-AP8102381

11
P2R reference P2R reference 71177
Maker reference Maker reference AP8102381

NUT SHEET METAL (M4) OEM PIAGGIO COMMON A LA RANGE-AP8102381

More information

Quantity required : 2

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

12
P2R reference P2R reference 71876
Maker reference Maker reference AP8150413

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

More information

Quantity required : 4

SCREW CRUCIFORME (3. 9X7. 5) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150420

13
P2R reference P2R reference 71878
Maker reference Maker reference AP8150420

SCREW CRUCIFORME (3. 9X7. 5) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150420

More information

Quantity required : 2

895995 - PLANCHE

14
P2R reference P2R reference 42404
Maker reference Maker reference 895995

895995 - PLANCHE

More information

Quantity required : 1

AP8117033-ADHESIVE SPONGE

15
P2R reference P2R reference 46214
Maker reference Maker reference AP8117033

AP8117033-ADHESIVE SPONGE

More information

Quantity required : 3
