Vehicle Exploded View - DERBI SENDA SM 50 SENDA X-Treme 50 SM Low Seat E4 2019 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

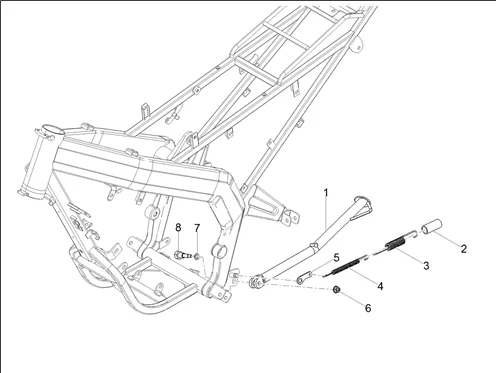

Chassis : 01.03 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1057/SENDA_X-Treme_50_SM_Low_Seat_E4_2019_(EMEA)_01.03.png)
1 |
2B006037000XNL-STAND More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/5/img/71185.jpg)
2 |
PROTECTOR SPRING DE SIDE STAND OEM PIAGGIO COMMON A LA RANGE-AP8102524 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/2/0/img/70320.jpg)
3 |
SPRING OF RETURN STAND OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI SENDA 2010 >/APRILIA 50 SX, RX 2006 >-867291 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/1/9/img/70319.jpg)
4 |
SPRING DE RETOUR INNER STAND OEM PIAGGIO GILERA 50 SMT, RCR/DERBI SENDA 2010 </APRILIA 50 RS, SX, RX 2011 >-867290 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/0/img/64310.jpg)
5 |
PLATE/BRACKET SPRING DE STAND OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 RS, RX, SX 2006 >-00H00800422 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
6 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
7 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/6/img/64316.jpg)
8 |
SCREW MOUNTING STAND OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2010 >/APRILIA SX, RX 2006 >-00H00805072 More informationQuantity required : 1 |
