Vehicle Exploded View - DERBI SENDA SM 50 SENDA X-Treme 50 SM Low Seat E4 2019 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

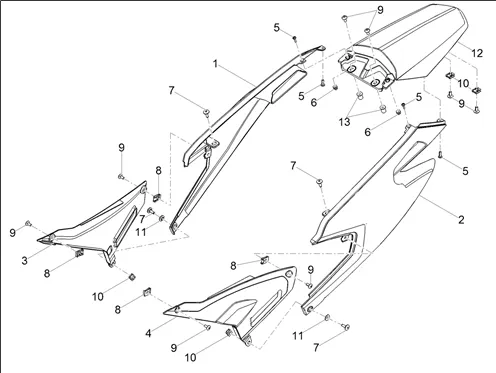

Carrosserie : 02.14 CARROSSERIE POSTERIEURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1057/SENDA_X-Treme_50_SM_Low_Seat_E4_2019_(EMEA)_02.14.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/9/3/img/151693.jpg)
1 |
BODY PANEL/SIDE PANEL REAR RIGHT OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT, RCR 2018 >/APRILIA 50 SX, RX 2018 > BLANCHE-2B004329000W0B More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/3/4/7/img/157347.jpg)
1 |
BODY PANEL/SIDE PANEL REAR RIGHT OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT, RCR 2018 >/APRILIA 50 SX, RX 2018 > BLACK-2B004329000W0N More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/9/4/img/151694.jpg)
2 |
BODY PANEL/SIDE PANEL REAR LEFT OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT, RCR 2018 >/APRILIA 50 SX, RX 2018 > BLANCHE-2B004330000W0B More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/3/4/8/img/157348.jpg)
2 |
BODY PANEL/SIDE PANEL REAR LEFT OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT, RCR 2018 >/APRILIA 50 SX, RX 2018 > BLACK-2B004330000W0N More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/9/5/img/151695.jpg)
3 |
COVER LATERAL RIGHT OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT, RCR 2018 >-2B004327 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/9/6/img/151696.jpg)
4 |
COVER LATERAL LEFT OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT, RCR 2018 >-2B004328 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
5 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/1/img/71191.jpg)
6 |
RIVET EN PLASTIQUE CARROSSERIE OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8102671 More informationQuantity required : 2 |
|||||||||
7 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
7 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
8 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/7/img/70837.jpg)
9 |
SCREW BTR (5X12) DE FAIRING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI V7-V9-896174 More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
10 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
11 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/0/9/9/8/img/150998.jpg)
12 |
REAR MUDGUARD OEM PIAGGIO GILERA 50 SMT, RCR 2018 >/DERBI 50 SENDA 2018 >/APRILIA 50 SX, RX 2018 > WHITE-2B004331000W0B More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/3/4/9/img/157349.jpg)
12 |
REAR MUDGUARD OEM PIAGGIO GILERA 50 SMT, RCR 2018 >/DERBI 50 SENDA 2018 >/APRILIA 50 SX, RX 2018 > BLACK-2B004331000W0N More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
13 |
NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531 More informationQuantity required : 2 |
|||||||||
