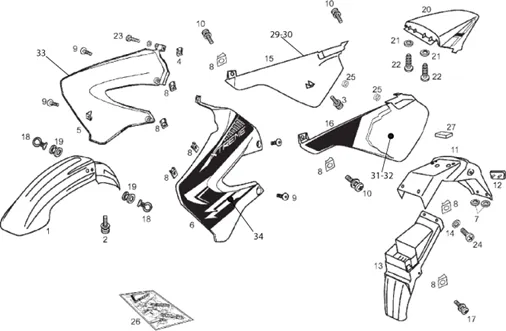

Vehicle Exploded View - DERBI SENDA SM 50 Senda SM X-Trem 50 2T E2 2010

	P2R reference	188672
	Maker reference	00H007170255

00H007170255 - R-GUARDB.DLNT.ROJ.FLU.SM X-TREM 06

	P2R reference	188673
	Maker reference	86467500WY35

86467500WY35 - GARDE-BOUE AV

	P2R reference	65008
	Maker reference	00H05900021

SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021

	P2R reference	65008
	Maker reference	00H05900021

SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	188675
	Maker reference	86572301WN05

86572301WN05 - COUVERCLE AVANT D.

	P2R reference	188674
	Maker reference	86572300WN05

86572300WN05 - COUVERCLE AVANT D.

	P2R reference	188676
	Maker reference	86355500WN05

86355500WN05-R-TAPA DLNT. IZ. NGR. OMB. X-TREM 07

	P2R reference	188677
	Maker reference	86572401WN05

86572401WN05 - COUVERCLE AVANT G.

	P2R reference	69844
	Maker reference	861239

WASHER DE HEAD OF FORK D5 INOX OEM PIAGGIO 50 APRILIARS 2006 > 2010/DERBI 50 SENDA 2000 >/GILERA SMT, RCR 2006 >-861239

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63992
	Maker reference	00G01503701

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701

	P2R reference	63923
	Maker reference	00F05900041

SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041

	P2R reference	64299
	Maker reference	00H00712341

MUD FLAP/DOOR PLATE OEM DERBI 50 SENDA 2000 < 2010/GILERA 50 SMT, RCR 2006 > 2010-00H00712341

	P2R reference	64118
	Maker reference	00G04400752

REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2009 -00G04400752

	P2R reference	64293
	Maker reference	00H00705121

REAR MUDGUARD INNER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00705121

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	187510
	Maker reference	00H00505074

00H00505074-TAPA LAT. DR. SENDA SM NEGRA

	P2R reference	188678
	Maker reference	86572101WN05

86572101WN05 - COUVERCLE ARRIERE D.

	P2R reference	188679
	Maker reference	86572200WN05

86572200WN05 - COUVERCLE ARRIERE G.

	P2R reference	188680
	Maker reference	86572201WN05

86572201WN05 - COUVERCLE ARRIERE G.

	P2R reference	65008
	Maker reference	00H05900021

SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021

	P2R reference	64668
	Maker reference	00H02201591

GUIDE CABLE DE FLEXIBLE OF BRAKE FRONT OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2010/APRILIA 50-125 SX, RX-00H02201591

	P2R reference	63881
	Maker reference	00D01500021

RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021

	P2R reference	188681
	Maker reference	00H006181665

00H006181665-DOSSERET SEAT

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	63681
	Maker reference	000110514015

SCREW AUTOTARAUDEUSE (5X14) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-00011051401

	P2R reference	63703
	Maker reference	000121520005

SCREW CRUCIFORME (5X80) OEM PIAGIO COMMON A LA RANGE-00012152000

	P2R reference	63696
	Maker reference	000120612005

SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-00012061200

	P2R reference	188284
	Maker reference	00H00501761

00H00501761-RUBBER MOUNT

	P2R reference	188682
	Maker reference	86682800WN0

86682800WN0 - DECALCO SERIE

	P2R reference	188683
	Maker reference	86682801WN0

STICKER/STICKER/KIT DECORS OEM DERBI 50 SENDA R, SM X-TREME 2010-86682801WN0

	P2R reference	188419
	Maker reference	00H05900621

00H05900621 - ESPUMA ADHESIVA DE 5MMX360MM

	P2R reference	188684
	Maker reference	8657320001

8657320001-DECAL

	P2R reference	188685
	Maker reference	8657320003

8657320003 - DECALCO

	P2R reference	188686
	Maker reference	8635690001

8635690001-PLATE

	P2R reference	188687
	Maker reference	8657330001

8657330001-DECAL

	P2R reference	188688
	Maker reference	8657330003

8657330003 - DECALCO

	P2R reference	188689
	Maker reference	8635700001

8635700001-PLATE

	P2R reference	188690
	Maker reference	8657290001

8657290001-DECAL

	P2R reference	188691
	Maker reference	8657290003

8657290003 - DECALCO

	P2R reference	188692
	Maker reference	8657300001

8657300001-DECAL

	P2R reference	188693
	Maker reference	8657300003

8657300003 - DECALCO
