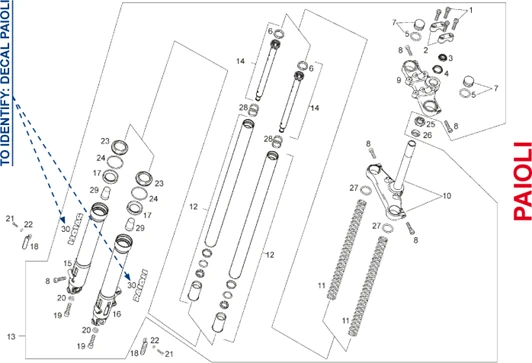

Vehicle Exploded View - DERBI SENDA SM 50 Senda SM X-Trem 50 2T E2 2010

	P2R reference	69999
	Maker reference	863143

863143-BOLT HEAD HEX. M8X40

	P2R reference	70000
	Maker reference	863144

863144-SPACER

	P2R reference	70001
	Maker reference	863145

863145-POUSSIERE

	P2R reference	64190
	Maker reference	00H00204601

NUT - FOR UPPER FORK PLATE FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H00204601

	P2R reference	70002
	Maker reference	863146

863146-GASKET OF JAUGE

	P2R reference	70003
	Maker reference	863147

863147-GASKET OF JAUGE

	P2R reference	70004
	Maker reference	863148

863148-CAP

	P2R reference	70005
	Maker reference	863149

863149-SCREW T. CREUSE M8X35

	P2R reference	70006
	Maker reference	863150

863150-CALIPER FIX. HANDLEBAR

	P2R reference	70007
	Maker reference	863151

PLATINE INFERIEURE DE FORK OEM PIAGGIO GILERA 50 SMT, RCR 2006 >-863151

	P2R reference	70020
	Maker reference	863165

863165-FORK SPRING

	P2R reference	188403
	Maker reference	863153

863153 - BARRE DE FOURCHE

	P2R reference	188404
	Maker reference	861002

861002 - FOURCHE DIRITICE

	P2R reference	70021
	Maker reference	863166

863166-TUBE HYDRAULIQUE

	P2R reference	70010
	Maker reference	863155

863155-CAP RIGHT

	P2R reference	70022
	Maker reference	863167

863167-CAP LEFT

	P2R reference	70012
	Maker reference	863157

FORK OIL SEAL GASKET- (37X8X10.5) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -863157

	P2R reference	64616
	Maker reference	00H01802081

CATADIOPTRE DE FORK OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2003 > 2017/APRILIA SX, RX 2006 > 2017-00H01802081

	P2R reference	70013
	Maker reference	863158

863158-SCREW TARAUD

	P2R reference	70014
	Maker reference	863159

863159 - RONDELLE

	P2R reference	63664
	Maker reference	000080615005

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00008061500

	P2R reference	63726
	Maker reference	000311060005

WASHER PLATE (6X12X1. 7) OEM PIAGGIO COMMON A LA RANGE-00031106000

	P2R reference	70015
	Maker reference	863160

PROTECTOR POUSSIERE DE FORK (D37) OEM PIAGGIO GILERA 50 SMT, RCR 2006/DERBI 50 SENDA 2006 > 2010-863160

	P2R reference	70016
	Maker reference	863161

863161-GASKET OF JAUGE

	P2R reference	63924
	Maker reference	00G00200112

NUT UPPER DE FORK OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00G00200112

	P2R reference	63868
	Maker reference	00D00200761

COVER POUSSIERE COLONNE STEERING OEM DERBI 50 SENDA 2010 > 2017/GILERA 50RCR, SMT 2006 > 2017-00D00200761

	P2R reference	70017
	Maker reference	863162

863162 - RONDELLE

	P2R reference	70018
	Maker reference	863163

863163 - RESSORT DE FOURCHE

	P2R reference	70019
	Maker reference	863164

863164-SPACER

	P2R reference	188405
	Maker reference	00H02000051

00H02000051 - ADHESIF
