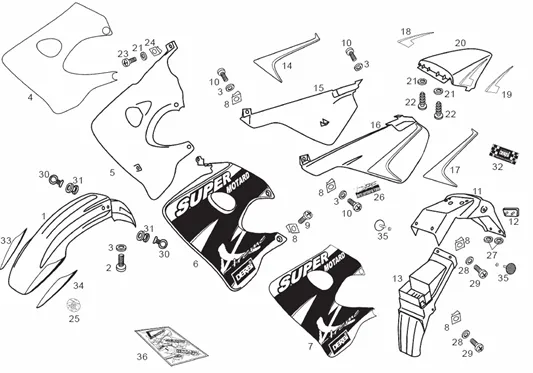

Tables : 5 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_5.png)
1 |
00H00708431 - GARDE-BOUE AVANT RGE More informationQuantity required : 1 |
||||||
|
1 |
00H00708432 - GARDE-BOUE AVANT RGE More informationQuantity required : 1 |
||||||
|
1 |
00H00708433 - GARDE-BOUE AVANT RGE More informationQuantity required : 1 |
||||||
|
1 |
00H00713023 - GARDE-BOUE AVANT More informationQuantity required : 1 |
||||||
|
1 |
00H00708435 - GARDE-BOUE AVANT RGE More informationQuantity required : 1 |
||||||
|
1 |
00H00708436 - GARDE-BOUE AVANT RGE More informationQuantity required : 1 |
||||||
|
1 |
00H00708437C - GARDE-BOUE AVANT RGE More informationQuantity required : 1 |
||||||
|
1 |
00H00713023 - GARDE-BOUE AVANT More informationQuantity required : 1 |
||||||
|
2 |
00012162000-BOLT HEAD HEX. 5M80X15 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
3 |
WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171 More informationQuantity required : 1 |
||||||
|
4 |
00H04918561 - ADHESIF More informationQuantity required : 1 |
||||||
|
4 |
00H04918562 - ADHESIF More informationQuantity required : 1 |
||||||
|
4 |
00H04918563 - ADHESIF More informationQuantity required : 1 |
||||||
|
4 |
00H04918564 - ADHESIF More informationQuantity required : 1 |
||||||
|
4 |
00H04918565 - ADHESIF More informationQuantity required : 1 |
||||||
|
5 |
00H04427801 - OUIE MOTEUR D. More informationQuantity required : 1 |
||||||
|
5 |
00H04427802 - OUIE MOTEUR D. More informationQuantity required : 1 |
||||||
|
5 |
00H04427803 - OUIE MOTEUR D. More informationQuantity required : 1 |
||||||
|
5 |
00H04427804 - OUIE MOTEUR D. More informationQuantity required : 1 |
||||||
|
5 |
00H04427805 - OUIE MOTEUR D. More informationQuantity required : 1 |
||||||
|
5 |
00H04427806 - OUIE MOTEUR D. More informationQuantity required : 1 |
||||||
|
5 |
00H04427807 - OUIE MOTEUR D. More informationQuantity required : 1 |
||||||
|
5 |
00H04427808C5 - OUIE MOTEUR D. More informationQuantity required : 1 |
||||||
|
6 |
00H04427831 - OUIE MOTEUR G. More informationQuantity required : 1 |
||||||
|
6 |
00H04427832 - OUIE MOTEUR G. More informationQuantity required : 1 |
||||||
|
6 |
00H04427833 - OUIE MOTEUR G. More informationQuantity required : 1 |
||||||
|
6 |
00H04427834 - OUIE MOTEUR G. More informationQuantity required : 1 |
||||||
|
6 |
00H04427835 - OUIE MOTEUR G. More informationQuantity required : 1 |
||||||
|
6 |
00H04427836 - OUIE MOTEUR G. More informationQuantity required : 1 |
||||||
|
6 |
00H04427837 - OUIE MOTEUR G. More informationQuantity required : 1 |
||||||
|
6 |
00H04427838 - OUIE MOTEUR G. More informationQuantity required : 1 |
||||||
|
7 |
00H04918571 - ADHESIF More informationQuantity required : 1 |
||||||
|
7 |
00H04918572 - ADHESIF More informationQuantity required : 1 |
||||||
|
7 |
00H04918573 - ADHESIF More informationQuantity required : 1 |
||||||
|
7 |
00H04918574 - ADHESIF More informationQuantity required : 1 |
||||||
|
7 |
00H04918575 - ADHESIF More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/9/2/img/63992.jpg)
9 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/4/img/63704.jpg)
10 |
SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/9/9/img/64299.jpg)
11 |
MUD FLAP/DOOR PLATE OEM DERBI 50 SENDA 2000 < 2010/GILERA 50 SMT, RCR 2006 > 2010-00H00712341 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/8/img/64118.jpg)
12 |
REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2009 -00G04400752 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/9/3/img/64293.jpg)
13 |
REAR MUDGUARD INNER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00705121 More informationQuantity required : 1 |
||||||
|
14 |
00H00515651 - DECAL FLANC D. More informationQuantity required : 1 |
||||||
|
14 |
00H00515652 - DECAL FLANC D. More informationQuantity required : 1 |
||||||
|
14 |
00H00515654 - DECAL FLANC D. More informationQuantity required : 1 |
||||||
|
14 |
00H00515655 - DECAL FLANC D. More informationQuantity required : 1 |
||||||
|
14 |
00H00515656 - DECAL FLANC D. More informationQuantity required : 1 |
||||||
|
15 |
00H00541691 - PLAQUE LATERAL DROITE AVEC More informationQuantity required : 1 |
||||||
|
15 |
00H00541692 - PLAQUE LATERAL DROITE AVEC More informationQuantity required : 1 |
||||||
|
15 |
00H00541694 - PLAQUE LATERAL DROITE AVEC More informationQuantity required : 1 |
||||||
|
15 |
00H00541695C - PLAQUE LATERAL DROITE AVEC More informationQuantity required : 1 |
||||||
|
15 |
00H00541696 - PLAQUE LATERAL DROITE AVEC More informationQuantity required : 1 |
||||||
|
15 |
00H00541698C5 - PLAQUE LATERAL DROITE AVEC More informationQuantity required : 1 |
||||||
|
15 |
00H00541699 - PLAQUE LATERAL DROITE AVEC More informationQuantity required : 1 |
||||||
|
15 |
00H00549691C5 - PLAQUE LATERAL DROITE AVEC More informationQuantity required : 1 |
||||||
|
16 |
00H00541701 - FLANC LAT.G.AVEC DECAL More informationQuantity required : 1 |
||||||
|
16 |
00H00541702 - FLANC LAT.G.AVEC DECAL More informationQuantity required : 1 |
||||||
|
16 |
00H00541704 - FLANC LAT.G.AVEC DECAL More informationQuantity required : 1 |
||||||
|
16 |
00H00541705C5 - FLANC LAT.G.AVEC DECAL More informationQuantity required : 1 |
||||||
|
16 |
00H00541706C5 - FLANC LAT.G.AVEC DECAL More informationQuantity required : 1 |
||||||
|
16 |
00H00541708C5 - FLANC LAT.G.AVEC DECAL More informationQuantity required : 1 |
||||||
|
16 |
00H00541709 - FLANC LAT.G.AVEC DECAL More informationQuantity required : 1 |
||||||
|
16 |
00H00549701 - FLANC LAT.G.AVEC DECAL More informationQuantity required : 1 |
||||||
|
17 |
00H00516641 - DECAL LAT. More informationQuantity required : 1 |
||||||
|
17 |
00H00516642 - DECAL LAT. More informationQuantity required : 1 |
||||||
|
17 |
00H00516644 - DECAL LAT. More informationQuantity required : 1 |
||||||
|
17 |
00H00516645 - DECAL LAT. More informationQuantity required : 1 |
||||||
|
17 |
00H00516646 - DECAL LAT. More informationQuantity required : 1 |
||||||
|
18 |
00H00618601 - ADHESIF More informationQuantity required : 1 |
||||||
|
18 |
00H00618602 - ADHESIF More informationQuantity required : 1 |
||||||
|
18 |
00H00618604 - ADHESIF More informationQuantity required : 1 |
||||||
|
18 |
00H00618605 - ADHESIF More informationQuantity required : 1 |
||||||
|
18 |
00H00618606 - ADHESIF More informationQuantity required : 1 |
||||||
|
19 |
00H00618482 - ADHESIF More informationQuantity required : 1 |
||||||
|
19 |
00H00618484 - ADHESIF More informationQuantity required : 1 |
||||||
|
19 |
00H00618485 - ADHESIF More informationQuantity required : 1 |
||||||
|
19 |
00H00618486 - ADHESIF More informationQuantity required : 1 |
||||||
|
19 |
00H00618481 - ADHESIF More informationQuantity required : 1 |
||||||
|
20 |
00H04912091 - DOSSERET SELLE More informationQuantity required : 1 |
||||||
|
20 |
00H04912092 - DOSSERET SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/8/5/img/64285.jpg)
20 |
REAR MUDGUARD OEM PIAGGIO GILERA 50 SMT, RCR 2006 > 2010 BLACK-00H00608164 More informationQuantity required : 1 |
||||||
|
20 |
00H04912095C5 - DOSSERET SELLE More informationQuantity required : 1 |
||||||
|
20 |
00H04912096C5 - DOSSERET SELLE More informationQuantity required : 1 |
||||||
|
20 |
00H04912098C5 - DOSSERET SELLE More informationQuantity required : 1 |
||||||
|
20 |
00H00608163 - COLIN AZUL SENDA SIN CALCAS More informationQuantity required : 1 |
||||||
|
20 |
00H04922091C - DOSSERET SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
21 |
WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/2/img/63682.jpg)
22 |
00011051601 - VIS TARAUD 5,1X16 NOIR CL89H More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/3/img/63703.jpg)
23 |
SCREW CRUCIFORME (5X80) OEM PIAGIO COMMON A LA RANGE-00012152000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
24 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 1 |
||||||
|
25 |
00G04600371 - ADHESIF EU APPROVAL More informationQuantity required : 1 |
||||||
|
26 |
00H02200021 - ADHESIF More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/4/4/img/69844.jpg)
27 |
WASHER DE HEAD OF FORK D5 INOX OEM PIAGGIO 50 APRILIARS 2006 > 2010/DERBI 50 SENDA 2000 >/GILERA SMT, RCR 2006 >-861239 More informationQuantity required : 1 |
||||||
|
28 |
BOULON S03105900 |
||||||
|
29 |
SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/6/8/img/64668.jpg)
30 |
GUIDE CABLE DE FLEXIBLE OF BRAKE FRONT OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2010/APRILIA 50-125 SX, RX-00H02201591 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/1/img/63881.jpg)
31 |
RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021 More informationQuantity required : 1 |
||||||
|
32 |
00H04900231 - CALQUE DERBI 8 FOIS More informationQuantity required : 1 |
||||||
|
33 |
00H00709251 - ADHESIF More informationQuantity required : 1 |
||||||
|
33 |
00H00709252 - ADHESIF More informationQuantity required : 1 |
||||||
|
33 |
00H00709253 - ADHESIF More informationQuantity required : 1 |
||||||
|
33 |
00H00709254 - ADHESIF More informationQuantity required : 1 |
||||||
|
33 |
00H00709255 - ADHESIF More informationQuantity required : 1 |
||||||
|
34 |
00H00702261 - ADHESIF More informationQuantity required : 1 |
||||||
|
34 |
00H00702262 - ADHESIF More informationQuantity required : 1 |
||||||
|
34 |
00H00702263 - ADHESIF More informationQuantity required : 1 |
||||||
|
34 |
00H00702264 - ADHESIF More informationQuantity required : 1 |
||||||
|
34 |
00H00702265 - ADHESIF More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/5/img/72325.jpg)
35 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE-AP8224164 More informationQuantity required : 1 |
||||||
|
36 |
00H05144651 - JEU ADHESIF More informationQuantity required : 1 |
||||||
|
36 |
00H05144652 - R-JUEGO CALCAS SM X-T VD F More informationQuantity required : 1 |
||||||
|
36 |
00H05144653 - R-JUEGO CALCAS SM X-T AZ F More informationQuantity required : 1 |
||||||
|
36 |
00H05144654 - R-JUEGO CALCAS SM X-T NG.F More informationQuantity required : 1 |
||||||
|
36 |
00H05144655 - JEU ADHESIF More informationQuantity required : 1 |
All the exploded views of this vehicle
-
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION.png)
-
1 Béquille
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_1.png)
-
10 Frein arriere
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_10.png)
-
11 Instruments
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_11.png)
-
12 Moteur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_12.png)
-
13 Arbre moteur - Cylindre - Piston
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_13.png)
-
14 Embrayage
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_14.png)
-
15 Selecteur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_15.png)
-
16 Mandrin roul. arb.prim.D-sec.G
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_16.png)
-
17 Groupe démarreur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_17.png)
-
18 Carters
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_18.png)
-
19 Carburateur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_19.png)
-
2 Fourche Av.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_2.png)
-
20 Volant magnétique
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_20.png)
-
21 Groupe echappement
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_21.png)
-
22 Pompe huile
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_22.png)
-
23 Installation refroidissement
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_23.png)
-
24 Accessoires
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_24.png)
-
3 Fourche arriere - Amortisseur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_3.png)
-
4 Réservoir
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_4.png)
-
5 Chassis
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_5.png)
-
6 Guidon - Commandes
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_6.png)
-
7 Circuit electrique
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_7.png)
-
8 Roue Av.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_8.png)
-
9 Roue arrière
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1047/SENDA_SM_X-TREM_2002_2_EDICION_9.png)
