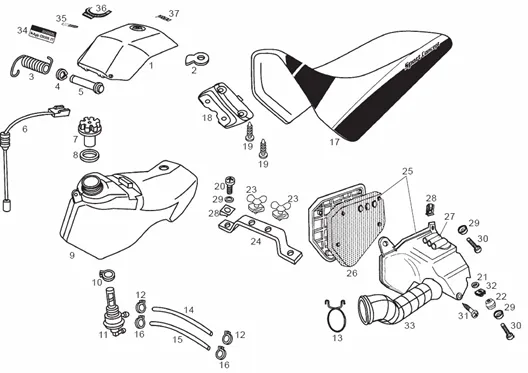

Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM X-TREM 2002 2ª EDICION

	P2R reference	187475
	Maker reference	00H00404681

00H00404681 - COUVERCLE DE RESERVOIR

	P2R reference	187476
	Maker reference	00H00404682

00H00404682 - COUVERCLE DE RESERVOIR

	P2R reference	64250
	Maker reference	00H00404684

COVER DE TANK OEM DERBI 50 SENDA 2000 > 2010/GILERA 50 SMT, RCR 2006 >-00H00404684

	P2R reference	188557
	Maker reference	00H00404686

00H00404686 - COUVERCLE DE RESERVOIR

	P2R reference	188558
	Maker reference	00H00414681C5

00H00414681C5 - COUVERCLE DE RESERVOIR

	P2R reference	64250
	Maker reference	00H00404684

COVER DE TANK OEM DERBI 50 SENDA 2000 > 2010/GILERA 50 SMT, RCR 2006 >-00H00404684

	P2R reference	188559
	Maker reference	00H00414683

00H00414683 - COUVERCLE DE RESERVOIR

	P2R reference	187635
	Maker reference	00H004146845

00H004146845 - COUVERCLE DE RESERVOIR

	P2R reference	64282
	Maker reference	00H00604141

LEVER LATCH HATCH A FUEL OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI 50 SENDA 2000 > 2010/APRILIA 50 SX, RX 2006 > 2017-00H00604141

	P2R reference	65044
	Maker reference	00H063037626

SPRING HATCH DE TANK OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >-00H063037626

	P2R reference	63736
	Maker reference	000470304005

CLIPS SHAFT OF HATCH A FUEL OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX-00047030400

	P2R reference	65043
	Maker reference	00H06303752

SHAFT OF HATCH A FUEL OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR/APRILIA 50 SX, RX-00H06303752

	P2R reference	64890
	Maker reference	00H04302181

FUEL LEVEL SENSOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2010/APRILIA 50 SX, RX 2006>2010 (WIRES COLORS: YELLOW/GREEN+BLUE/WHITE) -00H04302181

	P2R reference	187309
	Maker reference	00F00400131

00F00400131 - ENS.BOUCHON RESERV.ESSENCE V.B

	P2R reference	63897
	Maker reference	00F00400771

WASHER CAP DE TANK OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX-00F00400771

	P2R reference	187479
	Maker reference	00H00405011

00H00405011-FUEL TANK

	P2R reference	63932
	Maker reference	00G00400501

CLAMP ROBINET FUEL OEM DERBI 50 SENDA 2000 >-00G00400501

	P2R reference	63930
	Maker reference	00G00400181

ROBINET FUEL OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >, RS4 2011 >-00G00400181

	P2R reference	63891
	Maker reference	00D03700131

00D03700131 - CRAMPON ELASTIQUE TUBE ESSE

	P2R reference	64080
	Maker reference	00G03204272

CLAMP HOSE DE AIR FILTER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 SX, RX 2006 >-00G03204272

	P2R reference	153426
	Maker reference	00F00403321

00F00403321 - TUBE ESSENCE

	P2R reference	70187
	Maker reference	866497

866497-FILTER

	P2R reference	63918
	Maker reference	00F03710131

CLAMP HOSE D7 OEM PIAGGIO COMMON A LA RANGE-00F03710131

	P2R reference	188560
	Maker reference	00H00618011

00H00618011 - SELLE

	P2R reference	188561
	Maker reference	00H00618012

00H00618012 - SELLE

	P2R reference	188562
	Maker reference	00H00618013

00H00618013 - SELLE

	P2R reference	188563
	Maker reference	00H00618014

00H00618014 - SELLE

	P2R reference	188564
	Maker reference	00H00618015

00H00618015 - SELLE

	P2R reference	64276
	Maker reference	00H00600341

BRACKET DE SEAT OEM PIAGGIO 50 GILERA SMT, RCR 2011 >/DERBI SENDA 2000 >/APRILIA SX, RX 2011 >-00H00600341

	P2R reference	63683
	Maker reference	000110518015

SCREW CRUCIFORME (5. 1X18) TARAUD OEM PIAGGIO COMMON A LA RANGE-00011051801

	P2R reference	63696
	Maker reference	000120612005

SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-00012061200

	P2R reference	63673
	Maker reference	000089150205

RUBBER MOUNT DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 > 2011, SX, RX 2006 >-00008915020

	P2R reference	63883
	Maker reference	00D01500552

WASHER SPECIALE OEM PIAGGIO COMMON A LA RANGE-00D01500552

	P2R reference	187481
	Maker reference	00H06100261

00H06100261 - ENSEMBLE SERRURE

	P2R reference	64249
	Maker reference	00H00404051

BRACKET MOUNTING FUEL TANK OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 SX, RX 2006 >-00H00404051

	P2R reference	187482
	Maker reference	00H01800541

00H01800541 - ENSEMBLE BOITE FILTRE

	P2R reference	157088
	Maker reference	B0432990P

ELEMENT/MOUSSE DE AIR FILTER (PREMIUM) OEM DERBI 50 SENDA 2000 </GILERA 50 SMT 2006 >/APRILIA 50 RX 2006 >, SX 2006 >-B0432990P

	P2R reference	63890
	Maker reference	00D03210491

TUBE ASPIRATION OEM DERBI 50 SENDA 2010 <-00D03210491

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	63704
	Maker reference	000121616005

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

	P2R reference	63751
	Maker reference	000734819645

SCREW PARKER (4, 8X19) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-00073481964

	P2R reference	63882
	Maker reference	00D01500471

SPACER DE GUIDE-FIL OEM PIAGGIO GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX-00D01500471

	P2R reference	64767
	Maker reference	00H03207261

SLEEVE AIR FILTER 50 A BOX OEM PIAGGIO GILERA 50 RCR, SMT 2006 >/APRILIA 50 RX, SX 2006 >-00H03207261

	P2R reference	187483
	Maker reference	00H00401521

00H00401521 - ADHESIF AGIP SPEED

	P2R reference	187485
	Maker reference	00G04401481

00G04401481 - ADHESIF UNLEADED FUEL

	P2R reference	187637
	Maker reference	00H00404471

00H00404471 - ADHESIF CHAMPION FRANCE 2001

	P2R reference	187638
	Maker reference	00F04601121

00F04601121 - ADHESIF DERBI
