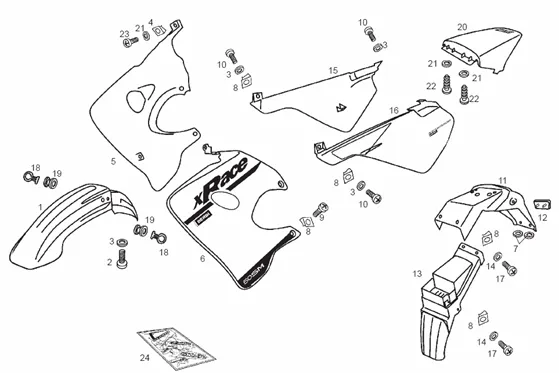

Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM X-RACE 2006 E2 4ed

	P2R reference	64305
	Maker reference	00H00713023

00H00713023 - GARDE-BOUE AVANT

	P2R reference	188513
	Maker reference	00H00713029

00H00713029 - GARDE-BOUE AVANT

	P2R reference	188475
	Maker reference	00H00723020

00H00723020 - GARDE-BOUE AVANT

	P2R reference	188410
	Maker reference	00H00723021

00H00723021 - GARDE-BOUE AV.

	P2R reference	63704
	Maker reference	000121616005

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	188514
	Maker reference	00H04436801

00H04436801 - ENSAMBLE LAT. DR.

	P2R reference	188516
	Maker reference	00H04436803

00H04436803 - ENSAMBLE LAT. DR.

	P2R reference	188476
	Maker reference	00H04436804

00H04436804 - SCTO.TAP DL.DR.ROJO SM X-RACE

	P2R reference	188477
	Maker reference	00H04436805

00H04436805 - SCTO.TAPA DL.DR.AZL.SM X-RACE

	P2R reference	188551
	Maker reference	00H04436806

00H04436806 - SCTO.TAP.DL.DR.NG-BL.SM X-RACE

	P2R reference	188517
	Maker reference	00H04436881

00H04436881 - ENSAMBLE LAT. GA.

	P2R reference	188519
	Maker reference	00H04436883

00H04436883 - ENSAMBLE LAT. GA.

	P2R reference	188478
	Maker reference	00H04436884

00H04436884 - SCTO.TAP DL.IZ.ROJO SM X-RACE

	P2R reference	188479
	Maker reference	00H04436885

00H04436885 - SCTO.TAPA DL.IZ.AZL.SM X-RACE

	P2R reference	188552
	Maker reference	00H04436886

00H04436886 - SCTO.TAP.DL.IZ.NG-BL.SM X-RACE

	P2R reference	69844
	Maker reference	861239

WASHER DE HEAD OF FORK D5 INOX OEM PIAGGIO 50 APRILIARS 2006 > 2010/DERBI 50 SENDA 2000 >/GILERA SMT, RCR 2006 >-861239

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63992
	Maker reference	00G01503701

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701

	P2R reference	63704
	Maker reference	000121616005

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

	P2R reference	64299
	Maker reference	00H00712341

MUD FLAP/DOOR PLATE OEM DERBI 50 SENDA 2000 < 2010/GILERA 50 SMT, RCR 2006 > 2010-00H00712341

	P2R reference	64118
	Maker reference	00G04400752

REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2009 -00G04400752

	P2R reference	64293
	Maker reference	00H00705121

REAR MUDGUARD INNER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00705121

	P2R reference
	Maker reference	031059

BOULON S03105900

	P2R reference	188520
	Maker reference	00H00556691

00H00556691 - PLAQUE LATERAL DROITE

	P2R reference	188522
	Maker reference	00H00556695

00H00556695 - PLAQUE LATERAL DROITE

	P2R reference	188480
	Maker reference	00H00556697

00H00556697 - SCTO.TAP LT.DR.SM X-RACE ROJA

	P2R reference	188481
	Maker reference	00H00556698

00H00556698 - SCTO.TAPA LT.DR.BLNC.SM X-RACE

	P2R reference	188523
	Maker reference	00H00556701

00H00556701 - PLAQUE LATERAL GAUCHE

	P2R reference	188525
	Maker reference	00H00556705

00H00556705 - PLAQUE LATERAL GAUCHE

	P2R reference	188482
	Maker reference	00H00556707

00H00556707 - SCTO.TAP.LT.IZ.SM X-RACE ROJA

	P2R reference	188483
	Maker reference	00H00556708

00H00556708 - SCTO.TAPA LT.IZ.BLNC.SM X-RACE

	P2R reference	63704
	Maker reference	000121616005

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

	P2R reference	64668
	Maker reference	00H02201591

GUIDE CABLE DE FLEXIBLE OF BRAKE FRONT OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2010/APRILIA 50-125 SX, RX-00H02201591

	P2R reference	63881
	Maker reference	00D01500021

RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021

	P2R reference	188526
	Maker reference	00H006181645

00H006181645-DOSSERET SEAT

	P2R reference	188484
	Maker reference	00H00608165

00H00608165 - COLIN AZUL 2002 SD.DRD

	P2R reference	64285
	Maker reference	00H00608164

REAR MUDGUARD OEM PIAGGIO GILERA 50 SMT, RCR 2006 > 2010 BLACK-00H00608164

	P2R reference	188416
	Maker reference	00H00609164

00H00609164 - COUVRE-SELLE

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	63681
	Maker reference	000110514015

SCREW AUTOTARAUDEUSE (5X14) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-00011051401

	P2R reference	63703
	Maker reference	000121520005

SCREW CRUCIFORME (5X80) OEM PIAGIO COMMON A LA RANGE-00012152000

	P2R reference	188543
	Maker reference	00H05158651

00H05158651 - JEU ADHESIF

	P2R reference	188545
	Maker reference	00H05158653

00H05158653-SET ADHESIF

	P2R reference	188501
	Maker reference	00H05171651

00H05171651 - R-JUEGO CALCAS SM X-RACE05 RJ

	P2R reference	188502
	Maker reference	00H05171652

00H05171652 - R-JUEGO CALCAS SM X-RACE05 AZ
