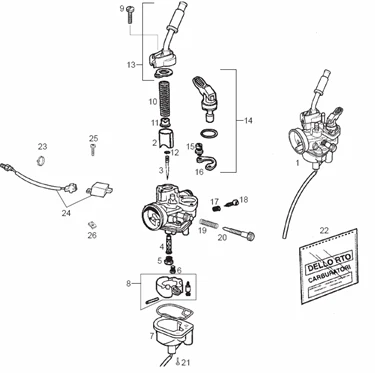

Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM X-RACE 2006 E2 4ed

	P2R reference	73261
	Maker reference	CM149905

CM149905 - CARBURATEUR

	P2R reference	73283
	Maker reference	CM152702

CARBURETTOR OEM DERBI 50 SENDA 2006 > 2010/GILERA 50 SMT 2006 > 2010, RCR 2006 > 2010-CM152702

	P2R reference	63915
	Maker reference	00F03201211

00F03201211-BOISSEAU

	P2R reference	73181
	Maker reference	CM141710

VOLET/BOISSEAU DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-CM141710

	P2R reference	73101
	Maker reference	CM107514

CARBURETTOR NEEDLE OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX, RS 2006 >-CM107514

	P2R reference	73089
	Maker reference	CM106217

CM106217-MELANGEUR 211-GA

	P2R reference	73091
	Maker reference	CM106229

CM106229 - MELANGEUR "208 HA"

	P2R reference	64768
	Maker reference	00H03208031

00H03208031 - GICLEUR DE 70

	P2R reference	188375
	Maker reference	00H03215031

00H03215031-HAND OPEN FACE 63

	P2R reference	64884
	Maker reference	00H04101181

00H04101181-R-GICLEUR MINIMUM. D. 32 SE

	P2R reference	73068
	Maker reference	CM102104

CM102104-GIGLEUR MIN 33

	P2R reference	69522
	Maker reference	847519

847519 - CUVE

	P2R reference	66664
	Maker reference	484704

CUVE CARBURETTOR SCOOTER OEM PIAGGIO 50 ZIP, NRG, LIBERTY, TYPHOON, FLY, VESPA LX, VESPA-S,/GILERA 50 RUNNER, STALKER, SMT, RCR/APRILIA 50 SR, DERBI SENDA-484704

	P2R reference	187722
	Maker reference	00H03202281

00H03202281 - R-FLOTTEUR.

	P2R reference	66625
	Maker reference	482916

FLOTTEUR, POINTEAU ET SHAFT OF CUVE FOR CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-482916

	P2R reference	64071
	Maker reference	00G03200061

00G03200061-R-BOUL. SER. COUV. CHAMBRE MEL

	P2R reference	66626
	Maker reference	482942

SPRING DE BOISSEAU OEM PIAGGIO 50 TYPHOON, ZIP, LIBERTY, NRG, FLY/DERBI SENDA 2000 >/GILERA 50 RCR, SMT, STALKER, RUNNER-482942

	P2R reference	66205
	Maker reference	288873

BUSH OF GUIDAGE AIGUILLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288873

	P2R reference	66204
	Maker reference	288872

CIRCLIPS D'AIGUILLE OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER-288872

	P2R reference	64762
	Maker reference	00H03204231

CARB COVER KIT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX 2006>2010 -00H03204231

	P2R reference	73241
	Maker reference	CM146201

STARTER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-CM146201

	P2R reference	64072
	Maker reference	00G03200541

00G03200541 - R-BOULON SER.START.AUTOM.

	P2R reference	64073
	Maker reference	00G03200551

CHOKE PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G03200551

	P2R reference	64074
	Maker reference	00G03200721

SCREW REGLAGE AIR OEM PIAGGIO COMMON A LA RANGE-00G03200721

	P2R reference	64075
	Maker reference	00G03200731

SCREW REGLAGE AIR OEM PIAGGIO COMMON A LA RANGE-00G03200731

	P2R reference	65751
	Maker reference	152608

SPRING SCREW AIR CARBU OEM PIAGGIO COMMON A LA RANGE-152608

	P2R reference	68725
	Maker reference	828074

SCREW REGLAGE THROTTLE BODY DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-828074

	P2R reference	64076
	Maker reference	00G03201091

00G03201091 - R-BOUL.SERG.VASE ESSENC.

	P2R reference	66972
	Maker reference	498409

POCHETTE/KIT JOINTS DE CARBURETTOR DELORTO OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T (POCHETTE)-498409

	P2R reference	63866
	Maker reference	00A00900531

00A00900531 - COLLIER

	P2R reference	65019
	Maker reference	00H06001151

00H06001151-KIT CHAUFFE CARBURETTOR

	P2R reference	63923
	Maker reference	00F05900041

SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485
