Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM DRD RACING LTD EDITION 2005 E2 2ed
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

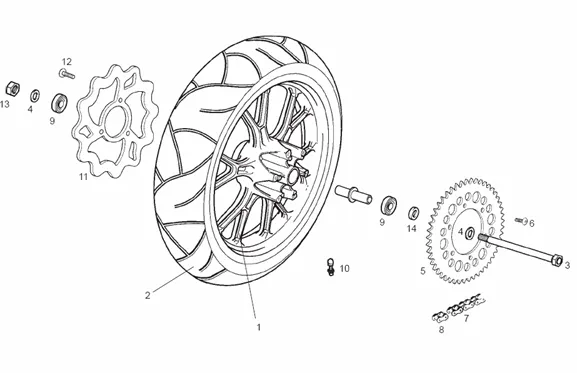

Tables : 9 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1034/SENDA_SM_DRD_RACING_LTD_EDITION_2005_E2_2ed_9.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/1/5/img/64515.jpg)
1 |
RIM/REAR WHEEL 17 POUCES OEM DERBI 50 SENDA SM > 2005/GILERA 50 SMT 2011 >/APRILIA 50 SX 2011 >-00H01312381 More informationQuantity required : 1 |
||||||
2 |
899860-TYRE AR SAVATECH 130/70X17 " More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/7/6/img/64476.jpg)
3 |
WHEEL SPINDLE REAR (L 275) (D15) OEM DERBI 50 SENDA 2003 < 2007/GILERA 50 SMT RACING 2011 >/APRILIA 50 SX, RX FACTORY 2018 >-00H01303201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/0/img/63730.jpg)
4 |
WASHER WHEEL (DIAMETRE 15) OEM PIAGGIO GILERA 50 50 SMT, RCR/DERBI 50 SENDA/APRILIA RS, RX, SX-00032015000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/2/5/img/69925.jpg)
5 |
COURONNE 53 TEETH OEM PIAGGIO 50 GILERA SMT 2011 >/DERBI SENDA 2006 > 2015/APRILIA RS4 2011 >, RX 2011 >, SX 2011 >-86182R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/5/9/img/151759.jpg)
6 |
SCREW FLANGE TH (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B004560 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/5/6/img/72856.jpg)
7 |
CHAIN 420/130M OEM PIAGGIO 50 APRILIA RS4 2011 >, RX 2006 >, SX 2006 >/DERBI SENDA/GILERA 50 SMT 2006 >, RCR 2006 >-B046219 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/3/img/64533.jpg)
8 |
CLIP QUICK FITTING CHAIN IRIS 130 MAILLONS OEM PIAGGIO-00H01501212 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/8/1/img/67481.jpg)
9 |
BEARING (15X35X11) REAR WHEEL OEM PIAGGIO 50 GILERA SMT 2011 >/DERBI SENDA 2003 >-601345 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
10 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991 More informationQuantity required : 1 |
||||||
|
11 |
00H01312531-BRAKE DISC REAR More informationQuantity required : 1 |
||||||
|
12 |
SCREW FLANGE TH (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B004560 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/1/4/img/64214.jpg)
13 |
NUT FRONT WHEEL OU REAR 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2003 >/APRILIA RS4 2011 >, 50 SX, RX 2011 >-00H00300672 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/2/2/img/70322.jpg)
14 |
WASHER WHEEL SPINDLE REAR OEM PIAGGIO 50 GILERA 50 SMT, RCR 2011 >/DERBI SENDA SM 2003 >/APRILIA SX, RX 2011 >-867301 More informationQuantity required : 1 |
