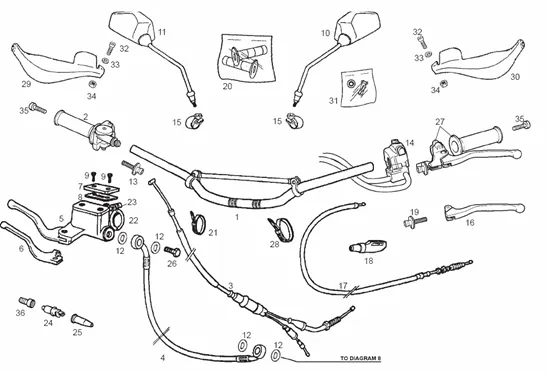

Tables : 6 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1034/SENDA_SM_DRD_RACING_LTD_EDITION_2005_E2_2ed_6.png)
1 |
00H00906014 - GUIDON More informationQuantity required : 1 |
||||||
|
2 |
00H02103621 - POIGNEE DE GAZ COMPLETE More informationQuantity required : 1 |
||||||
|
3 |
00H00920171-GAINE ET CABLE DE THROTTLE More informationQuantity required : 1 |
||||||
|
4 |
00H00927751 - FLEXIBLE DE FREIN AVANT More informationQuantity required : 1 |
||||||
|
5 |
00H02112081 - R-ENSEM.KIT REPAR. POMPE SE More informationQuantity required : 1 |
||||||
|
6 |
00H00906202 - MANETE DU FREIN AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/4/8/img/64648.jpg)
7 |
FRONT BRAKE MASTER CYLINDER COVER "PIAGGIO GENUINE PART" GILERA 50 SMT-RCR 2006> -00H02100191- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/5/1/img/64651.jpg)
8 |
FRONT MASTER CYLINDER GASKET "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02100861 More informationQuantity required : 1 |
||||||
|
9 |
|
||||||
|
10 |
00H04603921 - ENSEMBLE MIRROIR RETROVISEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/7/6/img/64676.jpg)
11 |
MIRROR- RIGHT "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2006>2010 -00H02207671 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/0/3/img/70303.jpg)
12 |
GASKET/WASHER HOSE OF BRAKE OEM PIAGGIO 50 DERBI 50 SENDA 2000 >/APRILIA RX, SX, RS, TUONO/GILERA 50 SMT, RCR-867238 More informationQuantity required : 1 |
||||||
|
13 |
00H00900191-CLAMP FIX ELIERIE More informationQuantity required : 1 |
||||||
|
14 |
00H02305171 - INVERSEUR AVEC CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/6/5/img/64665.jpg)
15 |
00H02200681 - COLLIER More informationQuantity required : 1 |
||||||
|
16 |
00H00903292-LEVER CLUTCH More informationQuantity required : 1 |
||||||
|
17 |
00H00908301-GAINE ET CABLE DIEMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/5/3/img/64653.jpg)
18 |
PROTEGE LEVER CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX-00H02101011 More informationQuantity required : 1 |
||||||
|
19 |
00H00902351-CLAMP FIX ELIERIE More informationQuantity required : 1 |
||||||
|
20 |
00H00906081 - KIT CAOUTCHOUC DE PIGNEE More informationQuantity required : 1 |
||||||
|
21 |
00A00900531 - COLLIER More informationQuantity required : 1 |
||||||
|
22 |
00H02100901-CLAMP * More informationQuantity required : 1 |
||||||
|
23 |
00002051251-SCREW A HEAD CREUSE 5M80X12 N More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/0/img/63870.jpg)
24 |
INTERRUPTEUR DE STOP OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006, RS 2006 > 2010-00D01000701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/5/4/img/63654.jpg)
25 |
CAPUCHON DE CONTACTEUR DE STOP OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RX/SX-00005010760 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/6/7/7/img/187677.jpg)
26 |
SCREW FLEXIBLE OF BRAKE OEM PIAGGIO 50 DRD 2005 < 2011-00H00901261 More informationQuantity required : 1 |
||||||
|
27 |
00H02106612 - ENS. PORTE-MANETTE GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/9/img/63899.jpg)
28 |
HOSE CLAMP NYLON TYPE RILSAN (290X4. 8) OEM PIAGGIO COMMON A LA RANGE-00F00900531 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/2/1/img/65921.jpg)
29 |
20H02102011-PROTECTOR DRT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/2/2/img/65922.jpg)
30 |
20H02102831-PROTECTOR GAU. More informationQuantity required : 1 |
||||||
|
31 |
00H00900511 - KIT VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/4/0/img/66340.jpg)
32 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-323990 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
33 |
WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
34 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 1 |
||||||
|
35 |
863192 - TOR.FIJ.PROT.MANET.8X55 AL.ORO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/3/0/img/64330.jpg)
36 |
SPACER DE CONTACTEUR DE STOP OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2004 >/APRILIA 50 SX, RX-00H00900871 More informationQuantity required : 1 |
