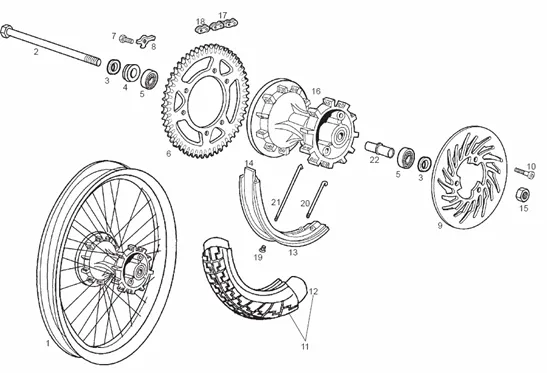

Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM DRD RACING 2005-2008 E2 2ver

	P2R reference	187981
	Maker reference	00H02410331

00H02410331 - CTO.LLANTA TR.C/CA SM RAC.AZ

	P2R reference	187982
	Maker reference	00H02410332

00H02410332 - CTO.LLANTA TR.C/CA SM RAC.NG

	P2R reference	64476
	Maker reference	00H01303201

WHEEL SPINDLE REAR (L 275) (D15) OEM DERBI 50 SENDA 2003 < 2007/GILERA 50 SMT RACING 2011 >/APRILIA 50 SX, RX FACTORY 2018 >-00H01303201

	P2R reference	63730
	Maker reference	000320150005

WASHER WHEEL (DIAMETRE 15) OEM PIAGGIO GILERA 50 50 SMT, RCR/DERBI 50 SENDA/APRILIA RS, RX, SX-00032015000

	P2R reference	70322
	Maker reference	867301

WASHER WHEEL SPINDLE REAR OEM PIAGGIO 50 GILERA 50 SMT, RCR 2011 >/DERBI SENDA SM 2003 >/APRILIA SX, RX 2011 >-867301

	P2R reference	67481
	Maker reference	601345

BEARING (15X35X11) REAR WHEEL OEM PIAGGIO 50 GILERA SMT 2011 >/DERBI SENDA 2003 >-601345

	P2R reference	69924
	Maker reference	86180R

86180R-COURONNE

	P2R reference	63701
	Maker reference	000120830015

SCREW TH (8X30) OEM PIAGGIO COMMON A LA RANGE-00012083001

	P2R reference	64468
	Maker reference	00H01302052

00H01302052-ARRETOIR DES BOULONS DISC

	P2R reference	70066
	Maker reference	864732

BRAKE DISC REAR OEM PIAGGIO GILERA 50 RCR 2011 >/APRILIA 50 RX, SX 2011-864732

	P2R reference	64696
	Maker reference	00H02401282

SCREW REAR BRAKE DISC OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI 50 SENDA 2000 > 2010/APRILIA 50 SX, RX 2006 >-00H02401282

	P2R reference	43268
	Maker reference	899860

899860-TYRE AR SAVATECH 130/70X17 "

	P2R reference	64508
	Maker reference	00H01309361

INNER TUBE REAR 17 POUCES OEM PIAGGIO 50 GILERA SMT 2006 > 2010/DERBI SENDA 2010 >/APRILIA SX 2006 > 2010-00H01309361

	P2R reference	187983
	Maker reference	00H01306352

00H01306352 - LLANTA RDA.TR.17X3 50 AZUL .

	P2R reference	64492
	Maker reference	00H01306353

00H01306353 - JANTE ARRIERE NUE.

	P2R reference	64507
	Maker reference	00H01309352

00H01309352 - JANTE ARRIERE NUE.

	P2R reference	63880
	Maker reference	00D01303401

RIM TAPE OEM PIAGGIO 17/18 ¨ (LARGEUR 40)-00D01303401

	P2R reference	64214
	Maker reference	00H00300672

NUT FRONT WHEEL OU REAR 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2003 >/APRILIA RS4 2011 >, 50 SX, RX 2011 >-00H00300672

	P2R reference	64494
	Maker reference	00H01306824

00H01306824 - MOYEU ARRIERE

	P2R reference	72856
	Maker reference	B046219

CHAIN 420/130M OEM PIAGGIO 50 APRILIA RS4 2011 >, RX 2006 >, SX 2006 >/DERBI SENDA/GILERA 50 SMT 2006 >, RCR 2006 >-B046219

	P2R reference	64533
	Maker reference	00H01501212

CLIP QUICK FITTING CHAIN IRIS 130 MAILLONS OEM PIAGGIO-00H01501212

	P2R reference	63627
	Maker reference	000022120705

TETES DE SPOKE AV/AR OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX-00002212070

	P2R reference	64480
	Maker reference	00H01303691

SPOKE DE FRONT WHEEL OEM PIAGGIO GILERA 50 SMT 2006/APRILIA 50 SX 2010 >-00H01303691

	P2R reference	64466
	Maker reference	00H01301731

SPOKE REAR WHEEL INNER (L199X3) OEM PIAGGIO GILERA 50 SMT 2006 >/DERBI 50 SENDA SM 2000 > 2010-00H01301731

	P2R reference	64474
	Maker reference	00H01303091

SEPARATEUR DE ROULEMENTS REAR WHEEL OEM PIAGGIO GILERA 50 SMT, RCR 1999 > 2005-00H01303091
