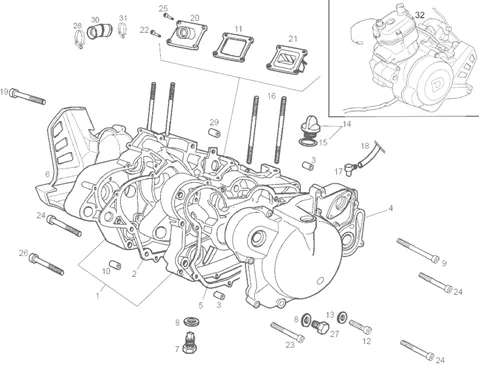

Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM DRD RACING 2005-2008 E2 2ver

	P2R reference	73264
	Maker reference	CM1503065

CASING ENGINE 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI 50 SENDA 2006 >/APRILIA 50 SX, RX 2006 > (ENGINE EURO 3)-CM1503065

	P2R reference	72668
	Maker reference	1A009969

GASKET OF CASING ENGINE OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA RX, SX 2006 >, RS 2006 > 2010, RS4 2011 >-1A009969

	P2R reference	69508
	Maker reference	847241

PION DE CENTRAGE CASING OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 RS, SX, RX-847241

	P2R reference	73267
	Maker reference	CM1507034
	Replaced by référence 219274

CLUTCH COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -CM1507034

	P2R reference	70740
	Maker reference	880888

GASKET CASING CLUTCH 50 A BOX OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA RS 2006 >, RX 2006 >, SX 2006-880888

	P2R reference	64750
	Maker reference	00H03007241

COVER IGNITION OEM DERBI 50 SENDA 2006 < 2017/GILERA 50 SMT, RCR 2011 > 2017-00H03007241

	P2R reference	69505
	Maker reference	8472376

CAP DE VIDANGE OIL OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX, RS 2006 >, RS4 2011 >-8472376

	P2R reference	69506
	Maker reference	847238

GASKET VIDANGE OEM PIAGGIO 350 BEVERLY, X10/GILERA 50 SMT, RCR/DERBI SENDA 50 2000 >/APRILIA 50 SX, RX, RS-847238

	P2R reference	70533
	Maker reference	874552

SCREW FLANGE TH (6X55) OEM PIAGGIO COMMON A LA RANGE-874552

	P2R reference	69415
	Maker reference	847023

PION DE CENTRAGE (D15X20) CASING ENGINE OEM PIAGGIO 50 GILERA SMT, RCR/APRILIA SX, RX, RS/DERBI SENDA 2006 >-847023

	P2R reference	69461
	Maker reference	847091

GASKET OF REED VALVE OEM PIAGGIO GILERA 50 SMT, RCR2006 > 2017/DERBI 50 SENDA 2000 > 2017/APRILIA 50 SX, RX, RS 2006 > 2017-847091

	P2R reference	66338
	Maker reference	319446

SCREW BTR (6X10) OEM PIAGGIO COMMON A LA RANGE-319446

	P2R reference	69507
	Maker reference	847239

WASHER PLATE (6X10, 5X1) OEM PIAGGIO COMMON A LA RANGE-847239

	P2R reference	69459
	Maker reference	8470875

CAP REMPLISSAGE OIL OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX, RS 2006 >-8470875

	P2R reference	69479
	Maker reference	847180

O-RING CIRCUIT ALIMENTATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-847180

	P2R reference	70650
	Maker reference	877264

STUD DE CYLINDER (109MM) OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA SX, RX 2006 >, RS 2006 > 2010, RS4 2011 >-877264

	P2R reference	69416
	Maker reference	847024

FITTING RENIFLARD OIL OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA RS, SX, RX 2006 >-847024

	P2R reference	72283
	Maker reference	AP8220402

AP8220402-HOSE

	P2R reference	71944
	Maker reference	AP8152281

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281

	P2R reference	149169
	Maker reference	847093

FITTING/MANIFOLD INTAKE OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA RS, SX, RX 2006 > 2017-1A010664

	P2R reference	149169
	Maker reference	1A010664

FITTING/MANIFOLD INTAKE OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA RS, SX, RX 2006 > 2017-1A010664

	P2R reference	149117
	Maker reference	1A003630

CLAPET 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX, RS 2006 >/DERBI 50 SENDA 2006 >-1A003630

	P2R reference	72720
	Maker reference	B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

	P2R reference	66367
	Maker reference	414838

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

	P2R reference	64067
	Maker reference	00G03002091

SCREW - FOR CRANKCASE (M6 100X40) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G03002091-

	P2R reference	109062
	Maker reference	830487

SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352

	P2R reference	109062
	Maker reference	1A000352

SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352

	P2R reference	64746
	Maker reference	00H03000091

SCREW FLANGE TH (6X50) OEM PIAGGIO COMMON A LA RANGE-00H03000091

	P2R reference	204758
	Maker reference	847174

CAP DE VIDANGE OEM PIAGGIO 350-400 MP3, BEVERLY, X10/GILERA 50 SMT/DERBI 50 SENDA/APRILIA 50 RS-1A021939

	P2R reference	204758
	Maker reference	1A021939

CAP DE VIDANGE OEM PIAGGIO 350-400 MP3, BEVERLY, X10/GILERA 50 SMT/DERBI 50 SENDA/APRILIA 50 RS-1A021939

	P2R reference	64707
	Maker reference	00H02501491

CLAMP DE FITTING INTAKE (CARBU) OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2003 > 2017/APRILIA SX, RX 2006 > 2013-00H02501491

	P2R reference	69415
	Maker reference	847023

PION DE CENTRAGE (D15X20) CASING ENGINE OEM PIAGGIO 50 GILERA SMT, RCR/APRILIA SX, RX, RS/DERBI SENDA 2006 >-847023

	P2R reference	70352
	Maker reference	871319

SLEEVE D'ADMISSION OEM PIAGGIO 50 APRILIA RS 2006 >, RS4 2011 >, SX, RX 2006 >/DERBI SENDA 2000 >/GILERA SMT 2006 >, RCR 2006 >-871319

	P2R reference	69463
	Maker reference	847096

CLAMP SLEEVE D'ADMISSION OEM PIAGGIO 50 APRILIA RS4 2011 >, RX, SX 2006 >/DERBI SENDA 2006 >/GILERA SMT 2006 >, RCR 2006 >-847096

	P2R reference	73272
	Maker reference	CM1513115

CM1513115 - MOTEUR 50 2T "H2O" SENDA KICK
