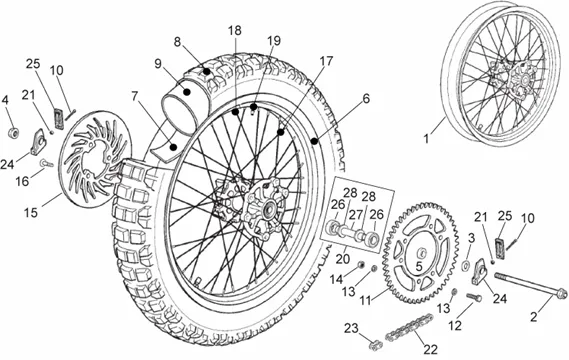

Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM DRD PRO 2005-2011 E2

	P2R reference	187868
	Maker reference	8675600001

8675600001 - ROUE AR.

	P2R reference	187869
	Maker reference	00H01308201

00H01308201 - AXE ROUE

	P2R reference	63730
	Maker reference	000320150005

WASHER WHEEL (DIAMETRE 15) OEM PIAGGIO GILERA 50 50 SMT, RCR/DERBI 50 SENDA/APRILIA RS, RX, SX-00032015000

	P2R reference	70327
	Maker reference	867313

SPACER DE REAR WHEEL OEM DERBI 50 SENDA/GILERA 50 RCR 2011 >/APRILIA 50 RX 2011 >-867313

	P2R reference	64492
	Maker reference	00H01306353

00H01306353 - JANTE ARRIERE NUE.

	P2R reference	63880
	Maker reference	00D01303401

RIM TAPE OEM PIAGGIO 17/18 ¨ (LARGEUR 40)-00D01303401

	P2R reference	43268
	Maker reference	899860

899860-TYRE AR SAVATECH 130/70X17 "

	P2R reference	64508
	Maker reference	00H01309361

INNER TUBE REAR 17 POUCES OEM PIAGGIO 50 GILERA SMT 2006 > 2010/DERBI SENDA 2010 >/APRILIA SX 2006 > 2010-00H01309361

	P2R reference	64472
	Maker reference	00H01302491

SCREW BTR (6X60) OEM PIAGGIO COMMON A LA RANGE-00H01302491

	P2R reference	69924
	Maker reference	86180R

86180R-COURONNE

	P2R reference	63701
	Maker reference	000120830015

SCREW TH (8X30) OEM PIAGGIO COMMON A LA RANGE-00012083001

	P2R reference	63888
	Maker reference	00D02500271

WASHER PLATE (8. 4X10. 5X0. 8) OEM PIAGGIO COMMON A LA RANGE-00D02500271

	P2R reference	63767
	Maker reference	002620800225

NUT AUTOBLOQUANT/NYLSTOP (M8X125) OEM PIAGGIO COMMON A LA RANGE-00262080022

	P2R reference	70066
	Maker reference	864732

BRAKE DISC REAR OEM PIAGGIO GILERA 50 RCR 2011 >/APRILIA 50 RX, SX 2011-864732

	P2R reference	64696
	Maker reference	00H02401282

SCREW REAR BRAKE DISC OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI 50 SENDA 2000 > 2010/APRILIA 50 SX, RX 2006 >-00H02401282

	P2R reference	187870
	Maker reference	00H01306731

00H01306731 - RAYON

	P2R reference	187871
	Maker reference	00H01306691

00H01306691 - RAYON

	P2R reference	151815
	Maker reference	00H01202071

NUT DE SPOKE (D3, 5) OEM PIAGGIO COMMON A LA RANGE-AP8208410

	P2R reference	187922
	Maker reference	866746

KIT BEARING + SPACER DE REAR WHEEL OEM DERBI 50 SENDA R, SM DRD PRO 2005 > 2011-866746

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	64555
	Maker reference	00H01507201

CHAIN WITH CONNECTING LINK "PIAGGIO GENUINE PART" APRILIA 50 SX, RX -00H01507201

	P2R reference	64533
	Maker reference	00H01501212

CLIP QUICK FITTING CHAIN IRIS 130 MAILLONS OEM PIAGGIO-00H01501212

	P2R reference	64493
	Maker reference	00H01306811

COULISSE DE TENDEUR DE REAR WHEEL OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00H01306811

	P2R reference	64488
	Maker reference	00H01306171

COVER DE TENDEUR DE REAR WHEEL OEM DERBI 50 SENDA DRD 2005 > 2011/APRILIA 50 RS 2006 > 2010-00H01306171

	P2R reference	67481
	Maker reference	601345

BEARING (15X35X11) REAR WHEEL OEM PIAGGIO 50 GILERA SMT 2011 >/DERBI SENDA 2003 >-601345

	P2R reference	187923
	Maker reference	867553

867553 - ENTRETOISE

	P2R reference	70284
	Maker reference	867072

COUSSINET BRONZE REAR WHEEL OEM PIAGGIO GILERA 50 SMT 2018 >/DERBI 50 SENDA 2005 > 2011-867072
