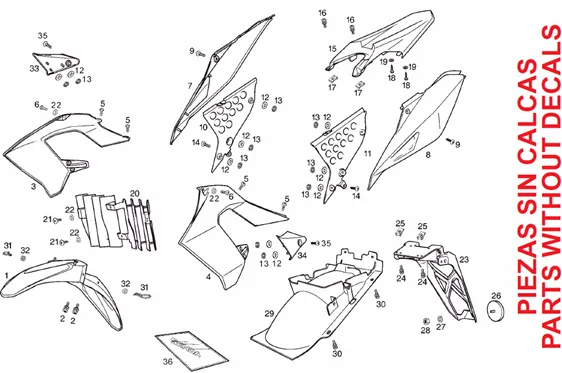

Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM DRD PRO 2005-2011 E2

	P2R reference	187794
	Maker reference	00H007220215

00H007220215 - GARDE-BOUE AVANT RGE

	P2R reference	187795
	Maker reference	00H007220245

00H007220245-R-GUARDAB. DLNT. AZL. AL. SM DRD PRO FRA

	P2R reference	187796
	Maker reference	00H007250215

00H007250215-R-GUARDAB. DLNT. NG. OM. SM DRD 50CC

	P2R reference	187797
	Maker reference	20H00725021

20H00725021 - GARDE-BOUE AV

	P2R reference	187798
	Maker reference	86386900WG05

86386900WG05 - R-GUARDAB.DLNT.AMAR.DRD PRO MALOSSI

	P2R reference	187799
	Maker reference	86507900WB15

86507900WB15-MUDGUARD AV.

	P2R reference	64151
	Maker reference	00G06800021

SCREW CRUCIFORME (6X20) OEM PIAGGIO COMMON A LA RANGE-00G06800021

	P2R reference	65008
	Maker reference	00H05900021

SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021

	P2R reference	187800
	Maker reference	20H04416771

FAIRING/DEFLECTOR TANK RIGHT OEM DERBI 50 SENDA DRD PRO 2005 > 2011 UNPAINTED-20H04416771

	P2R reference	187801
	Maker reference	20H04416781

FAIRING/DEFLECTOR TANK LEFT OEM DERBI 50 SENDA DRD PRO 2005 > 2011 UNPAINTED-20H04416781

	P2R reference	187802
	Maker reference	86430700WB15

86430700WB15 - R-TAPA LAT.DEPO.IZ.BL.AJ.DRD PRO 07

	P2R reference	187803
	Maker reference	20H00510071

20H00510071 - COUVERCLE LATERAL D

	P2R reference	187804
	Maker reference	86158500WR15

86158500WR15 - R-TAPA LTERAL.DR.RJO.MAL.SM 80

	P2R reference	187805
	Maker reference	20H00510081

BODY PANEL/SIDE PANEL REAR LEFT OEM DERBI 50 SENDA R, SM DRD PRO 2005 > 2011 BLANCHE-20H00510081

	P2R reference	187806
	Maker reference	00H005100835

00H005100835 - R-TAPA LTRAL.IZ.AZL.AÐL.DRD 50CC

	P2R reference	187807
	Maker reference	86158600WR15

86158600WR15 - R-TAPA LTERAL.IZ.RJO.MAL.SM 80

	P2R reference	64537
	Maker reference	00H01501701

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00H01501701

	P2R reference	187808
	Maker reference	00H01527231

FAIRING SOUS SEAT RIGHT OEM DERBI 50 SENDA R, SM DRD PRO 2005 > 2011-00H01527231

	P2R reference	187809
	Maker reference	00H06801321

FAIRING SOUS SEAT LEFT OEM DERBI 50 SENDA R, SM DRD PRO 2005 > 2011-00H06801321

	P2R reference	71410
	Maker reference	AP8120622

WASHER PLATE (6X12) NYLON FOR FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8120622

	P2R reference	69844
	Maker reference	861239

WASHER DE HEAD OF FORK D5 INOX OEM PIAGGIO 50 APRILIARS 2006 > 2010/DERBI 50 SENDA 2000 >/GILERA SMT, RCR 2006 >-861239

	P2R reference	64537
	Maker reference	00H01501701

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00H01501701

	P2R reference	187810
	Maker reference	20H00617161

20H00617161 - QUEUE

	P2R reference	187811
	Maker reference	86158400WB15

86158400WB15 - R-COLIN BLN.AJD.SM DRD PRO 50 08

	P2R reference	187812
	Maker reference	86158400WG05

86158400WG05 - R-COLIN SILLIN AMAR.MAL.SM 80

	P2R reference	65008
	Maker reference	00H05900021

SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63683
	Maker reference	000110518015

SCREW CRUCIFORME (5. 1X18) TARAUD OEM PIAGGIO COMMON A LA RANGE-00011051801

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	187813
	Maker reference	00H03808301

GRILLE VENTILATION DE RADIATOR OEM DERBI 50 SENDA R, SM DRD PRO 2005 > 2011-00H03808301

	P2R reference	63687
	Maker reference	000111413005

SCREW PARKER (4, 8X13) CRUCIFORME OEM COMMON A LA RANGE-00011141300

	P2R reference	69480
	Maker reference	847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

	P2R reference	187814
	Maker reference	00H00719341

00H00719341 - SUPL. GARDE BOUE AR.

	P2R reference	63923
	Maker reference	00F05900041

SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	72325
	Maker reference	AP8224164

CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE-AP8224164

	P2R reference
	Maker reference	031040

VIS

	P2R reference	63588
	Maker reference	000000230405

NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-00000023040

	P2R reference	187815
	Maker reference	00H00709121

00H00709121 - GARDE-BOUE

	P2R reference	65008
	Maker reference	00H05900021

SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021

	P2R reference	64668
	Maker reference	00H02201591

GUIDE CABLE DE FLEXIBLE OF BRAKE FRONT OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2010/APRILIA 50-125 SX, RX-00H02201591

	P2R reference	63881
	Maker reference	00D01500021

RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021

	P2R reference	187816
	Maker reference	00H02204461

BRACKET DE FAIRING RIGHT OEM DERBI 50 SENDA R, SM DRD PRO 2005 > 2011-00H02204461

	P2R reference	187817
	Maker reference	00H05905521

BRACKET DE FAIRING LEFT OEM DERBI 50 SENDA R, SM DRD PRO 2005 > 2011-00H05905521

	P2R reference	64544
	Maker reference	00H01503701

SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-00H01503701

	P2R reference	187818
	Maker reference	00H05175651

STICKER/STICKER/KIT DECORS OEM DERBI 50 SENDA SM PRO DRD BLACK 2005 > 2011-00H05175651

	P2R reference	187819
	Maker reference	861614

STICKER/STICKER/KIT DECORS OEM DERBI 50 SENDA SM PRO DRD BLUE 2005 > 2011-861614

	P2R reference	187820
	Maker reference	86389000WN0

86389000WN0 - R-CTO.KIT CALCAS SM DRD PRO MALOSSI 07

	P2R reference	187821
	Maker reference	865331

STICKER/STICKER/KIT DECORS OEM DERBI 50 SENDA SM PRO DRD WHITE 2005 > 2011-865331
