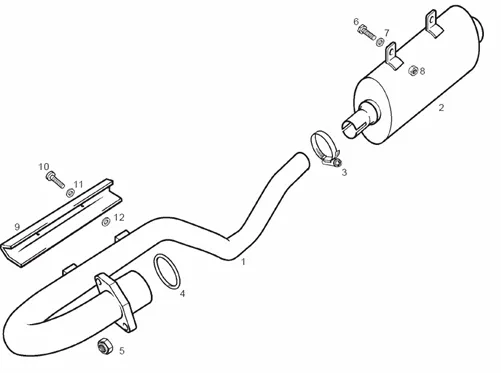

Tables : 29 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1073/Senda_SM_125_4T_2004-2007_(EMEA)_29.png)
1 |
00H03444011 - ENSEMBLE TUBE DIECHAPPEMENT More informationQuantity required : 1 |
||||||
|
2 |
00H03432411-SILENCER DIECHAPPEMENT More informationQuantity required : 1 |
||||||
|
3 |
00H03402061 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
4 |
967299-GASKET More informationQuantity required : 1 |
||||||
|
5 |
|
||||||
|
6 |
00000004820-BOLT HEAD HEX. 8M125X20 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/6/img/63596.jpg)
7 |
WASHER PLATE (8. 4X15. 8X1. 5) OEM PIAGGIO COMMON A LA RANGE-00000031080 More informationQuantity required : 1 |
||||||
|
8 |
00000023080-NUT INDESSERABLE 8M125 More informationQuantity required : 1 |
||||||
|
9 |
00H01808391 - PROTECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/0/img/63580.jpg)
10 |
SCREW CRUCIFORME (4X15) OEM PIAGGIO COMMON A LA RANGE-00000012415 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/2/img/63922.jpg)
11 |
WASHER FIBRE (M5X20X2) OEM PIAGGIO COMMON A LA RANGE-00F04201361 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
12 |
WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181 More informationQuantity required : 1 |
||||||
|
21 |
00H02705421-PEDALE DE SELECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
22 |
SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8150165 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/0/img/63790.jpg)
23 |
WASHER GROWER D6 OEM PIAGGIO COMMON A LA RANGE-00442060002 More informationQuantity required : 1 |
