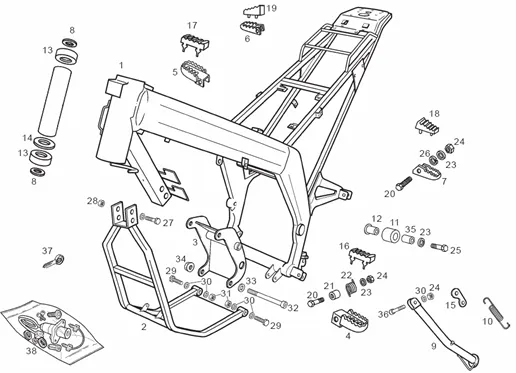

Châssis - parties plastiques - carrosseries : 1 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1073/Senda_SM_125_4T_2004-2007_(EMEA)_1.png)
1 |
00H01976601 - SOUS ENSEMBLE CADRE More informationQuantity required : 1 |
||||||
|
2 |
00H00104941 - SOUS ENSEMBLE CADRE More informationQuantity required : 1 |
||||||
|
3 |
00H00103961 - SUPPORT MOTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/6/7/img/64667.jpg)
4 |
FOOTREST PILOTE LEFT OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H02201312 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/6/6/img/64666.jpg)
5 |
FOOTREST PILOTE RIGHT OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H02201302 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/4/img/63884.jpg)
6 |
REST-FOOT PASSENGER RIGHT OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >-00D01520096 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/5/img/63885.jpg)
7 |
REST-FOOT PASSENGER LEFT OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >-00D01520456 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/2/img/63672.jpg)
8 |
WASHER DE SET OF STEERING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 >/APRILIA SX, RX-00008902630 More informationQuantity required : 1 |
||||||
|
9 |
00H00826011A-SIDE STAND More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/5/img/64315.jpg)
10 |
SPRING DE STAND OEM PIAGGIO GILERA 50 SMT, RCR 2006/DERBI SENDA 2000 > 2010-00H00804081 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/1/4/img/64614.jpg)
11 |
ROULETTE GUIDE CHAIN OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H01801771 More informationQuantity required : 1 |
||||||
|
12 |
00H01803791 - ENTRETOISE GUIDE CHAINE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/6/img/63606.jpg)
13 |
BEARING (25X52X15) DE STEERING OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2015/APRILIA SX, RX 2006 > 2011-00000056205 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/4/8/img/65048.jpg)
14 |
WASHER COUSSINET TUBE STEERING OEM PIAGGIO 50 A BOX-00H06500451 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/0/img/64310.jpg)
15 |
PLATE/BRACKET SPRING DE STAND OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 RS, RX, SX 2006 >-00H00800422 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/6/img/64536.jpg)
16 |
MATTE OF REST-FOOT LEFT OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA SM 2000 > 2009/APRILIA 50 SX, RX 2006 >-00H01501501 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/8/img/64538.jpg)
17 |
MATTE OF REST-FOOT RIGHT/LEFT OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA SM 2000 > 2009/APRILIA 50 SX, RX 2006 >-00H01502101 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/4/0/img/64540.jpg)
18 |
RUBBER PASSENGER FOOTREST LEFT ORIGNE DERBI 50 SENDA-00H01502501 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/4/2/img/64542.jpg)
19 |
RUBBER PASSENGER FOOTREST RIGHT ORIGNE DERBI 50 SENDA-00H01503101 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/3/img/63713.jpg)
20 |
SCREW TH (8X40) OEM PIAGGIO COMMON A LA RANGE/FOOTREST DEBI SENDA-00022084021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/2/8/img/63628.jpg)
21 |
BUSH ARTICULATION OF REST FOOT OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR/APRILIA 50 RX, SX-00002215152 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/5/4/img/64954.jpg)
22 |
SPRING FOOTREST PILOTE 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX 2006 >-00H04903292 More informationQuantity required : 1 |
||||||
|
23 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/5/img/63715.jpg)
24 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-00023108000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/5/2/img/63652.jpg)
25 |
SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-00004184500 More informationQuantity required : 1 |
||||||
|
26 |
|
||||||
|
27 |
|
||||||
|
28 |
|
||||||
|
29 |
SCREW TH (8X40) OEM PIAGGIO COMMON A LA RANGE/FOOTREST DEBI SENDA-00022084021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/7/img/63787.jpg)
30 |
WASHER PLATE (D8) MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS-00402080001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/7/img/63767.jpg)
31 |
NUT AUTOBLOQUANT/NYLSTOP (M8X125) OEM PIAGGIO COMMON A LA RANGE-00262080022 More informationQuantity required : 1 |
||||||
|
32 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/9/img/63789.jpg)
33 |
WASHER PLATE D10, 5 SPINDLE MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 > 2015/APRILIA 50 RS, SX, RX-00402100001 More informationQuantity required : 1 |
||||||
|
34 |
|
||||||
|
35 |
00H01803781 - ENTRETOISE GUIDE CHAINE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/6/img/64316.jpg)
36 |
SCREW MOUNTING STAND OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2010 >/APRILIA SX, RX 2006 >-00H00805072 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/1/0/img/63910.jpg)
37 |
EBAUCHE DE CLE OEM PIAGGIO 50 GILERA SMT, RCR 2000 > 2009/DERBI SENDA 2000 > 2011-00F01811411 More informationQuantity required : 1 |
||||||
|
38 |
00H05909251 - ENS.KIT SERRURES More informationQuantity required : 1 |
