Vehicle Exploded View - DERBI SENDA R 50 Senda R X-Trem 50 2T E2 2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

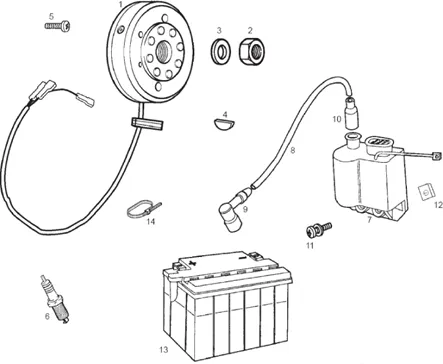

Moteur : 65.24 GROUPE ALLUMAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1097/Senda_R_X-Trem_50_2T_E2_2010_65.24.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/4/3/img/68743.jpg)
1 |
IGNITION (COMPLETE ROTOR + STATOR) OEM DERBI 50 SENDA 2018 </GILERA 50 RCR, SMT 2017 </APRILIA RX, SX 2017 <-82829R More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/3/img/69503.jpg)
2 |
NUT IGNITION OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA SX, RX, RS 2006 >, RS4 2011 >-847235 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/2/7/img/151727.jpg)
3 |
WASHER ROTOR IGNITION OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2006 >/APRILIA 50 SX, RX, RS-1A011675 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/8/img/69488.jpg)
4 |
CLAVETTE DE VOLANT IGNITION ET CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS, RX, SX 2006 >, RS4 2011 >-847215 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/1/img/69501.jpg)
5 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -847233- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/5/7/img/69457.jpg)
6 |
SPARK PLUG B8ES OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2006 > 2010/MOTO-GUZZI V65, NEVADA, STRADA-847085 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/8/7/img/64787.jpg)
7 |
BOBINE IGNITION OEM DERBI 50 SENDA 2002 > 2017/GILERA 50 SMT 2006 > 2017/APRILIA 50 RS, RX, SX 2006 > 2017-00H03330171 More informationQuantity required : 0 |
||||||
7 |
00H03334171 - BOBINE AUTE TENSION More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
8 |
CABLE HAUTE TENSION OEM PIAGGIO COMMON A TOUTE LA RANGE-080341 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/8/3/img/64083.jpg)
9 |
00G03301271-MANIFOLD DE SPARK PLUG More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/6/img/65966.jpg)
10 |
CAPUCHON ISOLANT OEM PIAGGIO COMMON A LA RANGE-231571 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/5/1/img/64151.jpg)
11 |
SCREW CRUCIFORME (6X20) OEM PIAGGIO COMMON A LA RANGE-00G06800021 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
12 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/0/img/65970.jpg)
13 |
BATTERY 12V 4AH YB4L-B OEM PIAGGIO COMMON A LA RANGE-234390 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/9/img/63899.jpg)
14 |
HOSE CLAMP NYLON TYPE RILSAN (290X4. 8) OEM PIAGGIO COMMON A LA RANGE-00F00900531 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/8/img/41728.jpg)
15 |
GASKET EPONGE ADHESIVE 15X8 OEM PIAGGIO COMMON A LA RANGE-890512 More informationQuantity required : 0 |
