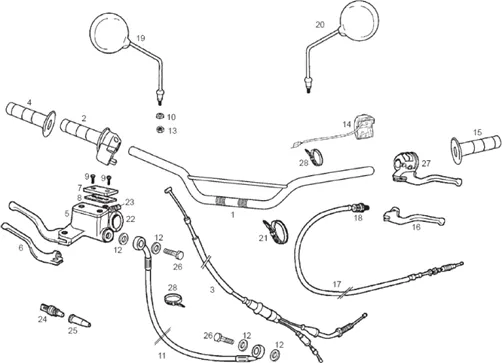

Vehicle Exploded View - DERBI SENDA R 50 Senda R X-Trem 50 2T E2 2010

	P2R reference	64344
	Maker reference	00H00908012A

HANDLEBAR OEM PIAGGIO GILERA 50 SMT, RCR 2006 > 2010-00H00908012A

	P2R reference	188457
	Maker reference	86649800WGB

86649800WGB - GUIDON

	P2R reference	64654
	Maker reference	00H02101621

THROTTLE GRIP 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 RX, SX 2006 >-00H02101621

	P2R reference	64361
	Maker reference	00H00931171

CABLE/CONTROL/TRANSMISSION THROTTLE OEM PIAGGIO APRILIA 50 SX, RX 2006 >-00H00931171

	P2R reference	188458
	Maker reference	00H00934171

00H00934171-TRANSM. CONTROL THROTTLE

	P2R reference	64359
	Maker reference	00H00930091

REVETEMENT DE GRIP RIGHT OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00930091

	P2R reference	64020
	Maker reference	00G02102083

FRONT BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" GILERA 50 SMT-RCR 2006> -00G02102083-

	P2R reference	63900
	Maker reference	00F00902291

FRONT BRAKE LEVER- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2005 -00F00902291-

	P2R reference	64648
	Maker reference	00H02100191

FRONT BRAKE MASTER CYLINDER COVER "PIAGGIO GENUINE PART" GILERA 50 SMT-RCR 2006> -00H02100191-

	P2R reference	64651
	Maker reference	00H02100861

FRONT MASTER CYLINDER GASKET "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02100861

	P2R reference	63596
	Maker reference	000000310805

WASHER PLATE (8. 4X15. 8X1. 5) OEM PIAGGIO COMMON A LA RANGE-00000031080

	P2R reference	64349
	Maker reference	00H00915751

00H00915751 - FLEXIBLE DE FREIN AVANT

	P2R reference	70303
	Maker reference	867238

GASKET/WASHER HOSE OF BRAKE OEM PIAGGIO 50 DERBI 50 SENDA 2000 >/APRILIA RX, SX, RS, TUONO/GILERA 50 SMT, RCR-867238

	P2R reference	63587
	Maker reference	000000210805

NUT (M8) OEM PIAGGIO COMMON A LA RANGE-00000021080

	P2R reference	64692
	Maker reference	00H02305381

COMMODO/SWITCH OEM PIAGGIO 50 A BOX GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >/DERBI SENDA 2004 > 00H02305381

	P2R reference	64358
	Maker reference	00H00930071

REVETEMENT DE GRIP LEFT OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00930071

	P2R reference	63901
	Maker reference	00F00910291

LEVER D'EMBRAYAGE 50 A BOX OEM PIAGGIO 50 GILERA SMT, RCR 2003 > 2010/DERBI SENDA 2003 > 2010 (BLACK)-00F00910291

	P2R reference	151767
	Maker reference	2B005231

CABLE/CONTROL/TRANSMISSION CLUTCH OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-2B005231

	P2R reference	63902
	Maker reference	00F00920551

HOLLOW TENSIONER SCREW OF CABLE CLUTCH OEM 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2003 >/APRILIA RX, SX 2006-2013 (M6 L27MM)-00F00920551

	P2R reference	70130
	Maker reference	865599

865599-COUPLE MIRROR *

	P2R reference	63869
	Maker reference	00D00900531

ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531

	P2R reference	63869
	Maker reference	00D00900531

ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531

	P2R reference	63886
	Maker reference	00D02100901

CAVALIER/HALF CLAMP DE BRAKE MASTER CYLINDER FRONT OEM DERBI 50 SENDA 2000 > 2010 GILERA 50 SMT, RCR 20006 > 2010-00D02100901

	P2R reference	63646
	Maker reference	000040616005

00004061600-SCREW

	P2R reference	63870
	Maker reference	00D01000701

INTERRUPTEUR DE STOP OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006, RS 2006 > 2010-00D01000701

	P2R reference	63654
	Maker reference	000050107605

CAPUCHON DE CONTACTEUR DE STOP OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RX/SX-00005010760

	P2R reference	69958
	Maker reference	862494

862494 - R-TORNILLO RACORD HIDRAULICO

	P2R reference	64660
	Maker reference	00H02105611

GRIP D'EMBRAYAGE COMPLETE LEFT OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2003 < 2010-00H02105611

	P2R reference	72188
	Maker reference	AP8212529

CONTROL STARTER OEM PIAGGIO APRILIA 50 RALLY, RX, SX, GULLIVER, AMICO, SR/DERBI 50 SENDA 2008 > 2010-AP8212529

	P2R reference	69899
	Maker reference	861621

861621-SCREW 2, 5X9, 5

	P2R reference	69850
	Maker reference	861305

CABLE/CONTROL/TRANSMISSION DE STARTER OEM PIAGGIO APRILIA 50 SX, RX 2006 > 2010-861305
