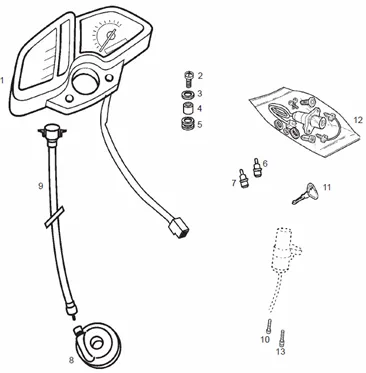

Vehicle Exploded View - DERBI SENDA R 50 SENDA R X-RACE 2007-2009 E2 3ver DERBI

Tables : 11 TABLEAU DE BORD
Tableau de bord
Search
864515 - TABLEAU DE BORD

1
P2R reference P2R reference 188431
Maker reference Maker reference 864515

864515 - TABLEAU DE BORD

More information

Quantity required : 1

00H01628521 - BOITIER TABLEAU BORD (MILE/H)

1
P2R reference P2R reference 188432
Maker reference Maker reference 00H01628521

00H01628521 - BOITIER TABLEAU BORD (MILE/H)

More information

Quantity required : 1

864515 - TABLEAU DE BORD

1
P2R reference P2R reference 188431
Maker reference Maker reference 864515

864515 - TABLEAU DE BORD

More information

Quantity required : 1

SCREW CRUCIFORME (5X80) OEM PIAGIO COMMON A LA RANGE-00012152000

2
P2R reference P2R reference 63703
Maker reference Maker reference 000121520005

SCREW CRUCIFORME (5X80) OEM PIAGIO COMMON A LA RANGE-00012152000

More information

Quantity required : 1

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

3
P2R reference P2R reference 69480
Maker reference Maker reference 847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

More information

Quantity required : 1

SPACER OEM PIAGGIO COMMON A LA RANGE-00H01600911

4
P2R reference P2R reference 64572
Maker reference Maker reference 00H01600911

SPACER OEM PIAGGIO COMMON A LA RANGE-00H01600911

More information

Quantity required : 1

RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021

5
P2R reference P2R reference 63881
Maker reference Maker reference 00D01500021

RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021

More information

Quantity required : 1

00G01602581 - R-PORTE-LAMPES

6
P2R reference P2R reference 64003
Maker reference Maker reference 00G01602581

00G01602581-R-DOOR-LAMPES

More information

Quantity required : 1

00G01601581 - R-PORTE-LAMPES

7
P2R reference P2R reference 64002
Maker reference Maker reference 00G01601581

00G01601581-R-DOOR-LAMPES

More information

Quantity required : 1

ENTRAINEUR DE INSTRUMENT CLUSTER (D12) OEM PIAGGIO 50 GILERA SMT 2006 > 2010, RCR 1998 > 2005/DERBI SENDA R 2000 > 2010 00G01606051

8
P2R reference P2R reference 64007
Maker reference Maker reference 00G01606051

ENTRAINEUR DE INSTRUMENT CLUSTER (D12) OEM PIAGGIO 50 GILERA SMT 2006 > 2010, RCR 1998 > 2005/DERBI SENDA R 2000 > 2010 00G01606051

More information

Quantity required : 1

CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER OEM PIAGGIO GILERA 50 RCR 2006 >-00H01616021

9
P2R reference P2R reference 64583
Maker reference Maker reference 00H01616021

CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER OEM PIAGGIO GILERA 50 RCR 2006 >-00H01616021

More information

Quantity required : 1

SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8150169

10
P2R reference P2R reference 71829
Maker reference Maker reference AP8150169

SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8150169

More information

Quantity required : 1

00H01801411 - CLEF

11
P2R reference P2R reference 187450
Maker reference Maker reference 00H01801411

00H01801411-CLEF

More information

Quantity required : 1

IGNITION SWITCH/LOCK COMPLETE OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2005 >-00H059082516

12
P2R reference P2R reference 65016
Maker reference Maker reference 00H059082515

IGNITION SWITCH/LOCK COMPLETE OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2005 >-00H059082516

More information

Quantity required : 1

SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-00H06300791

13
P2R reference P2R reference 65032
Maker reference Maker reference 00H06300791

SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-00H06300791

More information

Quantity required : 1
